Connector End View (C107) - CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Connector: C107

Description

CYLINDER HEAD TEMPERATURE (CHT) SENSOR

Color

Harness

12C508

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VE712 (BU-GY)	20	SENSOR - CYLINDER HEAD TEMPERATURE (CHT)
2	RE405 (GN-WH)	20	CTRL MOD. - POWERTRAIN # SIGNAL RETURN ENGINE (E-SIGRTN) (SIGRTN-A)

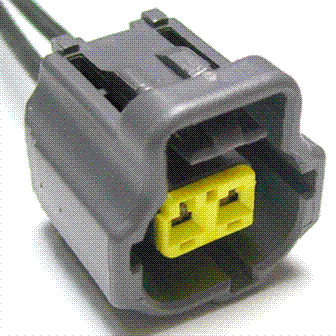

Available Pigtail Kits

Pigtail Kit Part Number

WPT-985

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-MDB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Lamp - Running Board

Lamp - Side Marker

Sensor - Cylinder Head Temperature
