Instrument Panel Cluster (IPC) Module

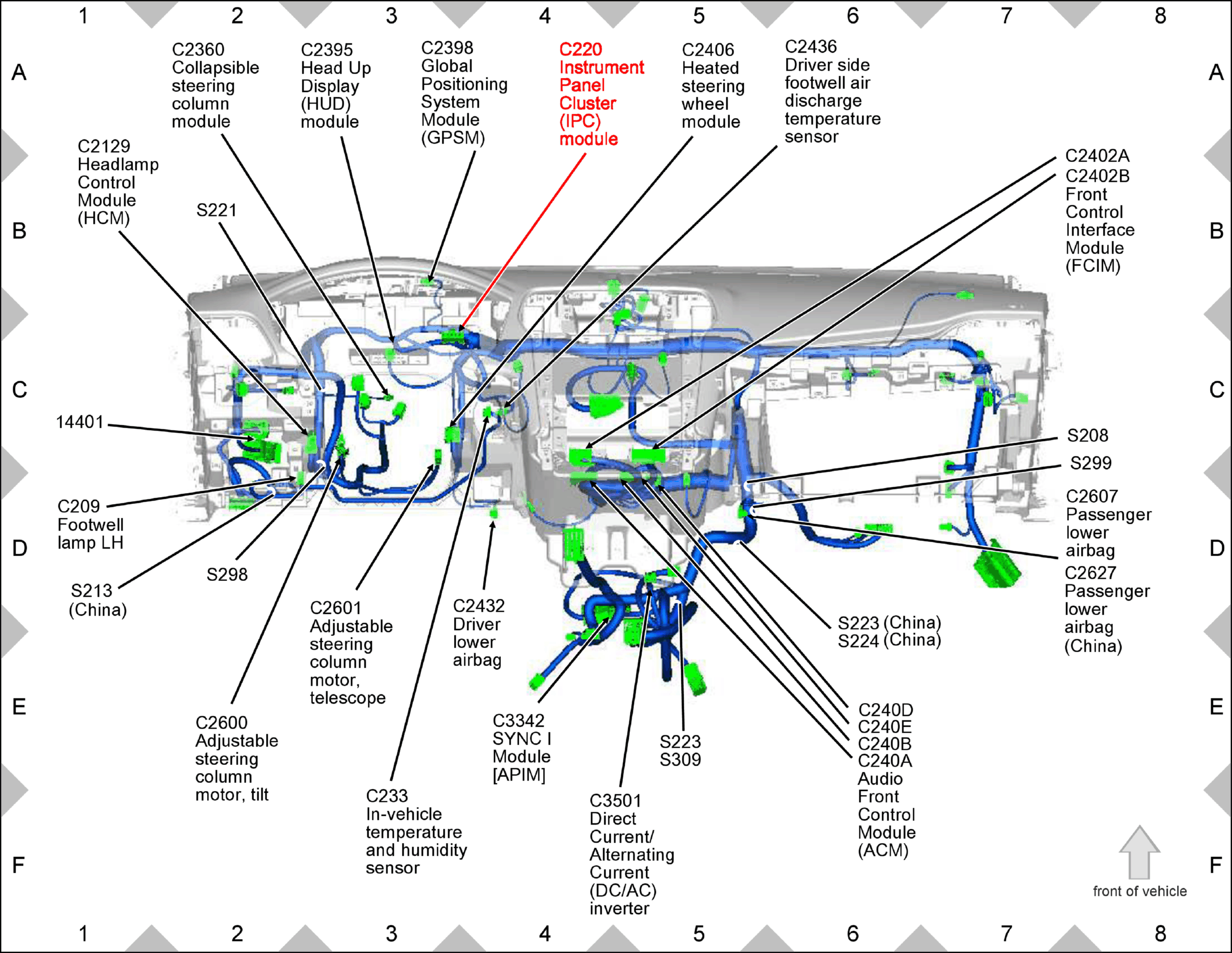

Fig 1: Instrument Panel Cluster (IPC) Module Components Location

GFDW78675

Courtesy of FORD MOTOR COMPANY
