Accessory Drive - Component Location

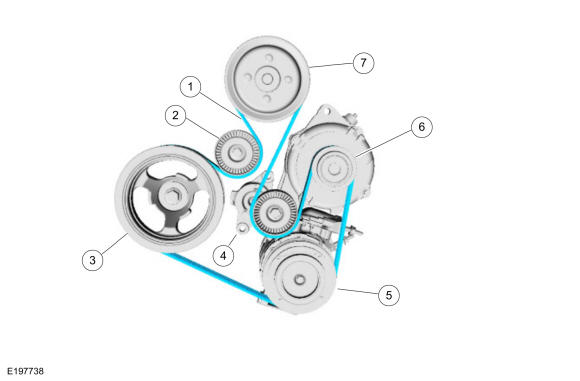

Fig 1: Accessory Drive Belt Routing

Courtesy of FORD MOTOR COMPANY

Item	Description
1	Accessory drive belt
2	Accessory drive belt idler pulley
3	Crankshaft belt pulley
4	Accessory drive belt tensioner
5	Pulley - A/C compressor
6	Generator pulley
7	Coolant pump pulley
