Seat Control Switch, Passenger Side (10 - Way)

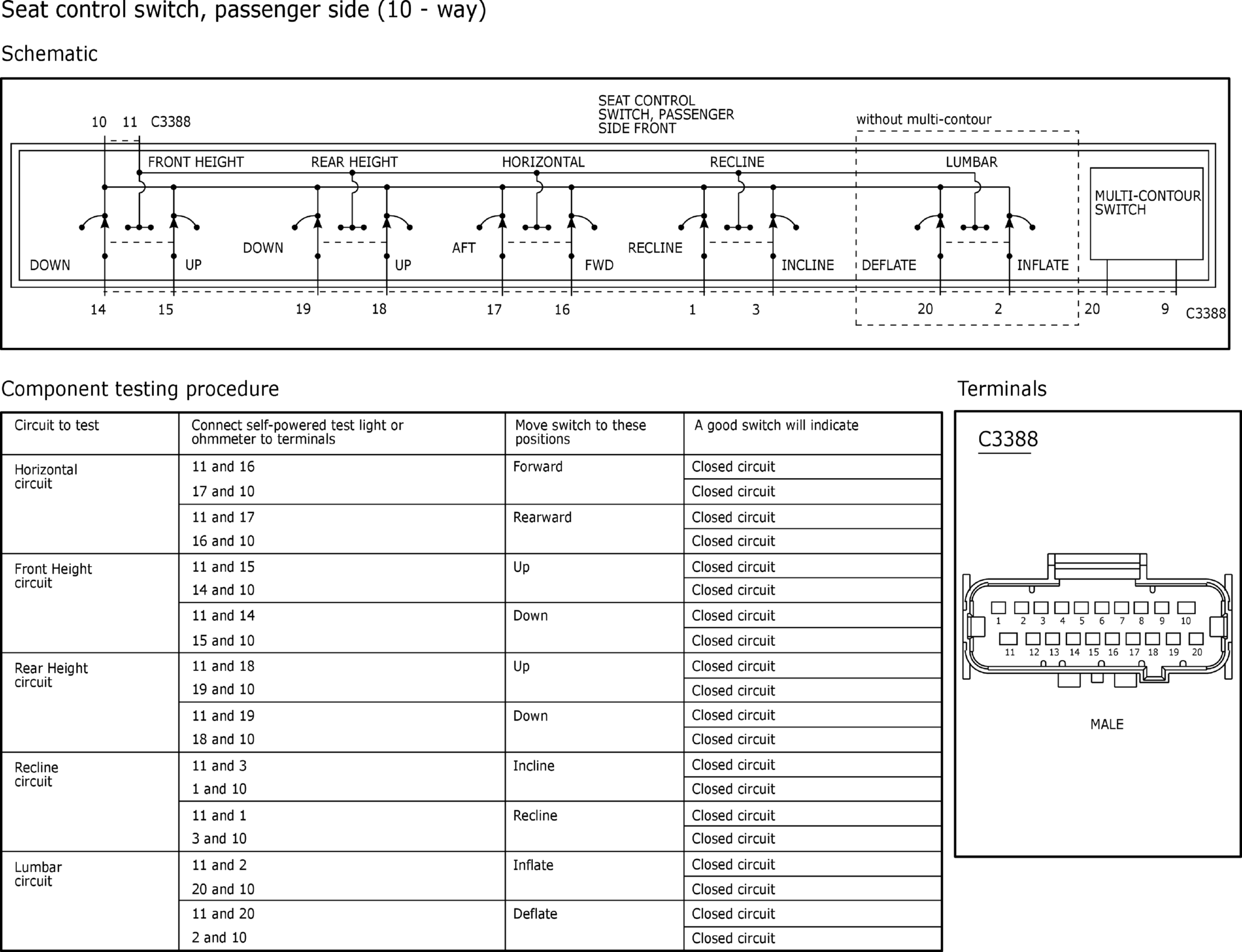

Fig 1: Seat Control Switch, Passenger Side (10 - Way)

GFDW80099

Courtesy of FORD MOTOR COMPANY
