Power Windows

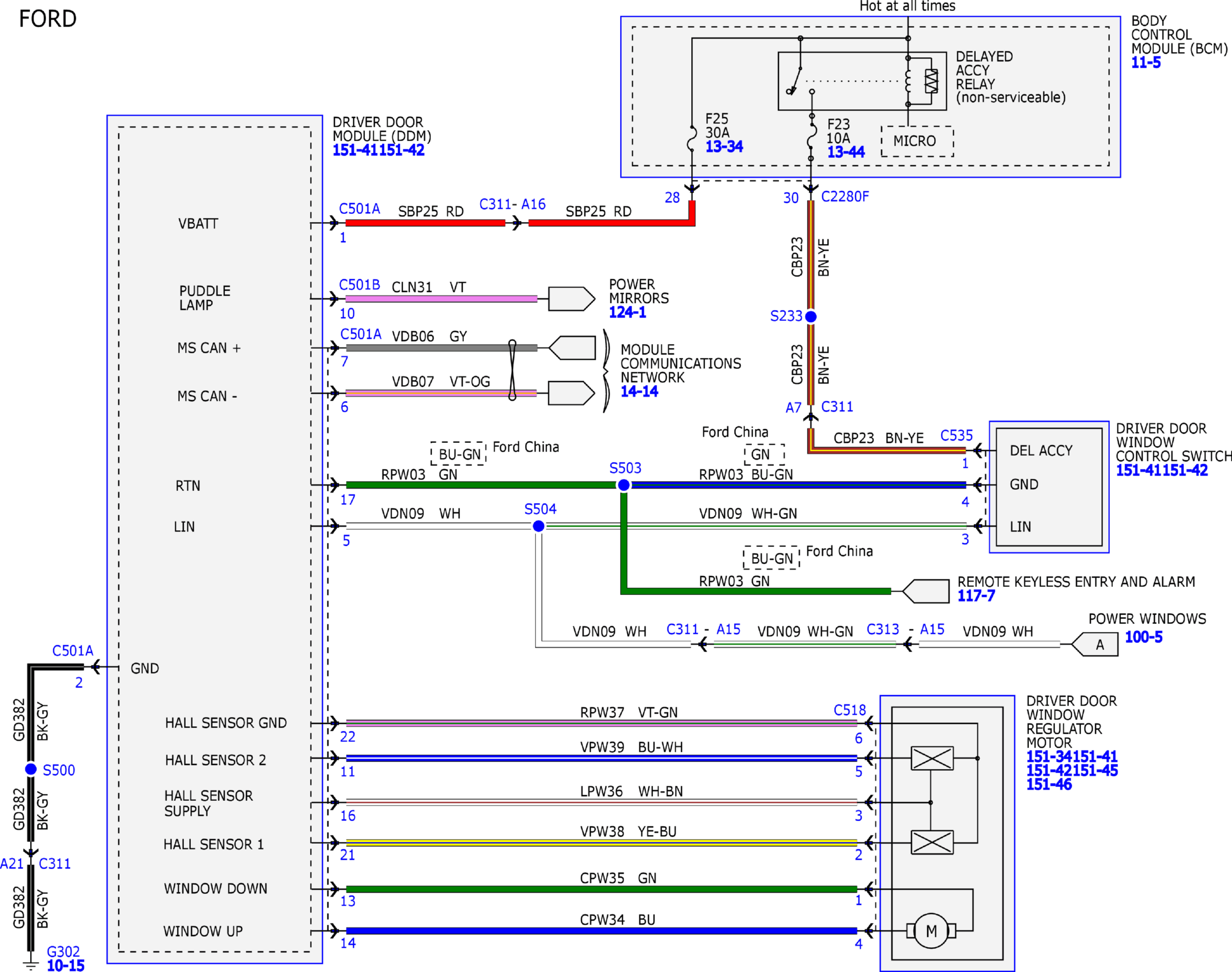

Fig 1: Power Windows Wiring Diagram (1 Of 4)
GFDW80007Courtesy of FORD MOTOR COMPANY

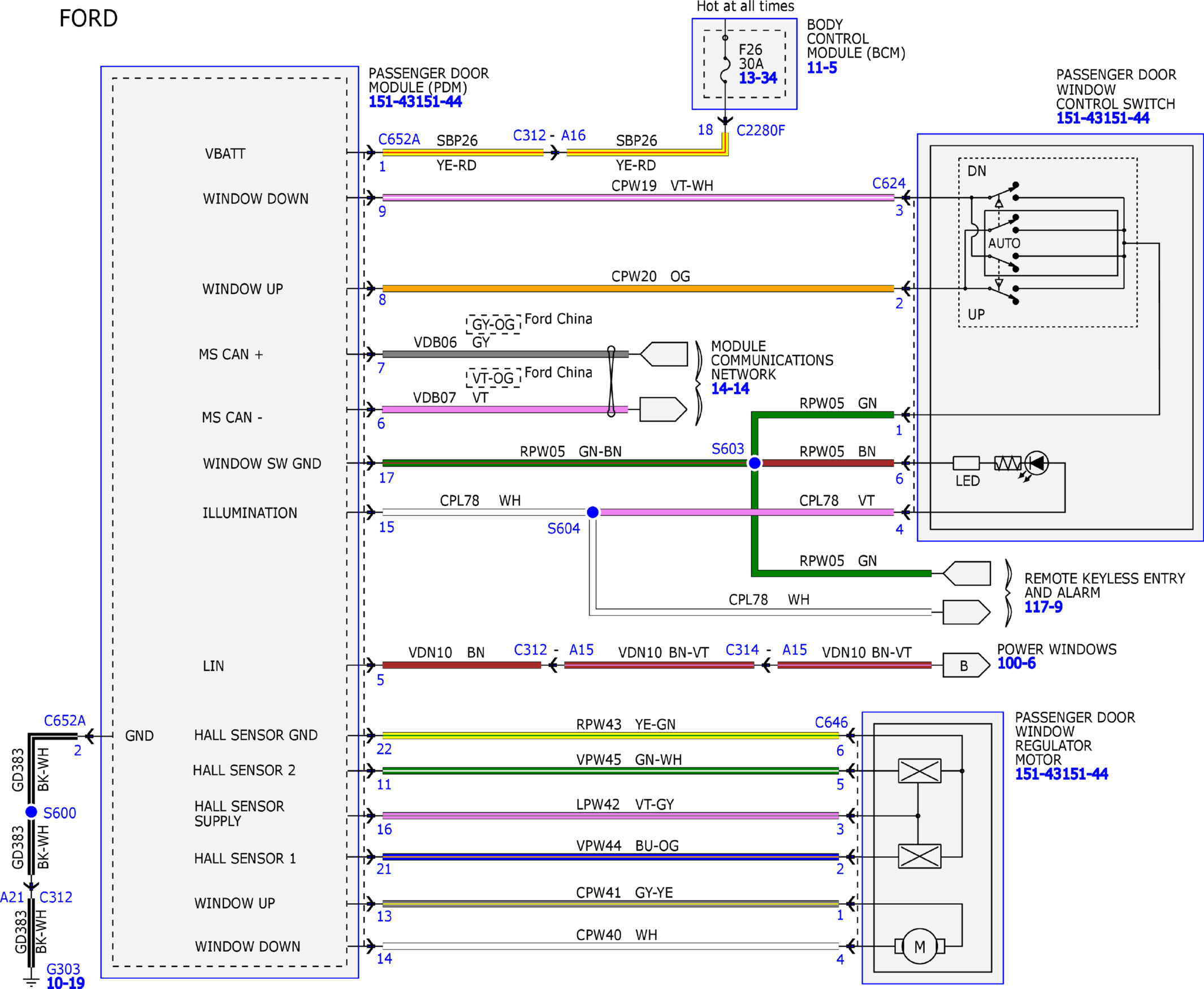

Fig 2: Power Windows Wiring Diagram (2 Of 4)
GFDW80009Courtesy of FORD MOTOR COMPANY

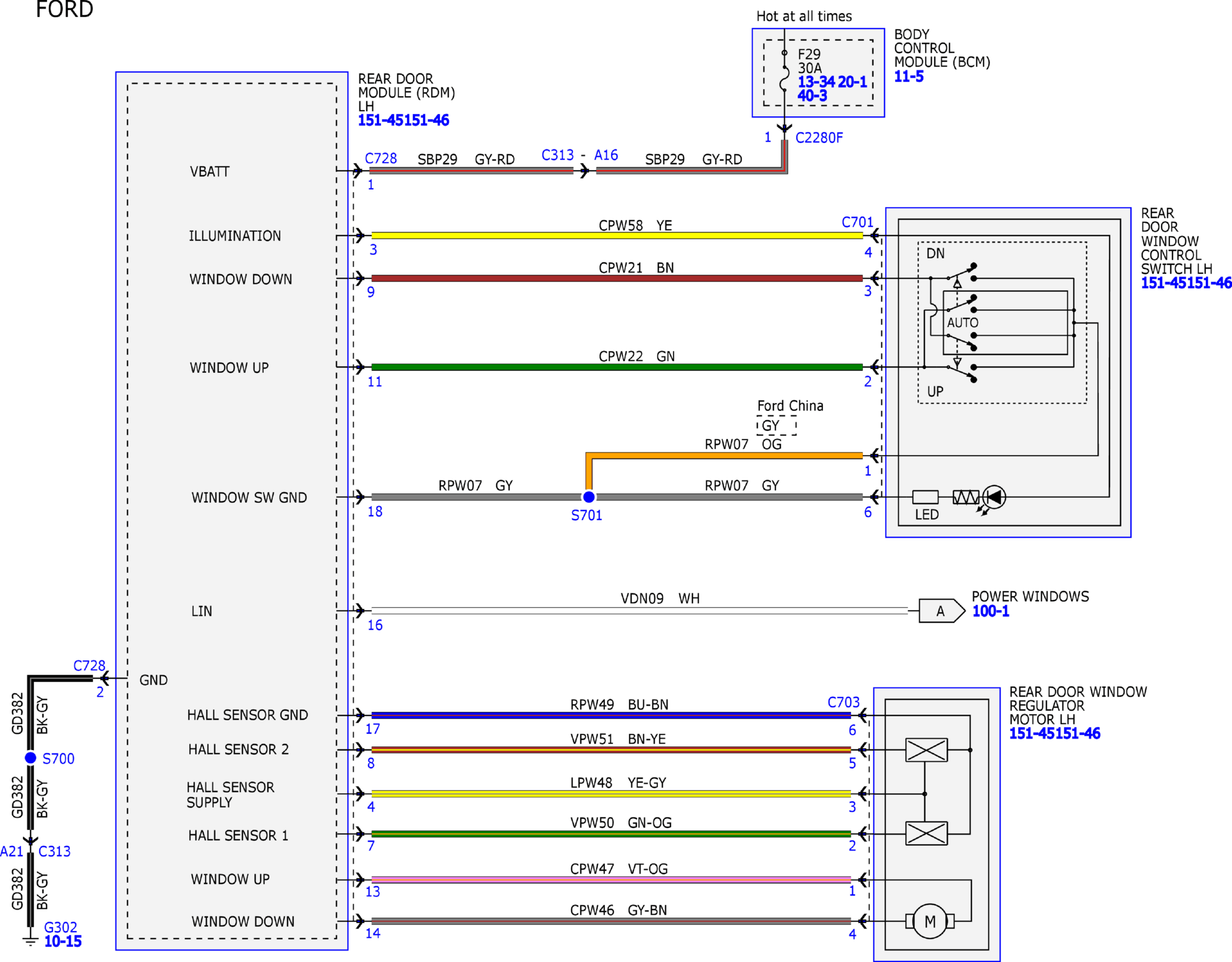

Fig 3: Power Windows Wiring Diagram (3 Of 4)
GFDW80011Courtesy of FORD MOTOR COMPANY

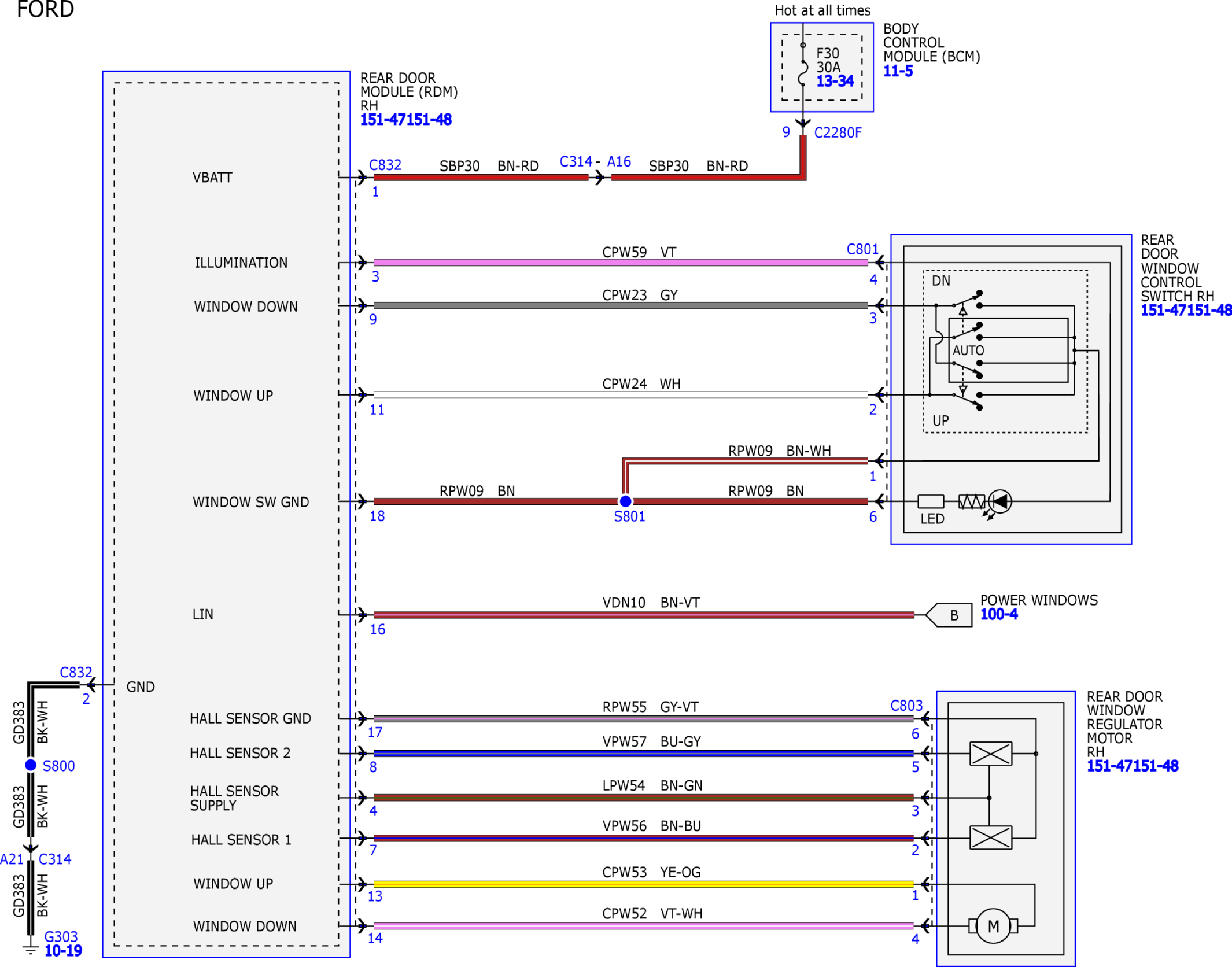

Fig 4: Power Windows Wiring Diagram (4 Of 4)
GFDW80012Courtesy of FORD MOTOR COMPANY
