Fuse And Relay Location

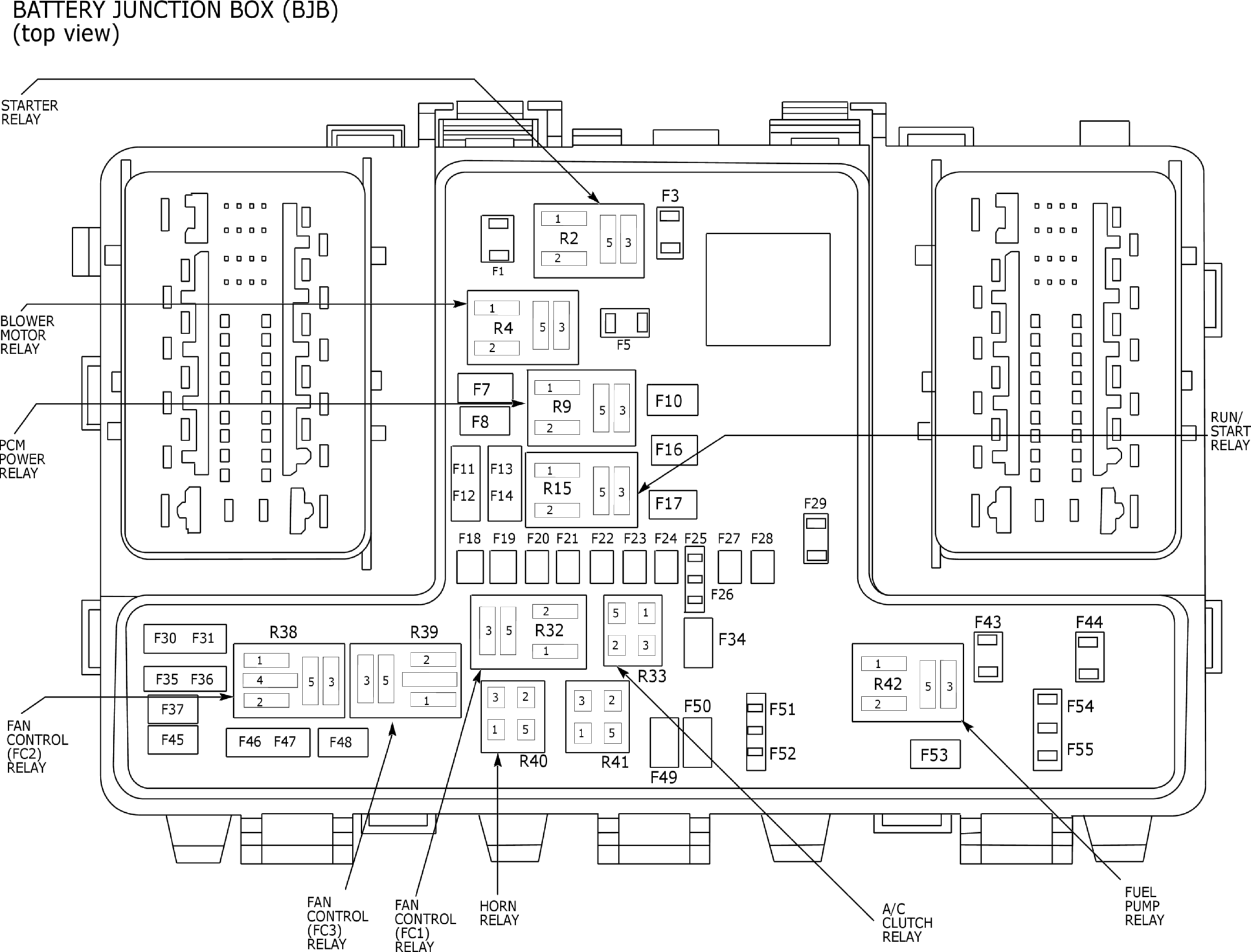

Fig 1: Battery Junction Box (Top View)
GFDW79629Courtesy of FORD MOTOR COMPANY

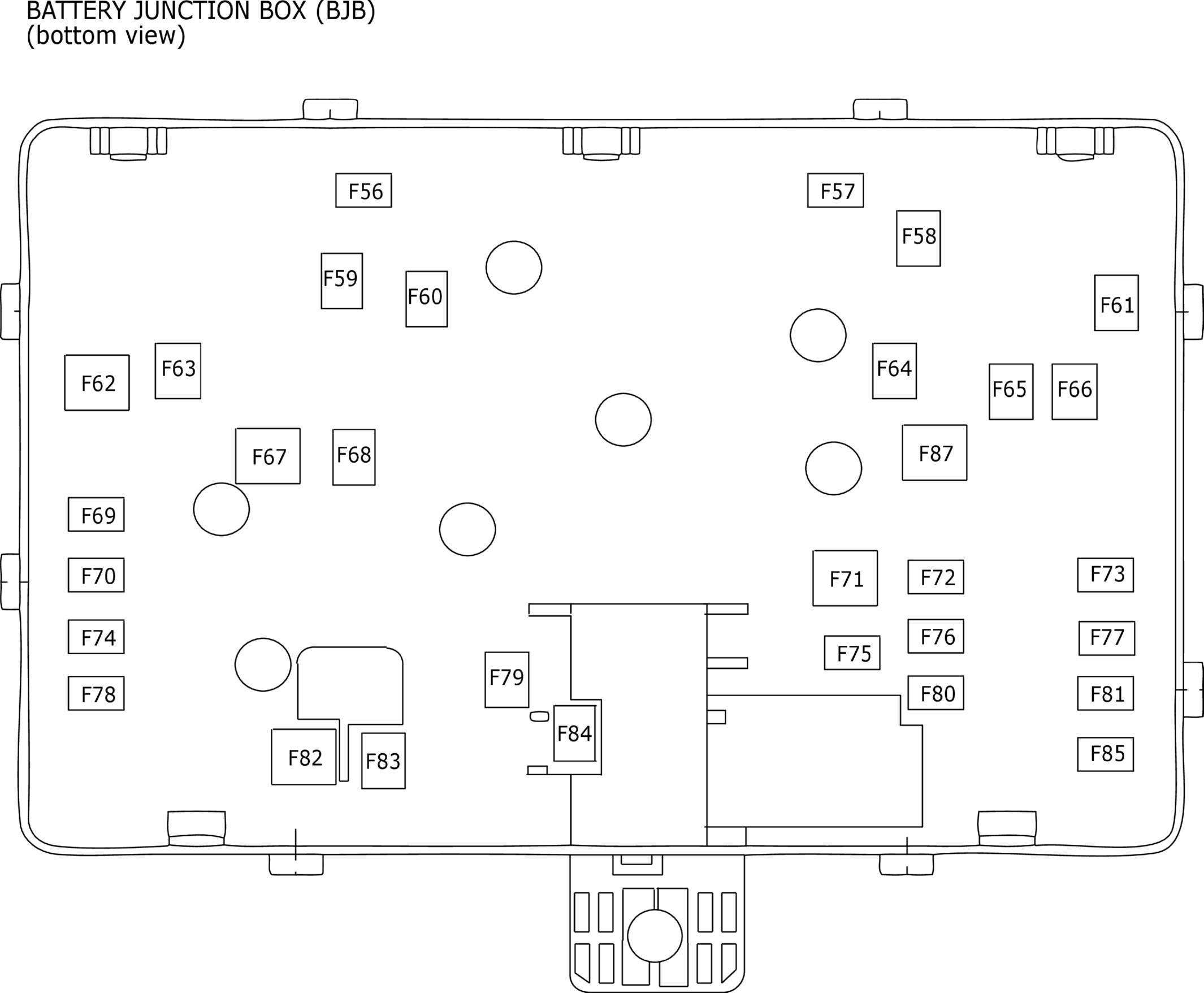

Fig 2: Battery Junction Box (Bottom View)
GFDW79630Courtesy of FORD MOTOR COMPANY

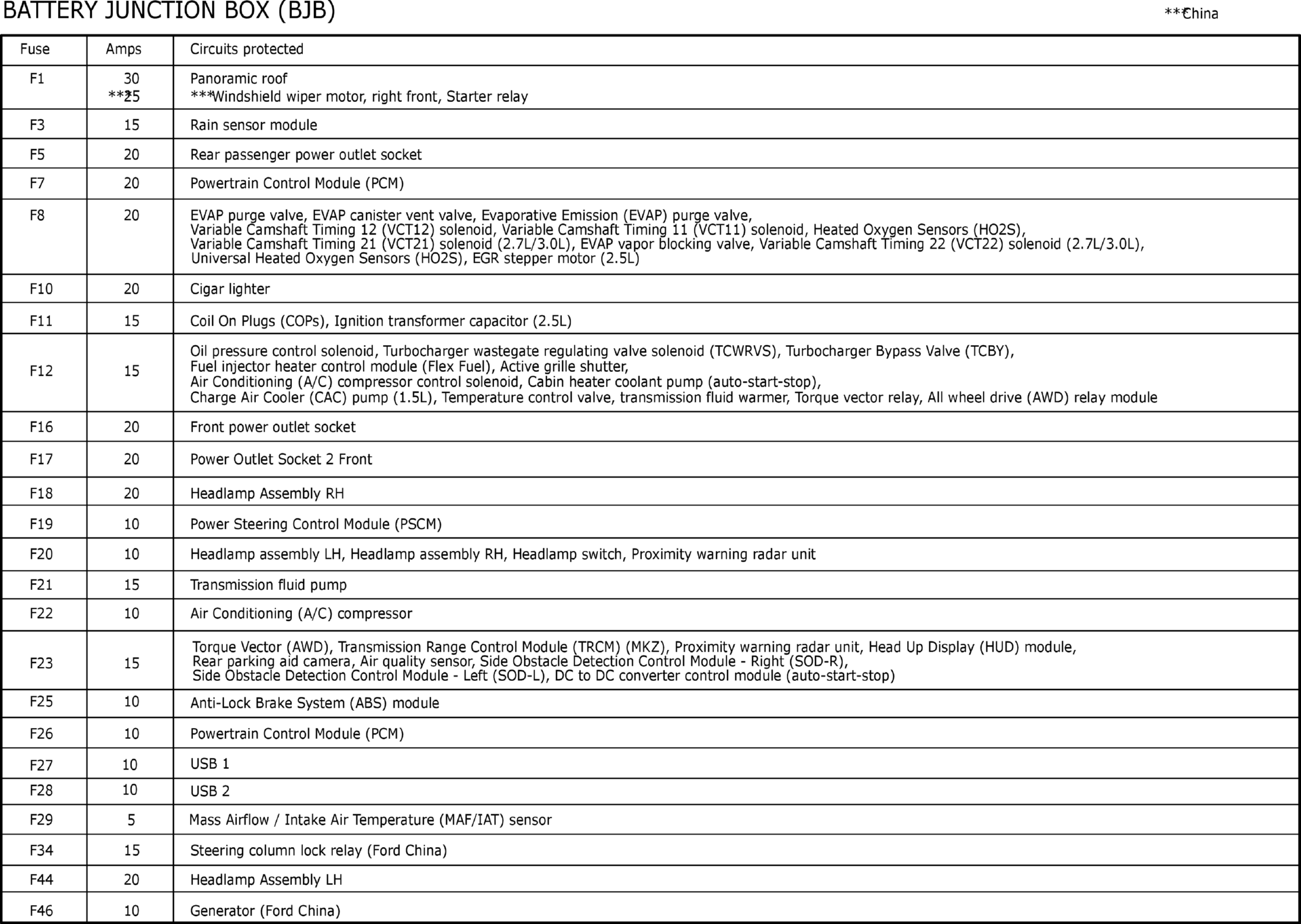

Fig 3: Battery Junction Box Fuse Component Location Legend (1 Of 3)
GFDW79631Courtesy of FORD MOTOR COMPANY

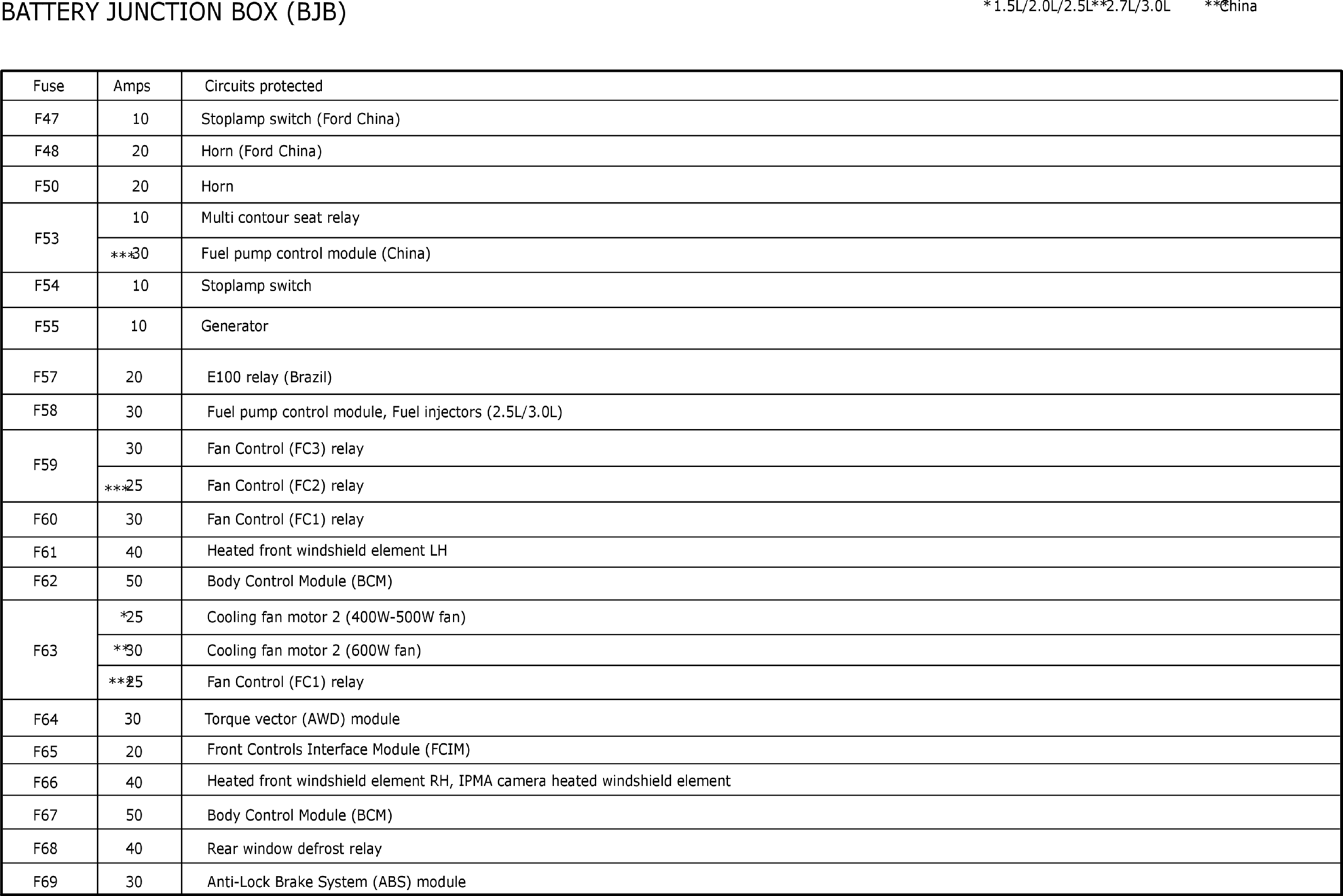

Fig 4: Battery Junction Box Fuse Component Location Legend (2 Of 3)
GFDW79632Courtesy of FORD MOTOR COMPANY

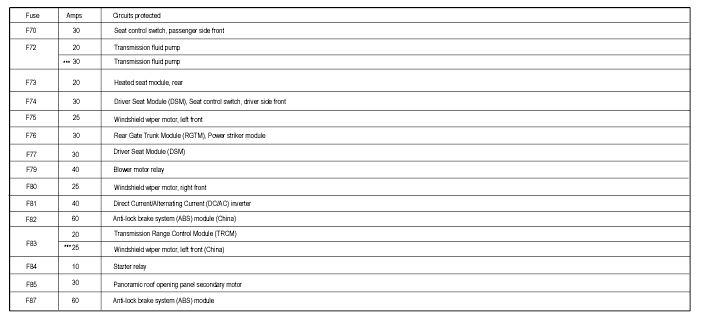

Fig 5: Battery Junction Box Fuse Component Location Legend (3 Of 3)
GFDW79633Courtesy of FORD MOTOR COMPANY

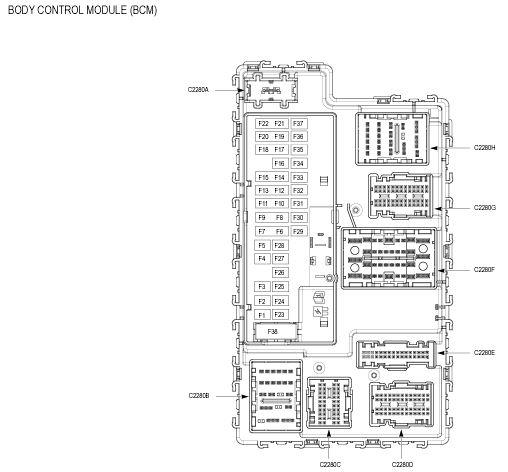

Fig 6: Body Control Module Component Location (BCM)
G00574570Courtesy of FORD MOTOR COMPANY

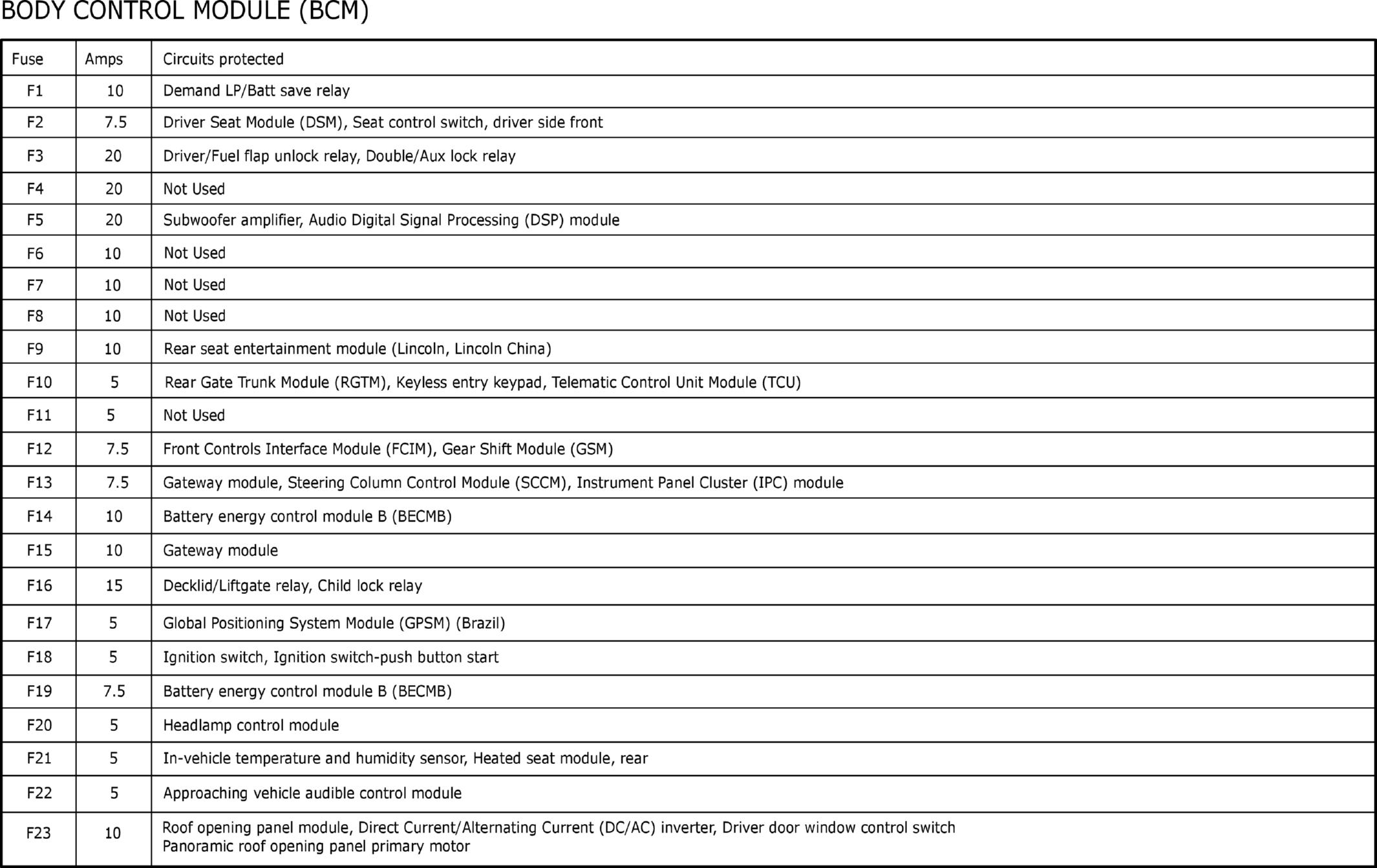

Fig 7: Body Control Module Component Location (BCM) (Legend) (1 Of 2)
GFDW79635Courtesy of FORD MOTOR COMPANY

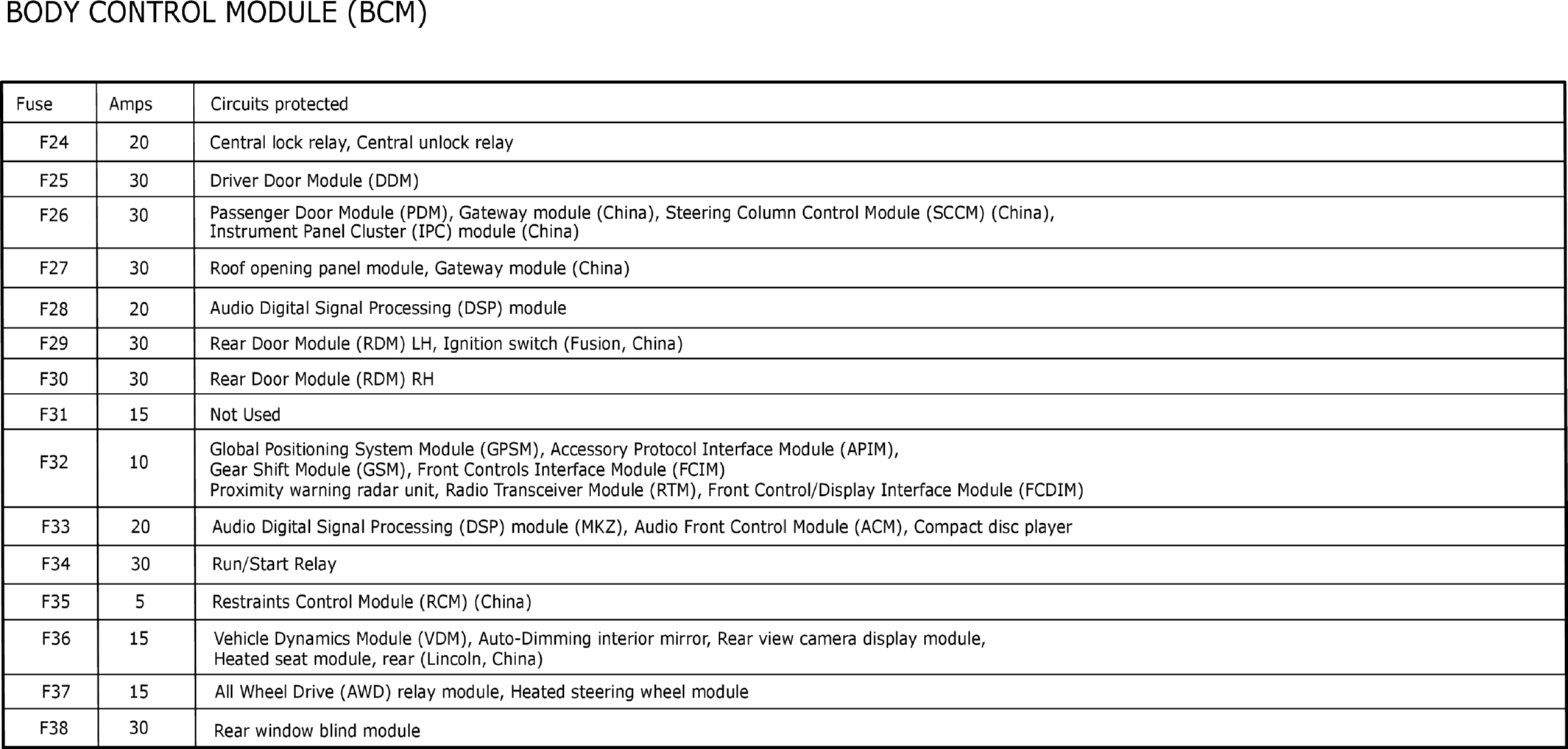

Fig 8: Body Control Module Component Location (BCM) (Legend) (2 Of 2)
GFDW79636Courtesy of FORD MOTOR COMPANY
