Connector End View (C1831) - TRANSFER CASE FLUID TEMPERATURE SENSOR

Connector: C1831

Description

TRANSFER CASE FLUID TEMPERATURE SENSOR

Color

Harness

14A280

Base Part #

#N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCF36 (YE-GN)	20	SENSOR - TRANSFER CASE TEMPERATURE (ECT) +
2	RCF36 (VT-BN)	20	SENSOR - TRANSFER CASE TEMPERATURE (ECT) -

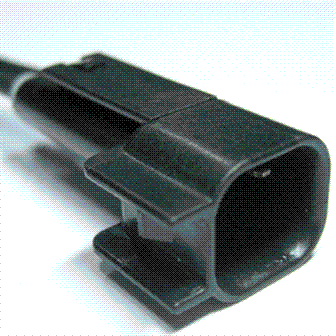

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1193

Courtesy of FORD MOTOR COMPANY

Service Part Number:

3U2Z-14S411-DCAB

Gauge:

Pin material:

Tin (greased)

Cavities:

Vehicle Uses

Element - Heated Seat

Lamp - CHMSL (Center High Mount Stop Lamp)

Lamp - Fog/Driving

Lamp - Side Marker (Rear Fender)

Mirror - Sideview

Sensor - Crash (Engine Compartment)

Speaker - Tweeter - LH - Front

Speaker - Tweeter - RH - Front
