Powertrain Control Module (Pcm) (2.7L)

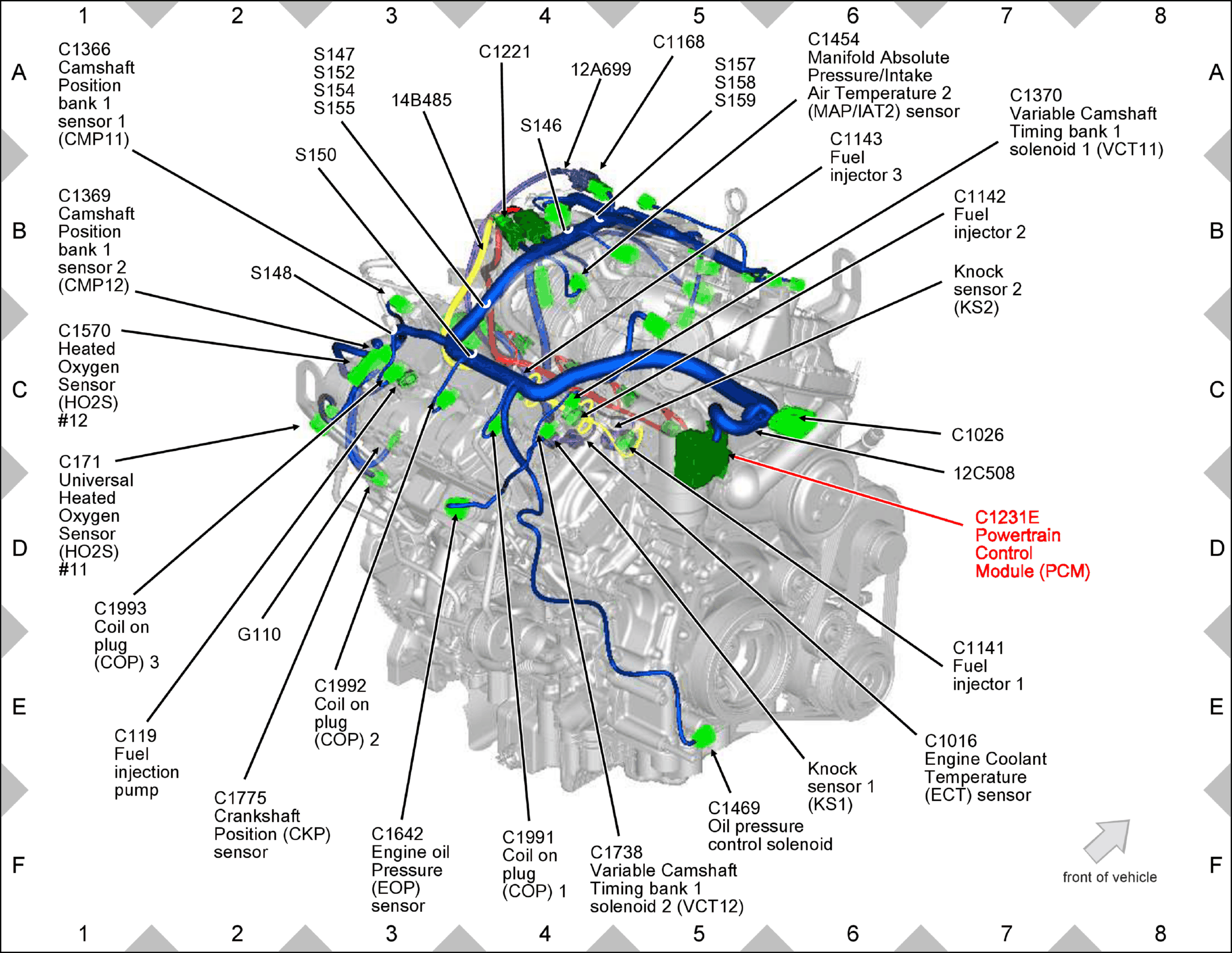

Fig 1: Powertrain Control Module (PCM) (2.7L) Components Location

GFDW78759

Courtesy of FORD MOTOR COMPANY
