Front Halfshaft RH: Installation

If equipped with AWD. Inspect inboard end of the halfshaft.

Courtesy of FORD MOTOR COMPANY
If equipped with FWD. Inspect the inboard end of the halfshaft.

Courtesy of FORD MOTOR COMPANY

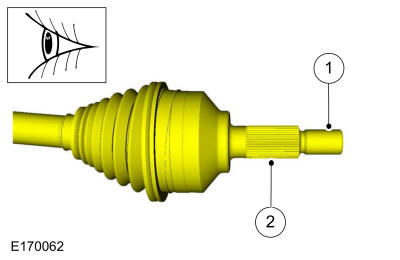

Inspect the outboard end of the halfshaft.

Courtesy of FORD MOTOR COMPANY
If equipped with Front Wheel Drive, install a new halfshaft seal. Refer to: Halfshaft Seal RH - FWD - 6F35 . Refer to: Halfshaft Seal RH - 6F50/6F55 .
If equipped with All Wheel Drive, install a new intermediate shaft seal. Refer to: Intermediate Shaft Seal - 6F35 . Refer to: Intermediate Shaft Seal - 6F50/6F55 .
NOTE: Do not fully install the shaft at this time.

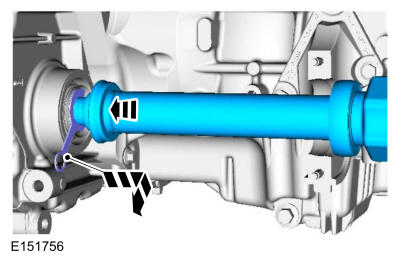

Insert the splines of the halfshaft through the halfshaft seal. Remove the seal protector.

Courtesy of FORD MOTOR COMPANY
NOTE: Insert the halfshaft until the intermediate shaft bearing is centered in the concave groove of the intermediate shaft bearing bracket.

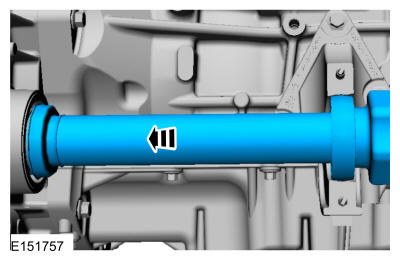

Install the halfshaft until the intermediate shaft bearing is centered in the intermediate shaft bearing support bracket.

Courtesy of FORD MOTOR COMPANY

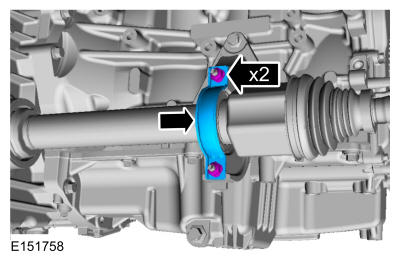

Install the new intermediate shaft bearing bracket and intermediate shaft bearing bracket nuts.
Torque:

Stage 1: Lower nut: 44 lb.in (5 Nm)

Stage 2: Upper nut: 18 lb.ft (25 Nm)

Stage 3: Lower nut: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Install the new halfshaft washer.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not install the halfshaft any deeper than the centerline of the bearing with the centerline of the bracket. Over-installation of the halfshaft and pulling the halfshaft back out to align the bearing in the bracket could damage the intermediate shaft seal.

Using the special tool, install the halfshaft outboard end through the wheel bearing and hub assembly.

Use Special Service Tool: 204-161 (T97P-1175-A) Installer, Halfshaft.

Courtesy of FORD MOTOR COMPANY

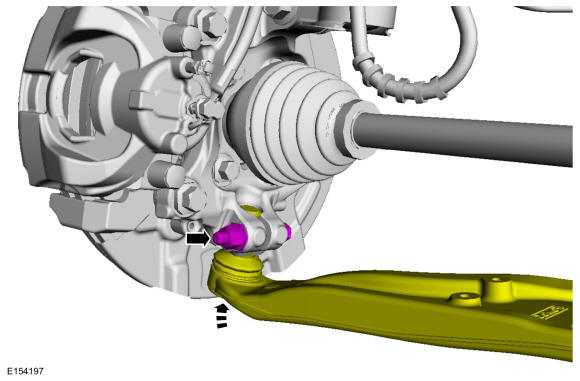

Install the lower ball joint into the wheel knuckle and install the new lower ball joint bolt and nut.
Torque: 76 lb.ft (103 Nm)

Courtesy of FORD MOTOR COMPANY
If equipped. Position the ride height sensor and install the ride height sensor bolt.
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

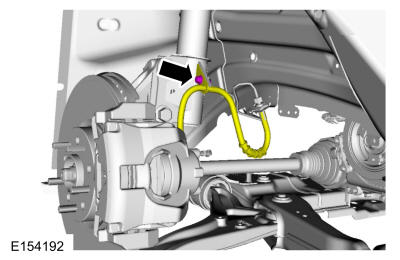

Install the flexible brake hose mounting bolt.
Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the front wheel hub nut with the vehicle on the ground. The nut must be tightened to specification before the vehicle is lowered onto the wheels. Wheel bearing damage will occur if the wheel bearing is loaded with the weight of the vehicle applied.

NOTE: Install and tighten the new wheel hub nut to specification in a continuous rotation. Always install a new wheel hub nut after loosening or when not tightened to specification in a continuous rotation or damage to the components may occur.

NOTE: Apply the brake to keep the halfshaft from rotating.

Have an assistant apply pressure to brake pedal and install the new halfshaft nut.

Torque: 148 lb.ft (200 Nm)

Courtesy of FORD MOTOR COMPANY
Check and top off the transmission fluid. Refer to: Transmission Fluid Level Check - 6F35 . Refer to: Transmission Fluid Level Check - 6F50 6F55 .
Install the powertrain underbody shield.

Courtesy of FORD MOTOR COMPANY
Install the wheel and tire. Refer to: Wheel and Tire .
If equipped with dynamic suspension, calibrate the suspension height sensor. Connect the scan tool and carry out the Ride Height Calibration routine. Follow the scan tool directions.
