Front Brake Disc: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the wheel and tire. Refer to: Wheel and Tire .

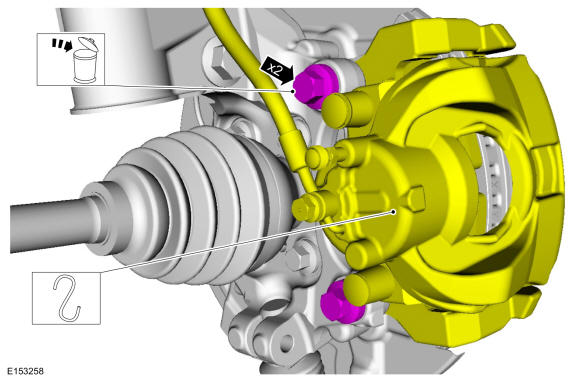

  2. NOTE: Do not allow the brake caliper and anchor plate assembly to hang from the brake hose or damage to the hose can occur.

    Remove the bolts and position the brake caliper and anchor plate aside. Discard the bolts.

    Torque: 111 lb.ft (150 Nm)

    GFD190471Courtesy of FORD MOTOR COMPANY

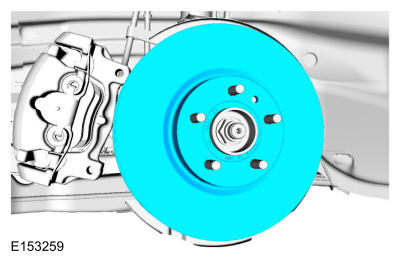

  3. Remove the brake disc.
    GFD190472Courtesy of FORD MOTOR COMPANY
