Rear Door Window Glass: Removal

NOTE: LH side displayed, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door trim panel. Refer to: Rear Door Trim Panel .
Remove the rear door upper moulding. Refer to: Rear Door Upper Moulding .

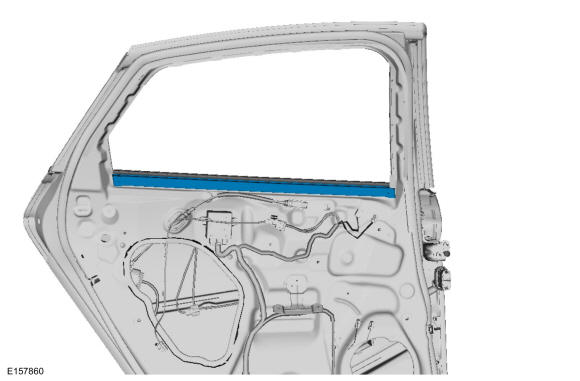

Remove inner belt moulding.

Courtesy of FORD MOTOR COMPANY

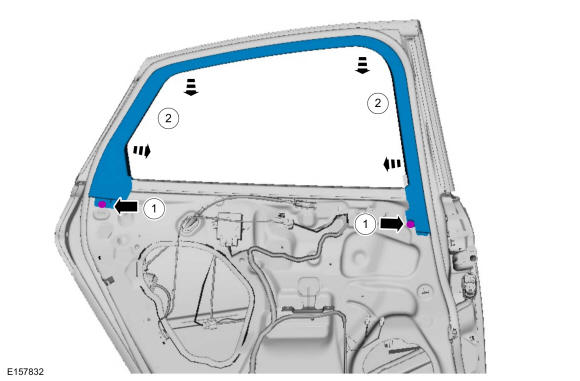

Remove the rear door upper trim.
1. Remove the retainers from the rear door upper trim.
2. Remove the rear door upper trim.
Courtesy of FORD MOTOR COMPANY

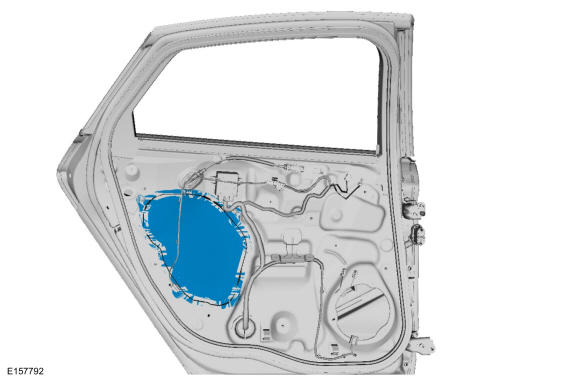

Remove the rear door watershield.

Courtesy of FORD MOTOR COMPANY

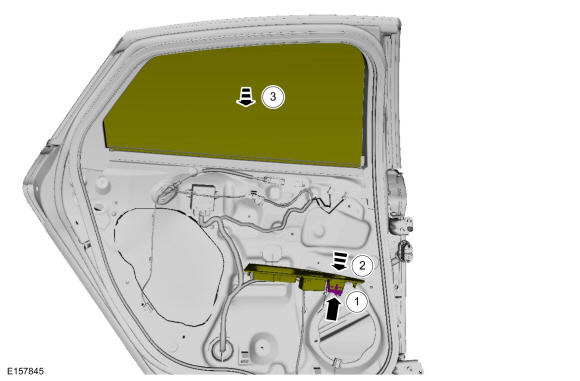

Lower the window glass to the full down position.
1. Install the rear window control switch.
2. Position the rear window control switch assembly.
3. Lower the window glass to the full down position.
Courtesy of FORD MOTOR COMPANY

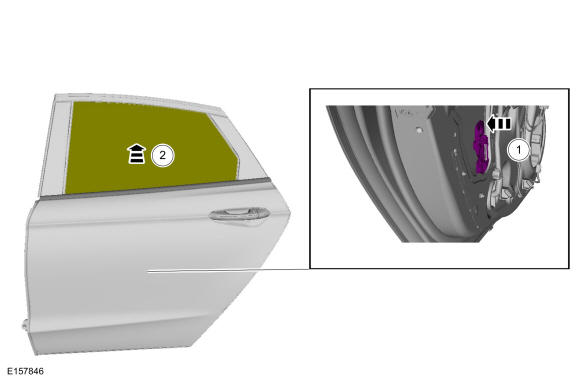

Raise the window glass to the full up position.
1. Release the rear door window clip.
2. Raise the window glass to the full up position.
Courtesy of FORD MOTOR COMPANY
Remove the rear door window glass.

Courtesy of FORD MOTOR COMPANY
