Rear Door Glass Top Run: Removal

NOTE: LH side displayed, RH side similar.

NOTE: Removal steps in this procedure may contain installation details.

Remove the rear door window glass. Refer to: Rear Door Window Glass .

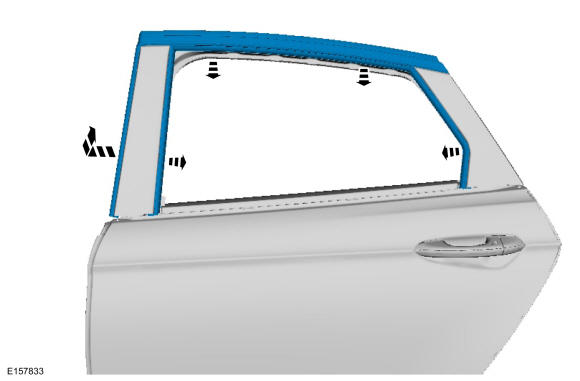

Remove the rear door upper trim.
1. Remove the retainers from the rear door upper trim.
2. Remove the rear door upper trim.
Courtesy of FORD MOTOR COMPANY

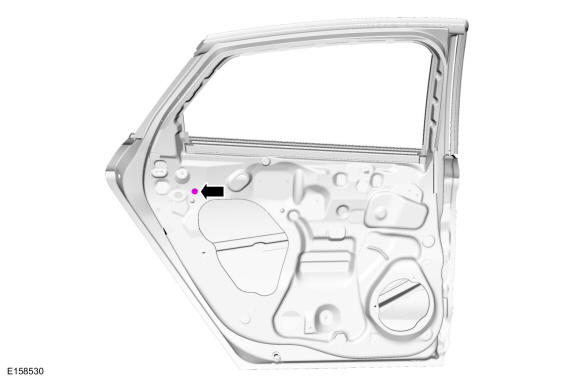

Remove the bolt.
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the rear door glass top run.

Courtesy of FORD MOTOR COMPANY
