Front Door Window Glass: Removal

NOTE: LH side displayed, RH side similar.
  1. Remove the front door trim panel. Refer to: Front Door Trim Panel .
  2. Remove the front door speaker.

    Refer to: Front Door Speaker - Vehicles With: Sony Audio System .

    Refer to: Front Door Speaker - Vehicles With: SYNC 3/Touchscreen Display .

    Refer to: Front Door Speaker - Vehicles With: SYNC .

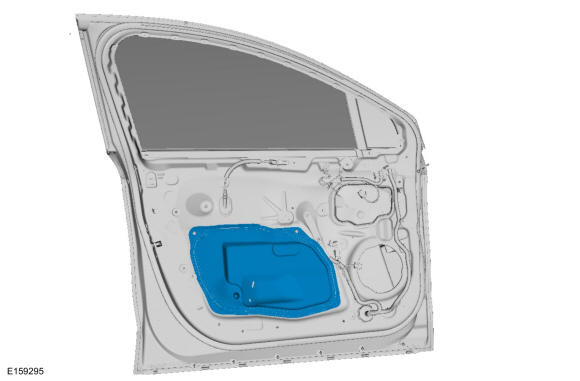

  3. Remove the front door watershield.
    GFD196450Courtesy of FORD MOTOR COMPANY

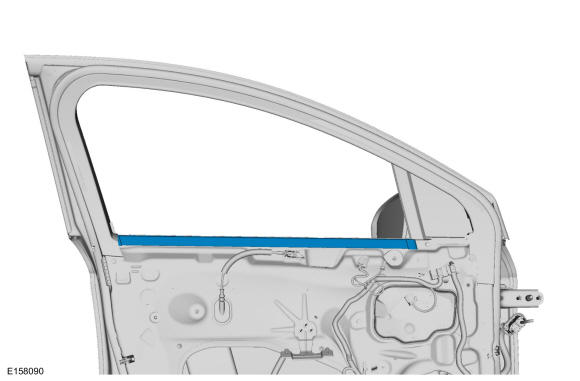

  4. Remove the inner belt moulding.
    GFD196451Courtesy of FORD MOTOR COMPANY

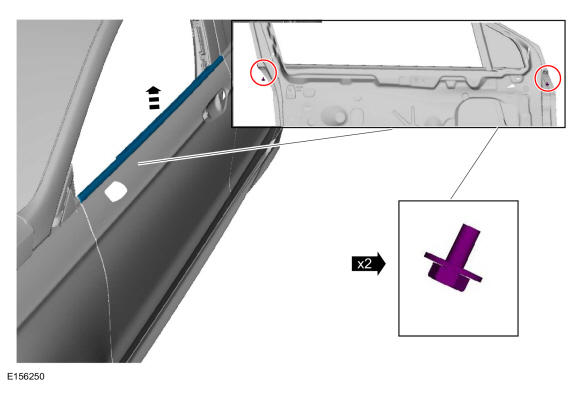

  5. Remove the bolt and front door window glass weatherstrip.
    GFD196252Courtesy of FORD MOTOR COMPANY

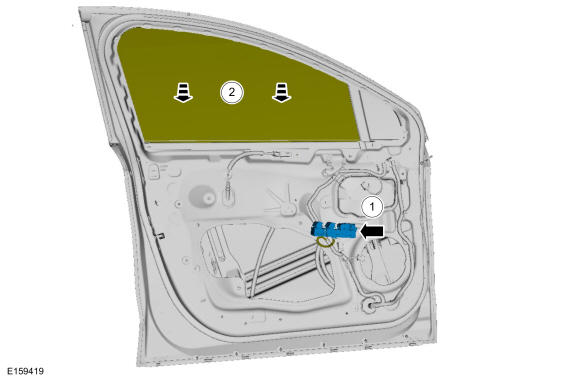

  6. Lower the front door window glass.

    1. Install the front door window control switch.
    2. lower the glass to 2/3 down position.

    GFD196452Courtesy of FORD MOTOR COMPANY

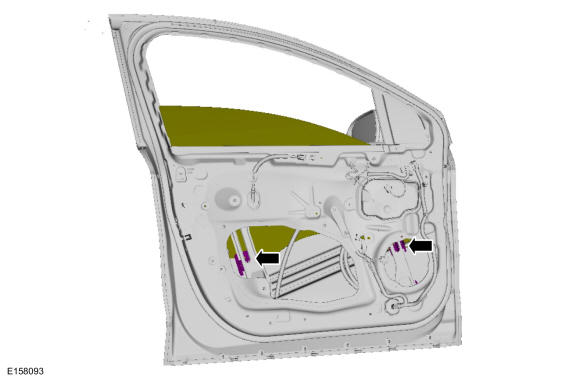

  7. Release the retaining clips from front door window glass.
    GFD196453Courtesy of FORD MOTOR COMPANY

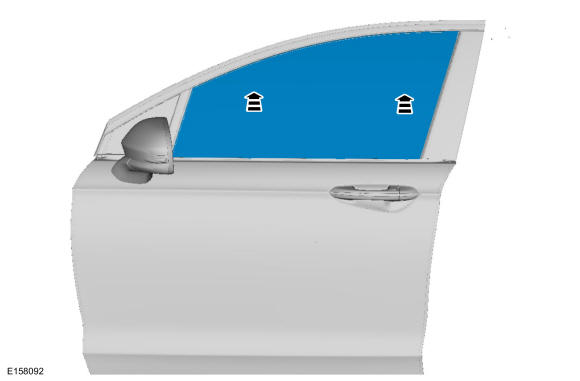

  8. Remove the front door window glass.
    GFD196454Courtesy of FORD MOTOR COMPANY
