Front Door Fixed Window Glass: Removal

  1. Refer to: Front Door Glass Top Run .

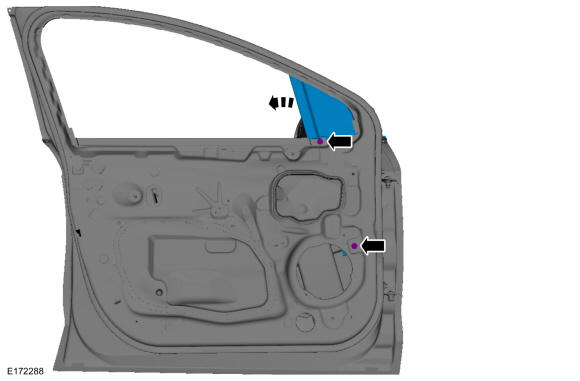

  2. Remove the retainers and front door fixed window glass.
    GFD196480Courtesy of FORD MOTOR COMPANY
  3. NOTE: This step is only necessary when installing a new component.

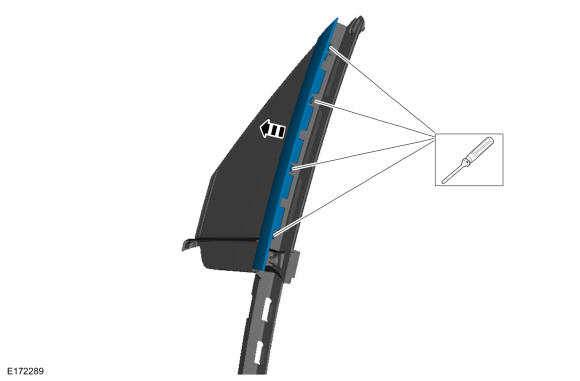

    Using a flat bladed screwdriver, gently compress the snap tabs from top to bottom, while applying outward pressure on the division bar cap.

    GFD196481Courtesy of FORD MOTOR COMPANY
