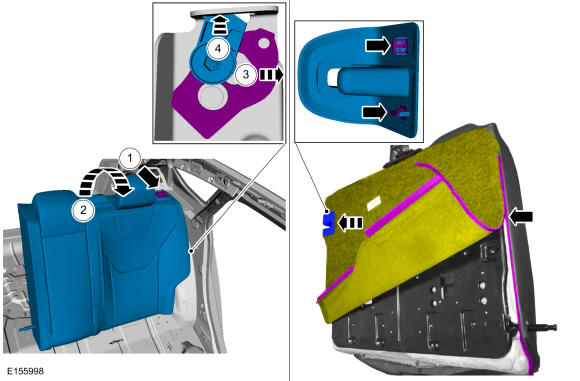

Rear Seat Backrest Latch: Removal

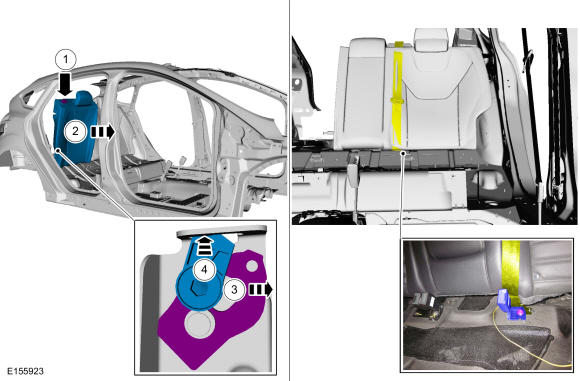

1. Remove the bolt and position the rear center safety belt aside. Lift the rear seat latch release handle.

   Torque: 35 lb.ft (48 Nm)

2. Lower the rear seat backrest.
3. Rotate the backrest hinge locking arm to release the backrest.
4. Remove the seat backrest.

Courtesy of FORD MOTOR COMPANY

1. Lift the rear seat latch release handle.

   Torque: 35 lb.ft (48 Nm)

2. Lower the rear seat backrest. Remove the backrest latch bezel. Unzip the backrest cover and release the backrest cover J-clips.
3. Rotate the backrest hinge locking arm to release the backrest.
4. Remove the seat backrest.

Courtesy of FORD MOTOR COMPANY

1. Remove the screw.

   Torque: 44 lb.in (5 Nm)

2. Remove the seat latch bezel.
3. Position aside the backrest cover foam.

Courtesy of FORD MOTOR COMPANY

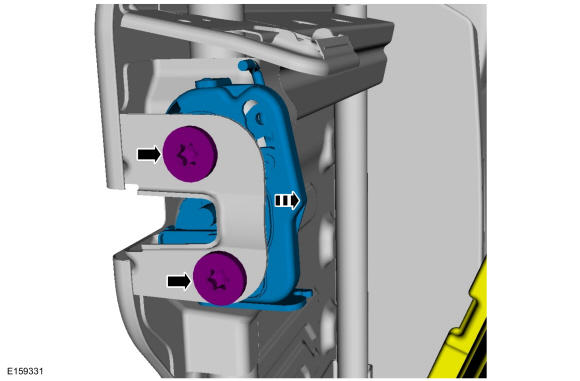

Torque: 18 lb.ft (24 Nm)
