Rear Head Restraint Guide Sleeve: Removal

NOTE: 60 percent seat displayed, 40 percent seat similar.

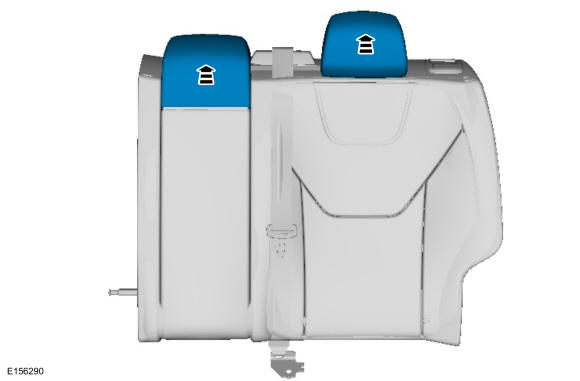

  1. Remove the head restraints.
    GFD196435Courtesy of FORD MOTOR COMPANY

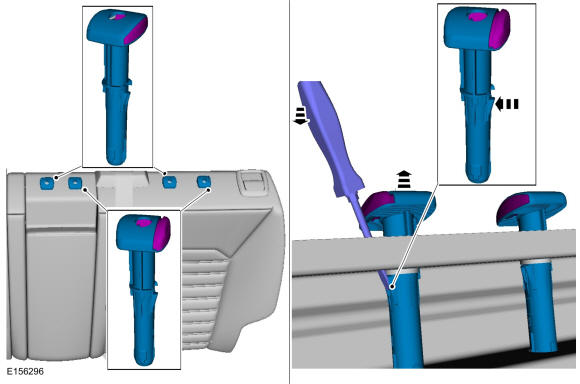

  2. NOTE: Backrest trim cover removed for clarity.

    Release the locking tabs and remove the rear head restraint guide sleeves.

    Use the General Equipment: Flat Headed Screw Driver

GFD196436Courtesy of FORD MOTOR COMPANY
