Front Bumper Cover: Disassembly

NOTE: Removal steps in this procedure may contain installation details.
  1. Remove the front bumper cover. Refer to: Front Bumper Cover .
  2. Remove the front fog lamps. Refer to: Front Fog Lamp .
  3. Remove the front parking aid sensors, active park assist sensors and associated wiring.

    Refer to: Front Parking Aid Sensor .

    Refer to: Front Active Park Assist Sensors .

  4. On each side.

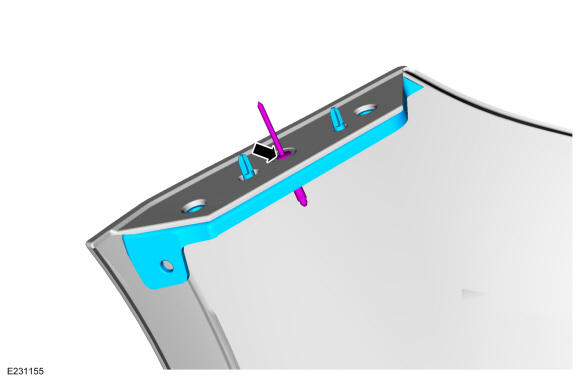

    Remove the rivet and the front bumper cover-to-fender bracket.

    GFD196682Courtesy of FORD MOTOR COMPANY

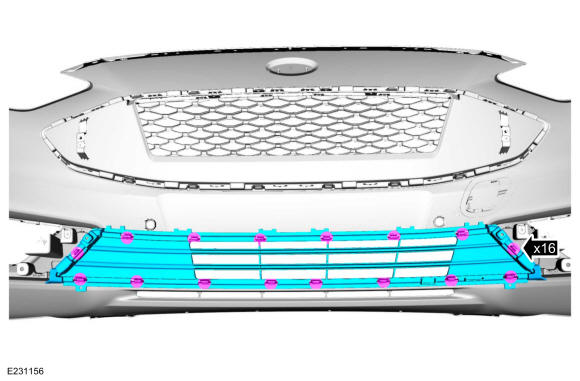

  5. Release the tabs and remove the lower radiator grille.
    GFD196683Courtesy of FORD MOTOR COMPANY

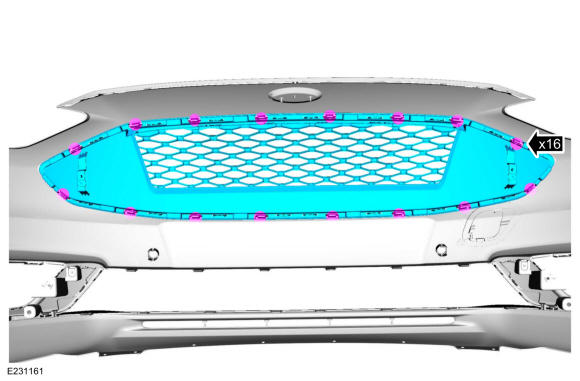

  6. Release the tabs and remove the upper radiator grille.
    GFD196684Courtesy of FORD MOTOR COMPANY
  7. Release the tabs and remove the fog lamp bezels.
    GFD196685Courtesy of FORD MOTOR COMPANY
  8. Remove the nuts and the emblem.
    GFD196686Courtesy of FORD MOTOR COMPANY
