Wheel Studs: Removal

  1. Remove the wheel bearing and wheel hub.

    Refer to: Wheel Bearing and Wheel Hub - FWD .

    Refer to: Wheel Bearing and Wheel Hub - AWD .

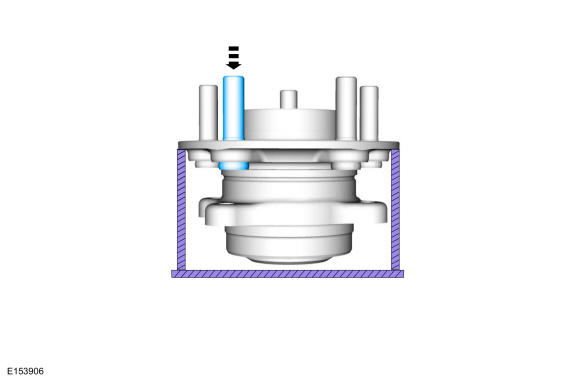

  2. Press the wheel stud from the wheel bearing and wheel hub flange.

    Use the General Equipment: Hydraulic Press

    GFD190272Courtesy of FORD MOTOR COMPANY

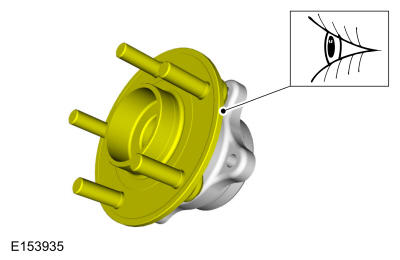

  3. Visual check. Inspect the wheel bearing and wheel hub flange for corrosion or damage. Replace as necessary.
    GFD190273Courtesy of FORD MOTOR COMPANY
