Wheel Studs: Installation

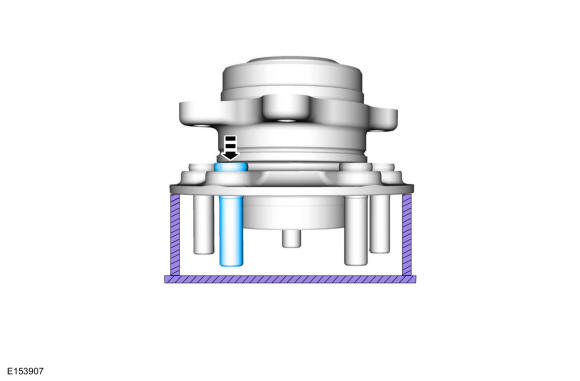

  1. Press the wheel stud into the wheel bearing and wheel hub flange until fully seated.

    Use the General Equipment: Hydraulic Press

    GFD190274Courtesy of FORD MOTOR COMPANY
  2. Install the wheel bearing and wheel hub.

    Refer to: Wheel Bearing and Wheel Hub - FWD .

    Refer to: Wheel Bearing and Wheel Hub - AWD .
