Rear Stabilizer Bar: Installation

Press the rear stabilizer bar brackets in place onto the rear stabilizer bar bushings.

Courtesy of FORD MOTOR COMPANY

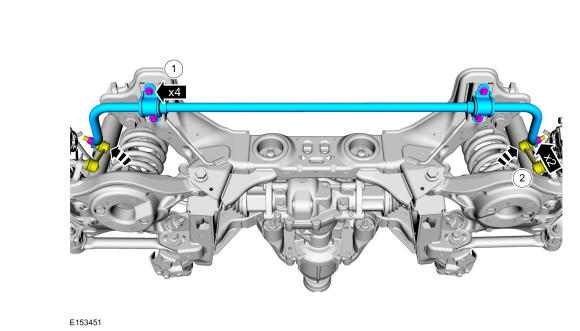

1. Position the rear stabilizer bar and install the new rear stabilizer bar bracket bolts.

   Torque: 52 lb.ft (70 Nm)

2. Position the rear stabilizer bar links and install the new rear stabilizer bar link nuts.

   Torque: 76 lb.ft (103 Nm)

   Courtesy of FORD MOTOR COMPANY
