Engine - Plug-In Hybrid Electric Vehicle (PHEV)
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| 100-001 (T50T-100-A) Slide Hammer | |
|---|---|
| 205-241 (T86P-3514-A) Remover, Halfshaft T86P-1000-S TKIT-1986-F TKIT-2009TC-F | |
| 205-290 (T89P-3415-B) Remover, Halfshaft (Plate) TKIT-1989-FLM TKIT-1989-LM | |
| 300-OTC1585AE Powertrain Lift | |
| 300-OTC1819E2, 200# Floor Crane, Fold Away | |
| Strap Wrench | |
| Oil Drain Equipment | |
| Hose Clamp Remover/Installer | |
| Fluid Container |
-
WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
-
- Refer to: Fuel System Pressure Release .
- Refer to: Battery Disconnect and Connect
- Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging - Vehicles With: R134A Refrigerant .
- Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Cooling System Draining, Filling and Bleeding .
- Remove the following items:
- Refer to: Degas Bottle .
- Refer to: Air Cleaner Outlet Pipe .
- Refer to: Air Cleaner .
- Refer to: Transmission Control Module (TCM) .
-

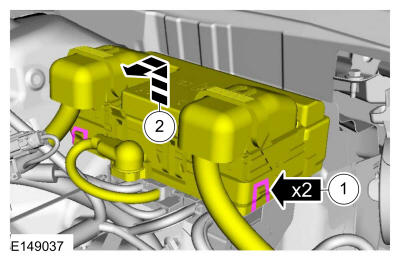

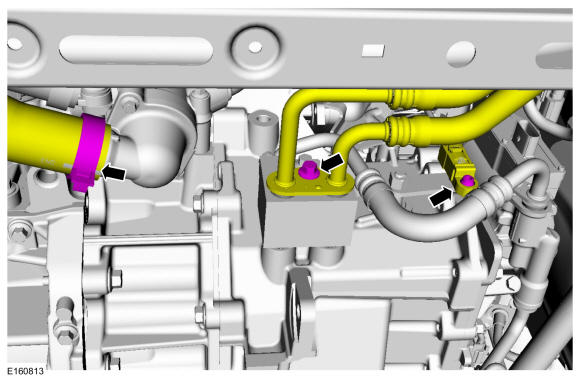

NOTE: Note the position of the coolant hoses for installation.

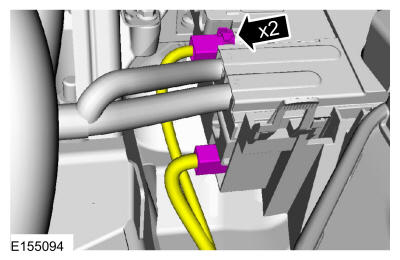

Use the General Equipment: Hose Clamp Remover/Installer
- Refer to: Quick Release Coupling
. Refer to: Spring Lock Couplings
.
- Use the General Equipment: Fluid Container Use the General Equipment: Hose Clamp Remover/Installer
- Refer to: Front Subframe .
-
NOTE: Install to support cooling module.
Torque: 18 lb.ft (24 Nm)

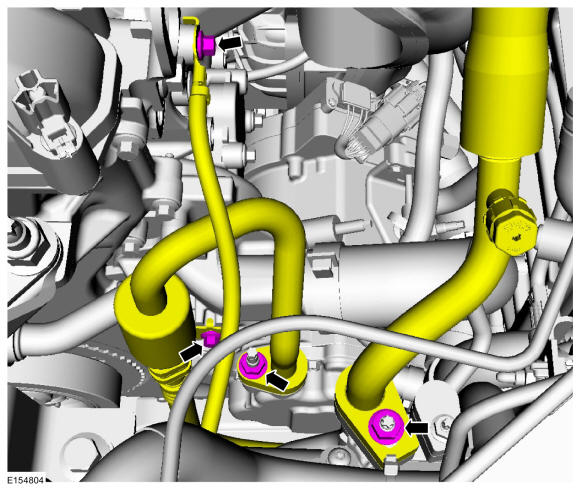

- Use the General Equipment: Hose Clamp Remover/Installer Use the General Equipment: Fluid Container Use the General Equipment: Oil Drain Equipment
-
WARNING: Be prepared to collect escaping fluid.
Use the General Equipment: Oil Drain Equipment
Torque: 21 lb.ft (28 Nm)

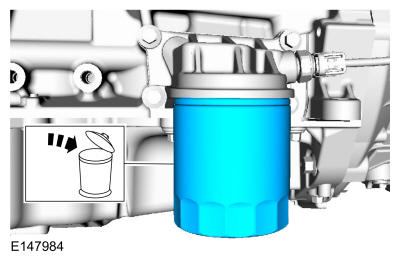

- Use the General Equipment: Strap Wrench

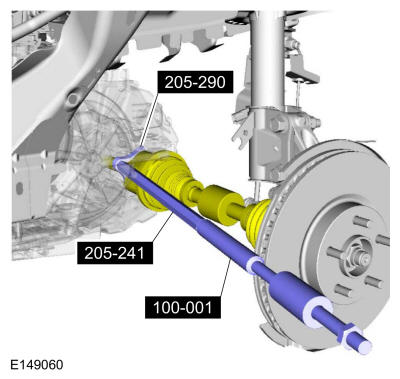

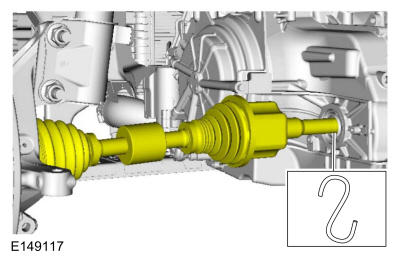

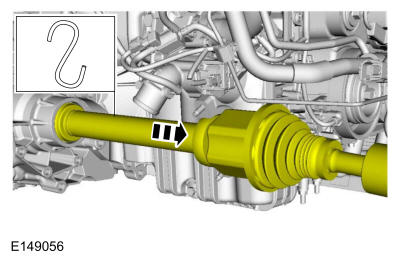

- Use Special Service Tool: 100-001 (T50T-100-A) Slide Hammer.205-241 (T86P-3514-A) Remover, Halfshaft.205-290 (T89P-3415-B) Remover, Halfshaft (Plate).
-

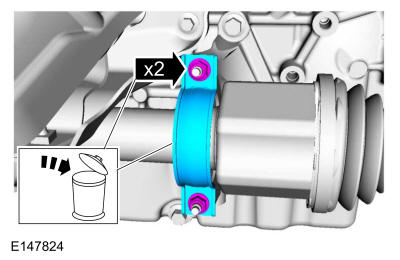

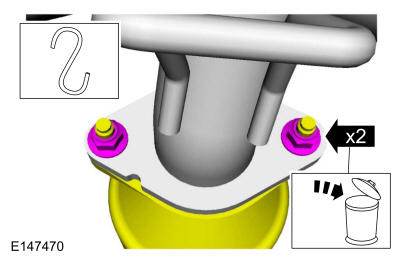

NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

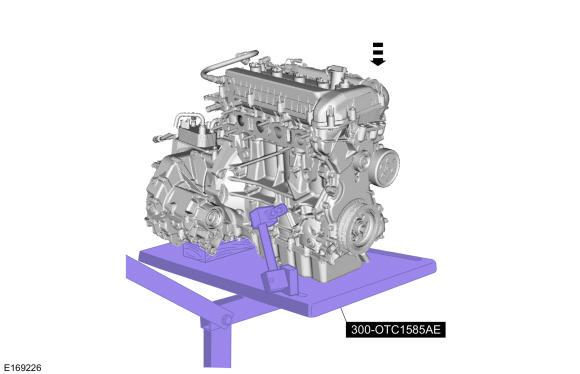

- General equipment: Adjustable Grip Install Special Service Tool: 300-OTC1585AE Powertrain Lift.
- Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

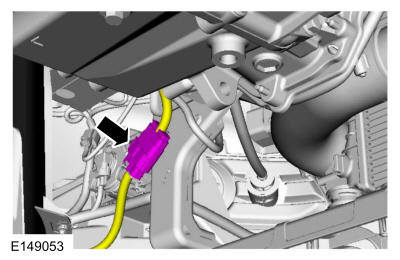

- Use the General Equipment: Hose Clamp Remover/Installer

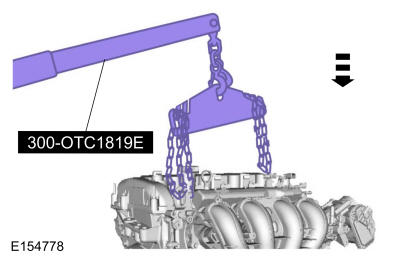

- Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
- General equipment: Adjustable Grip Remove Special Service Tool: 300-OTC1585AE Powertrain Lift.
- Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
-
NOTE: The transaxle-to-engine bolts differ in length. Note the location of the bolts for correct installation.
