Valve Cover: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Installation of a new VCT solenoid seal is required if a damaged seal was removed during disassembly of the engine.

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer.205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

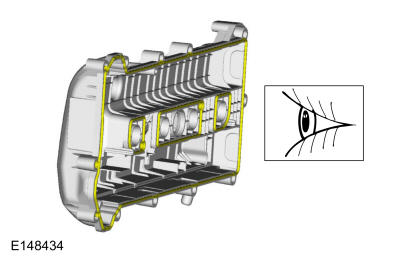

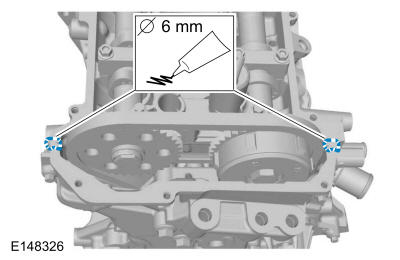

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

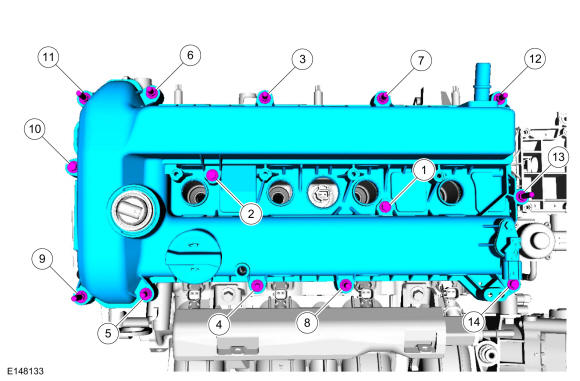

Tighten in the sequence shown.
Torque: 89 lb.in (10 Nm)

Fig 1: Valve Cover Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Torque: 89 lb.in (10 Nm)

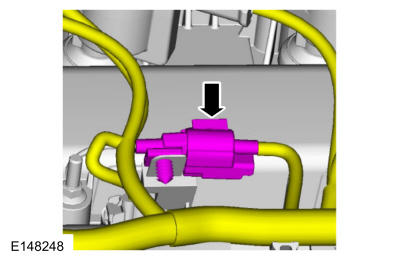

Courtesy of FORD MOTOR COMPANY

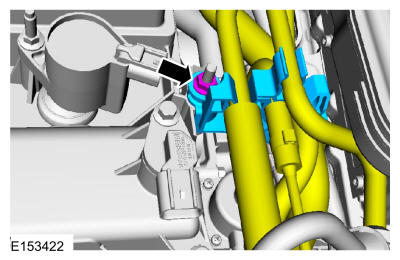

Courtesy of FORD MOTOR COMPANY

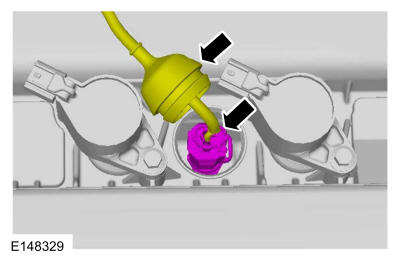

Courtesy of FORD MOTOR COMPANY

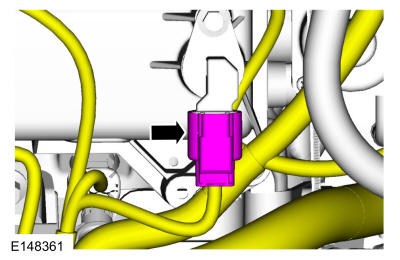

Courtesy of FORD MOTOR COMPANY

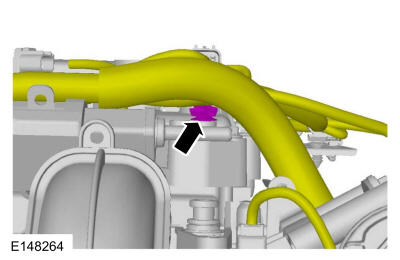

Courtesy of FORD MOTOR COMPANY

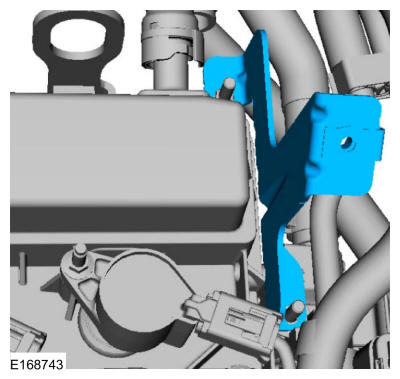

Courtesy of FORD MOTOR COMPANY
Torque: 89 lb.in (10 Nm)

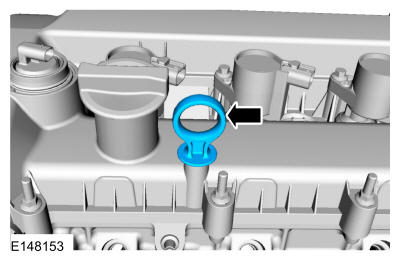

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

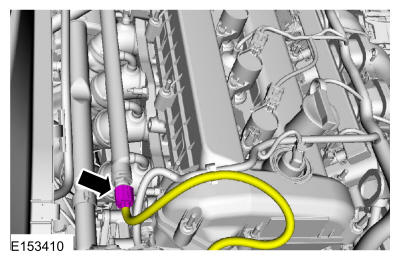

Refer to: Spring Lock Couplings .

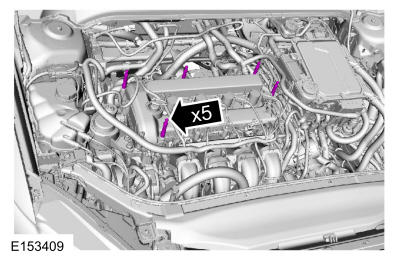

Courtesy of FORD MOTOR COMPANY

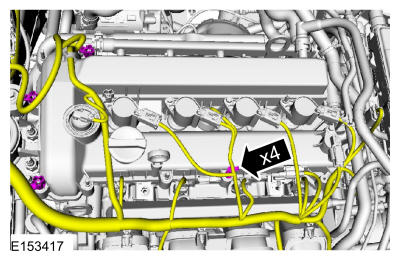

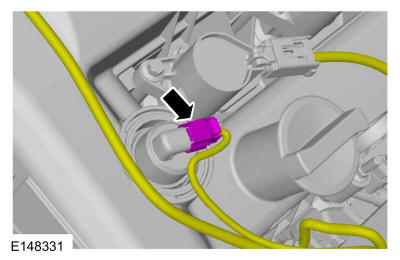

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Refer to: Ignition Coil-On-Plug .
Courtesy of FORD MOTOR COMPANY
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Air Cleaner Outlet Pipe . Refer to: Air Cleaner .
