Oil Pump: Installation
WARNING: This page is about a different variant/trim than selected.
- Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

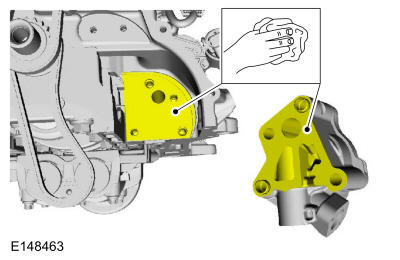

- Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.

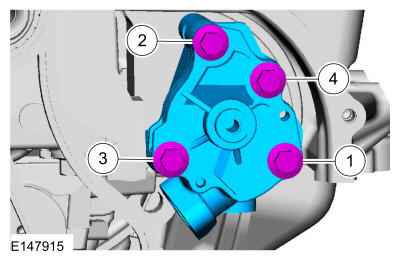

- Torque:
Stage 1: 89 lb.in (10 Nm)
Stage 2: 177 lb.in (20 Nm)

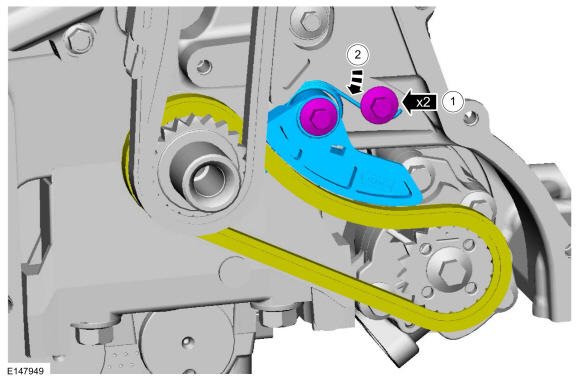

- Torque: 18 lb.ft (25 Nm)

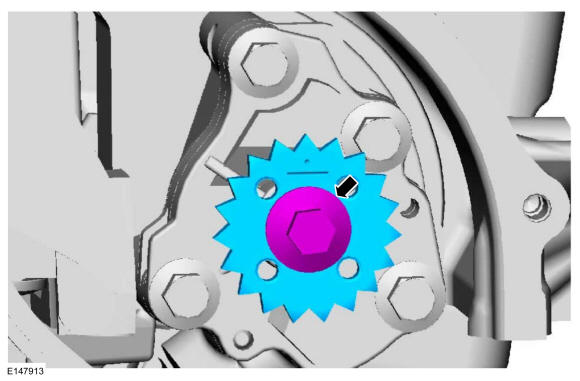

- Torque: 89 lb.in (10 Nm)
- Refer to: Oil Pump Screen and Pickup Tube .
