Oil Pan: Installation

WARNING: This page is about a different variant/trim than selected.

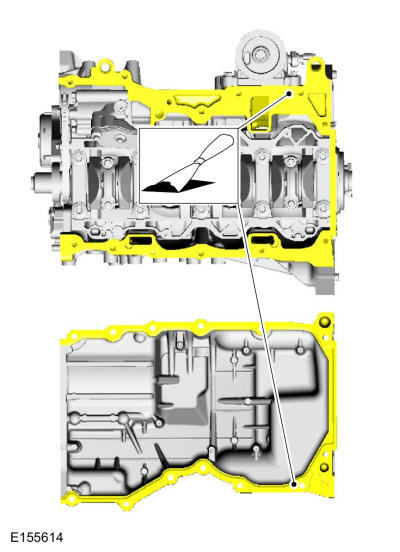

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Plastic scraper.

Courtesy of FORD MOTOR COMPANY

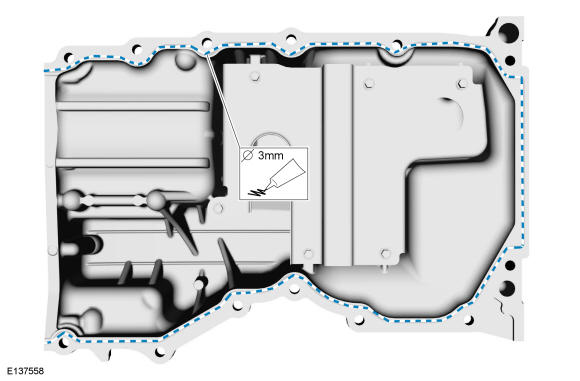

NOTE: The component must be installed within 10 minutes of applying the sealant.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

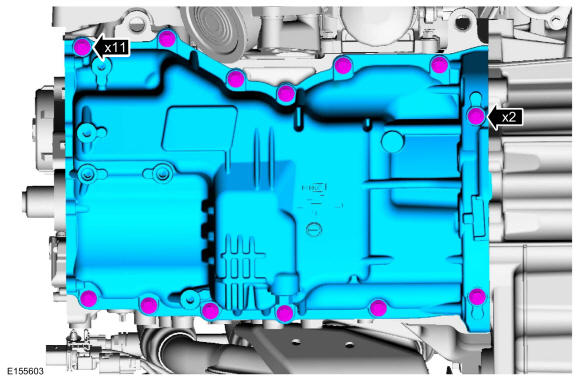

NOTE: Only tighten the bolts finger tight at this stage.

Courtesy of FORD MOTOR COMPANY
NOTE: Align the front surface of the oil pan flush with the front surface of the engine block.

Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY
Torque: 177 lb.in (20 Nm)

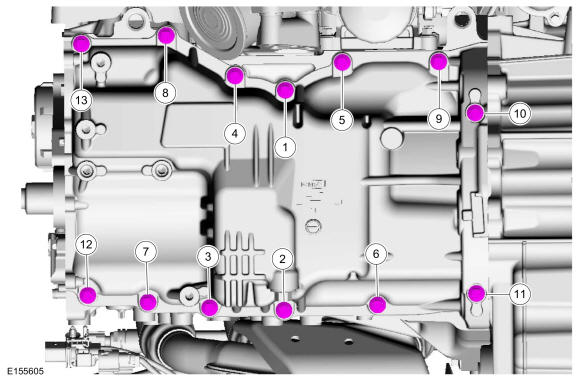

Fig 1: Oil Pan Tightening Sequence
Courtesy of FORD MOTOR COMPANY

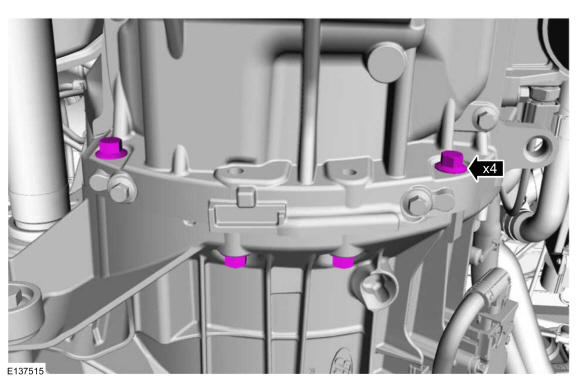

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Engine Front Cover - Plug-In Hybrid Electric Vehicle (PHEV) . Refer to: Engine Front Cover - Plug-In Hybrid Electric Vehicle (PHEV) .
Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
