Intake Manifold: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
- Refer to: Fuel System Pressure Release .
- Refer to: Battery Disconnect and Connect

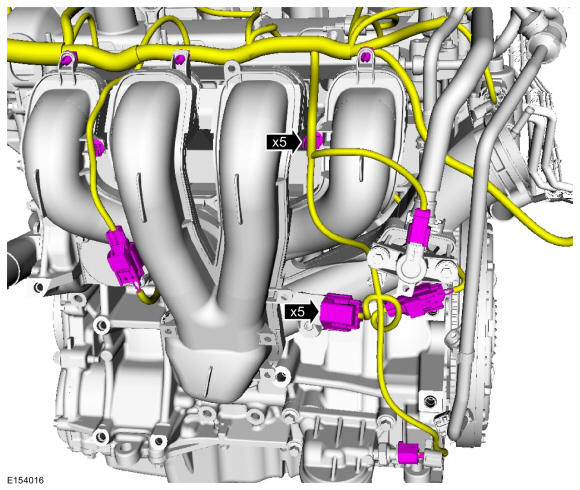

- Remove the following items:

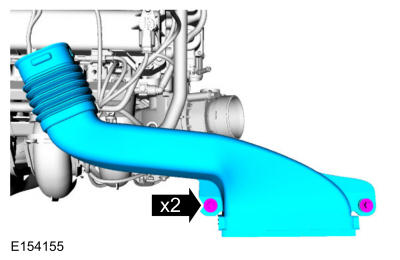

- Refer to: Air Cleaner .
- Torque: 44 lb.in (5 Nm)

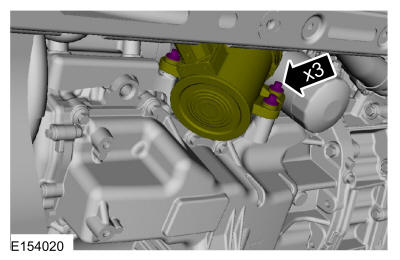

- Refer to: Throttle Body .

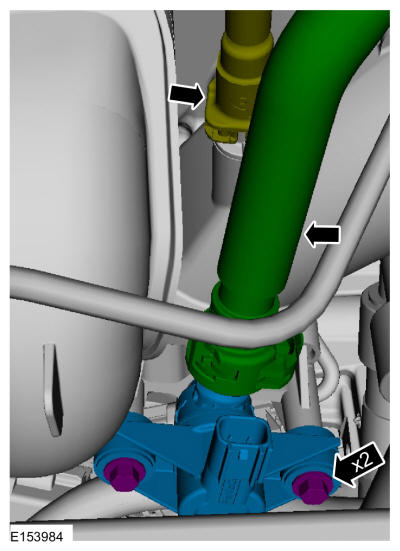

- Refer to: Quick Release Coupling
.
Torque: 89 lb.in (10 Nm)

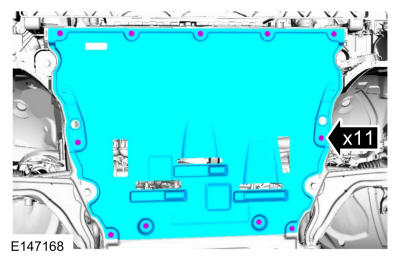

- Refer to: Jacking and Lifting - Overview .

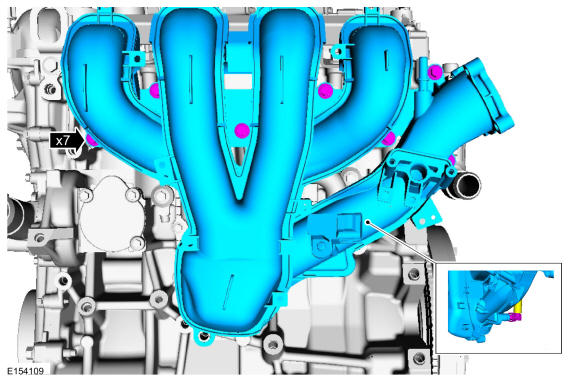

- Torque:
Stage 1: 93 lb.in (10.5 Nm)
Stage 2: 90 °
- Torque: 159 lb.in (18 Nm)
- Refer to: Fuel Rail .
-
NOTE: Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.
