Removal And Installation: Flywheel: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the transmission. Refer to: Transmission .
- Remove the RH splash shield. Refer to: Fender Splash Shield .

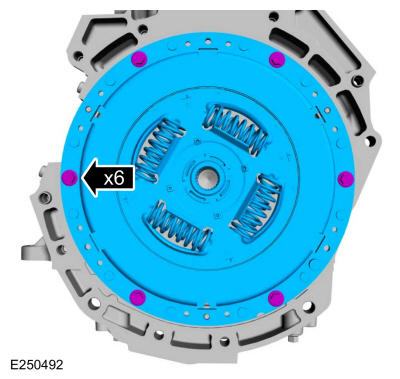

- Remove the bolts and the damper.

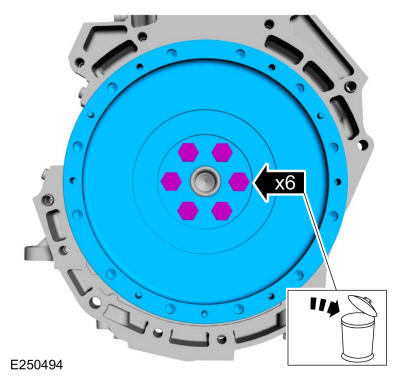

- Remove the bolts and the flywheel.
- Discard the bolts.
