Removal And Installation: Flywheel: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

Install the flywheel and new bolts.
- Using a universal pulley holder, tighten the new crankshaft pulley bolts in sequence shown.
  Torque:

  Stage 1: 37 lb.ft (50 Nm)

  Stage 2: 59 lb.ft (80 Nm)

  Stage 3: 83 lb.ft (112 Nm)
Fig 1: Flywheel Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the damper and the bolts.
- Using a universal pulley holder, tighten 2 turns at a time in sequence shown.
  Torque: 21 lb.ft (29 Nm)

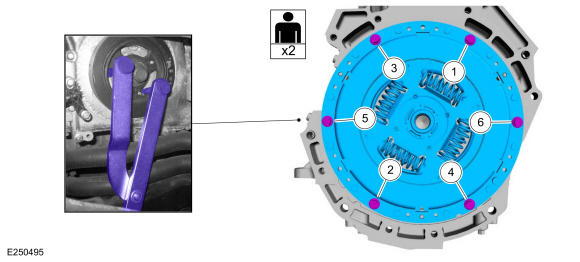

Fig 2: Flywheel Damper Tightening Sequence
Courtesy of FORD MOTOR COMPANY
Install the RH splash shield. Refer to: Fender Splash Shield .
Install the transmission. Refer to: Transmission .
