Engine Mount: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: Removal steps in this procedure may contain installation details.

Refer to: Air Cleaner . Refer to: Air Cleaner Outlet Pipe .

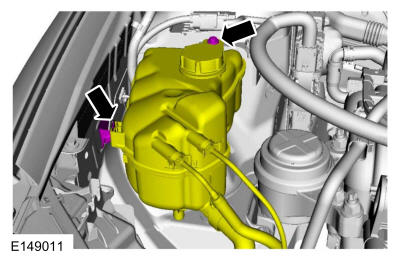

Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

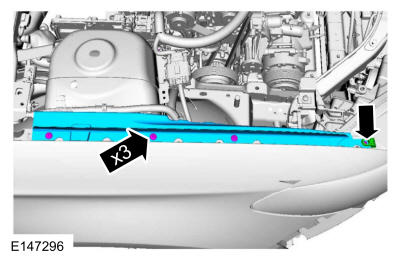

Courtesy of FORD MOTOR COMPANY

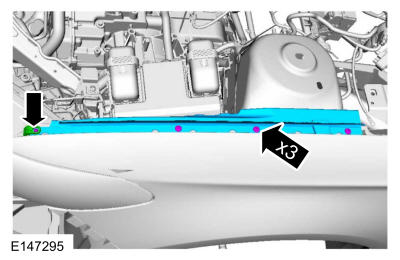

Courtesy of FORD MOTOR COMPANY

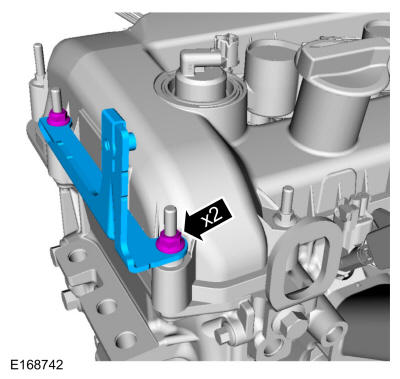

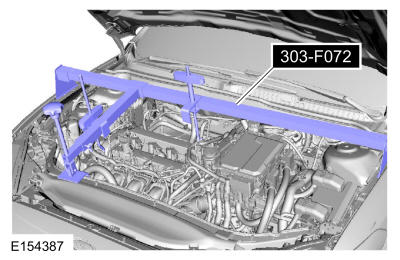

Use Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Torque: 44 lb.in (5 Nm)

Courtesy of FORD MOTOR COMPANY

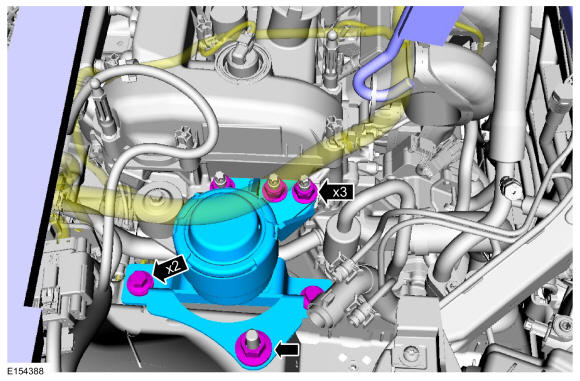

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 66 lb.ft (90 Nm)

Courtesy of FORD MOTOR COMPANY
