Engine Front Cover - Plug-In Hybrid Electric Vehicle (PHEV): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not use metal scrapers, wire brushes, power abrasive disks or other abrasive means to clean sealing surfaces. These tools cause scratches and gouges which make leak paths.

Clean all mating surfaces with

Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft ® Metal Surface Prep.

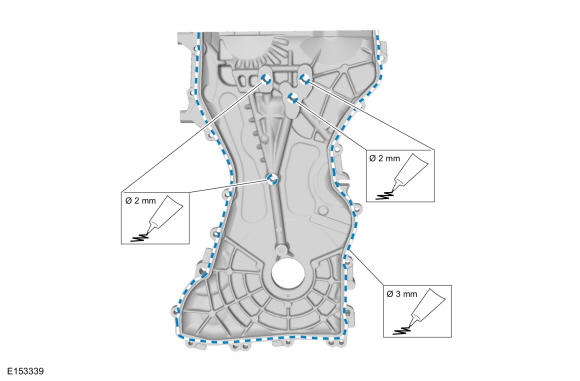

Apply a continuous bead of the specified diameter from the specified tube.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the engine front cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft ® Metal Surface Prep.

Apply a continuous bead of the specified diameter from the specified tube.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Torque:
Bolts 1 - 3: 35 lb.ft (48 Nm)

Bolts 4 - 13: 89 lb.in (10 Nm)

Bolt 14: 35 lb.ft (48 Nm)

Bolts 15 - 21: 89 lb.in (10 Nm)

Fig 1: Engine Front Cover Tightening Sequence (PHEV)
Courtesy of FORD MOTOR COMPANY

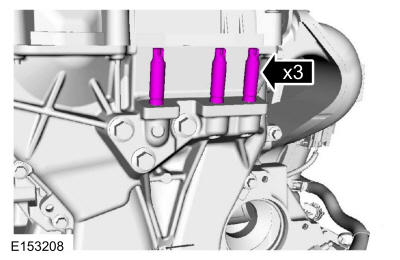

Torque: 28 lb.ft (38 Nm)

Courtesy of FORD MOTOR COMPANY
Install the following items:
- Refer to: Engine Mount .
- Refer to: Crankshaft Front Seal .
Courtesy of FORD MOTOR COMPANY

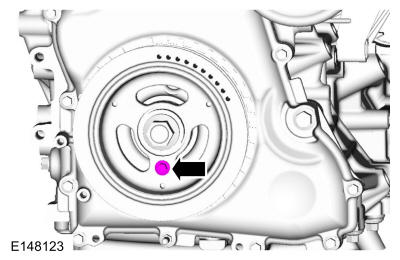

NOTE: Only hand-tighten the bolt or damage to the front cover can occur.

M6 Bolt.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not tighten the bolts at this time.

Courtesy of FORD MOTOR COMPANY

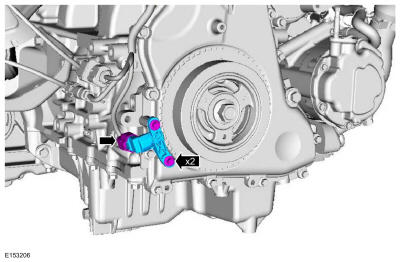

Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Remove the M6 Bolt.

Courtesy of FORD MOTOR COMPANY
Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

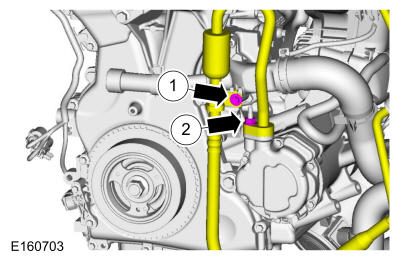

Torque:
1: 89 lb.in (10 Nm)

2: 133 lb.in (15 Nm)

Courtesy of FORD MOTOR COMPANY
- Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging - Vehicles With: R1234Yf Refrigerant or Air Conditioning (A/C) System Recovery, Evacuation And Charging - Vehicles With: R134A Refrigerant .
