Cylinder Head - Plug-In Hybrid Electric Vehicle (PHEV): Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction, using diamond washers between the flange faces on each part. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan may cause engine failure.
-
WARNING: Before beginning any service procedure in this article, refer to Health and Safety Precautions . Failure to follow this instruction may result in serious personal injury.
-
- Refer to: Jacking and Lifting - Overview .
- Refer to: Fuel System Pressure Release .
- Refer to: Battery Disconnect and Connect .
- Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Transmission Control Module (TCM) .
- Refer to: Intake Manifold .
-

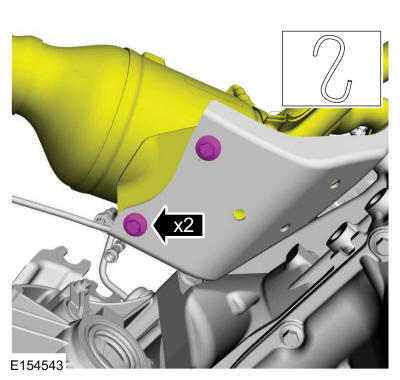

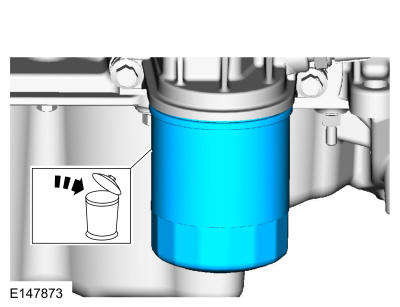

NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.
- Refer to: Valve Tappets .
-
NOTE: Failure to position the wood block and floor jack as illustrated can result in damage to the oil pan.
Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block
- Remove Special Service Tool: 303-F072 Support Bar, Engine.
