Cylinder Head - Hybrid Electric Vehicle (HEV): Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.

NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the metal surface prep.

NOTE: Clean the cylinder head bolt holes in the cylinder block. Make sure all coolant, oil or other foreign material is removed.

Clean all mating surfaces.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A
- Refer to: Cylinder Head Distortion
- Refer to: Cylinder Block Distortion
Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 133 lb.in (15 Nm)

Stage 3: 33 lb.ft (45 Nm)

Stage 4: 90 °Stage 5: 90 °

Fig 1: Cylinder Head Tightening Sequence (HEV)
Courtesy of FORD MOTOR COMPANY
Install Special Service Tool: 303-F072 Support Bar, Engine.

Courtesy of FORD MOTOR COMPANY
Use the General Equipment: Trolley Jack Use the General Equipment: Wooden Block

Courtesy of FORD MOTOR COMPANY
NOTE: Transmission removed from graphic for clarity.

Courtesy of FORD MOTOR COMPANY
Refer to: Valve Tappets .
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 18 lb.ft (25 Nm)

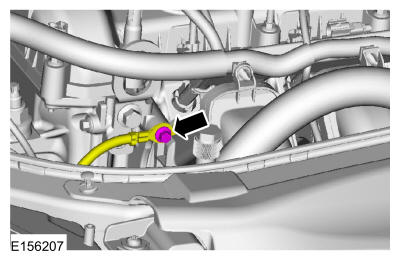

Courtesy of FORD MOTOR COMPANY
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

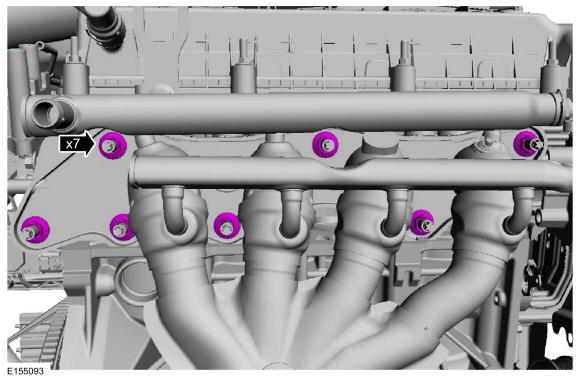

Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Refer to: Intake Manifold .
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Refer to: Transmission Control Module (TCM) .
WARNING: Be prepared to collect escaping fluid.

Use the General Equipment: Oil Drain Equipment

Torque: 20 lb.ft (27 Nm)

Courtesy of FORD MOTOR COMPANY
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
Torque:

Stage 1: 71 lb.in (8 Nm)

Stage 2: 180 °

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
- Refer to: Battery Disconnect and Connect .
- Pressurize the fuel system. Refer to: Fuel System Pressure Release .
- Refer to: Cooling System Draining, Filling And Bleeding .
