Removal And Installation: Camshafts: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material (including any material created while cleaning gasket surfaces) that enters the oil passages, coolant passages or the oil pan can cause engine failure.

NOTE: Do not rotate the camshafts unless instructed to in this procedure. Rotating the camshafts or crankshaft with timing components loosened or removed can cause serious damage to the valves and pistons.

Refer to: Variable Valve Timing (VVT) Unit .
Courtesy of FORD MOTOR COMPANY

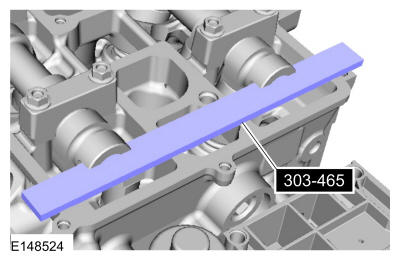

Remove Special Service Tool: 303-465 Tool, Camshaft Align Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

NOTE: Mark the location and orientation of each camshaft bearing cap.

Loosen the camshaft bearing cap bolts, in sequence, one turn at a time until all tension is released from the camshaft bearing caps.

Fig 1: Camshaft Loosening Sequence

Courtesy of FORD MOTOR COMPANY
