Engine - Plug-In Hybrid Electric Vehicle (PHEV)
WARNING: This page is about a different variant/trim than selected.
Special Tool(s) / General Equipment
| 300-OTC1585AE Powertrain Lift | |
|---|---|
| 300-OTC1819E2, 200# Floor Crane, Fold Away | |
| Hose Clamp Remover/Installer |
Materials
| Name | Specification |
|---|---|
| Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil XO-0W20-QSP | WSS-M2C947-A |
| Motorcraft ® MERCON ® LV Automatic Transmission Fluid XT-10-QLVC | MERCON ® LVWSS-M2C938-A |
-

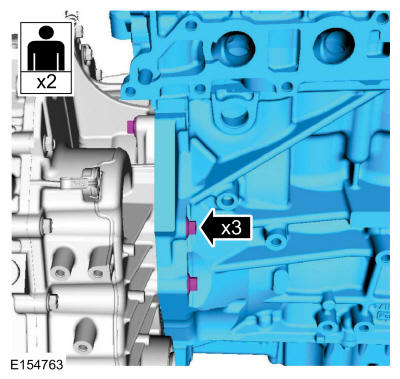

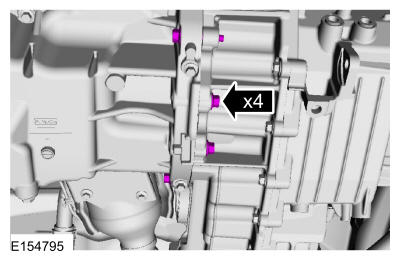

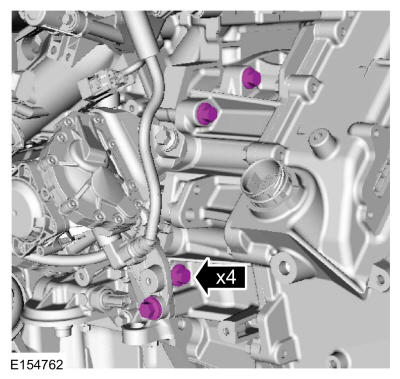

NOTE: The transaxle-to-engine bolts differ in length. Note the location of the bolts for correct installation.
Torque: 35 lb.ft (48 Nm)
- Torque: 35 lb.ft (48 Nm)

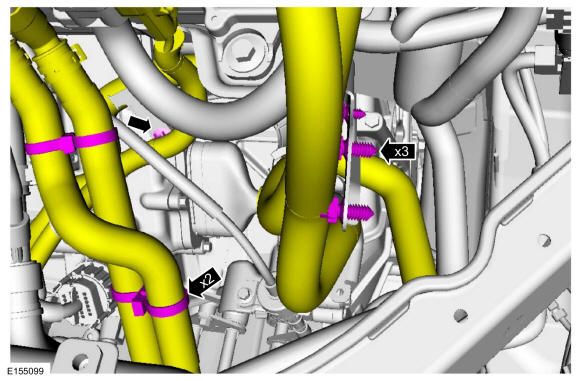

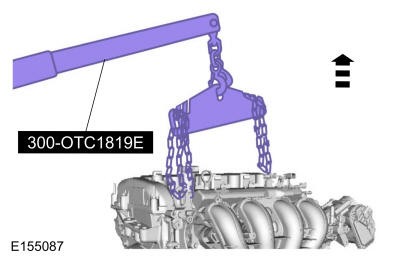

- Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.
- General equipment: Adjustable Grip Use Special Service Tool: 300-OTC1585AE Powertrain Lift.
- Use Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

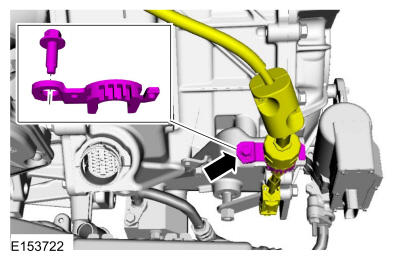

- Torque: 97 lb.in (11 Nm)

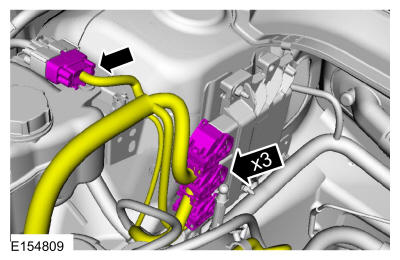

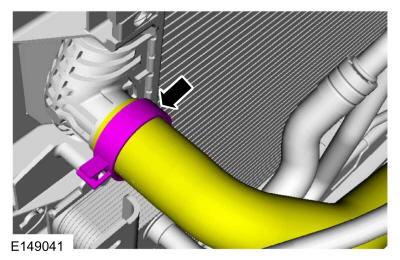

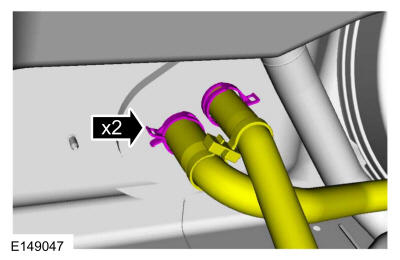

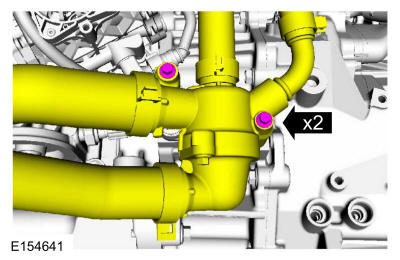

- Use the General Equipment: Hose Clamp Remover/Installer

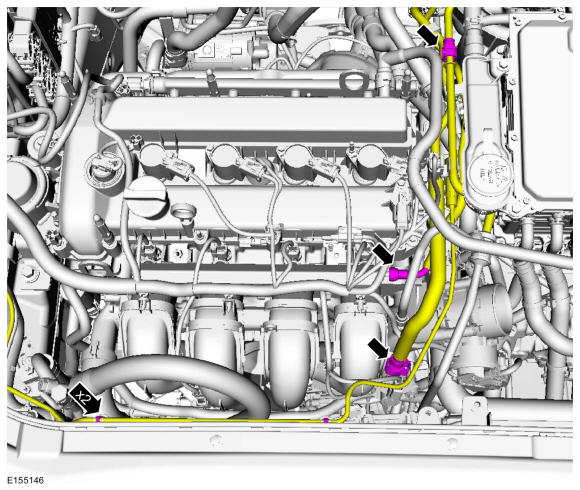

Torque: 97 lb.in (11 Nm)

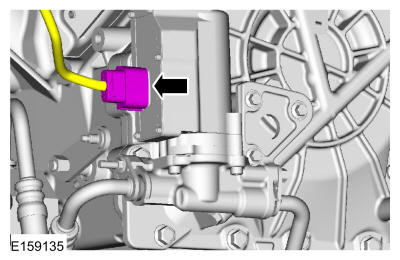

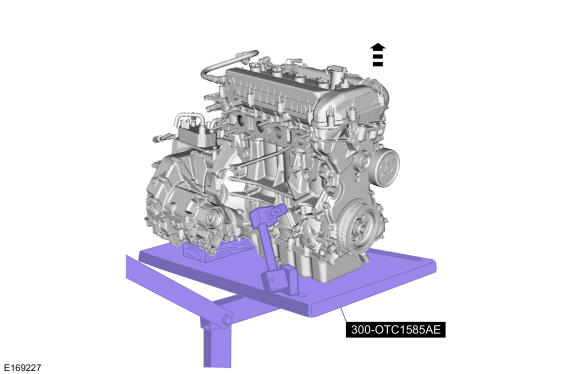

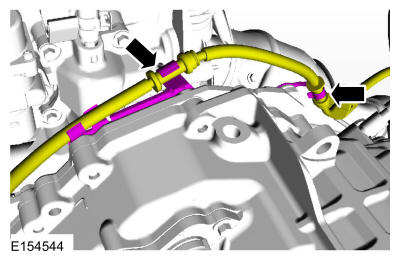

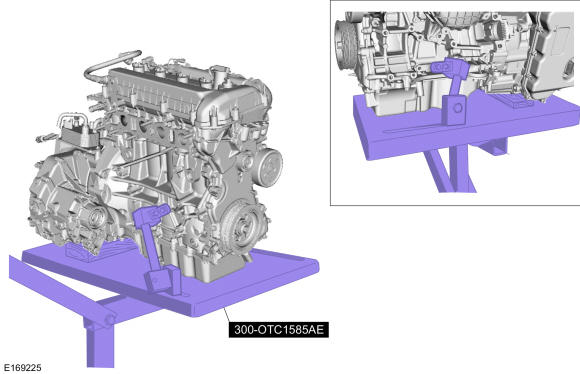

- Use Special Service Tool: 300-OTC1585AE Powertrain Lift.

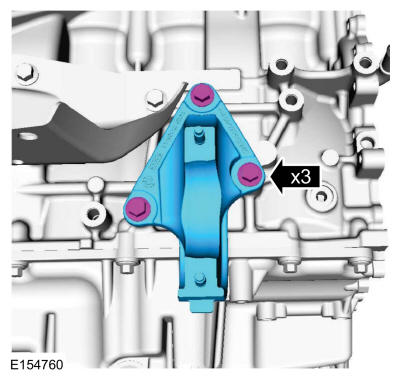

- Torque: 66 lb.ft (90 Nm)

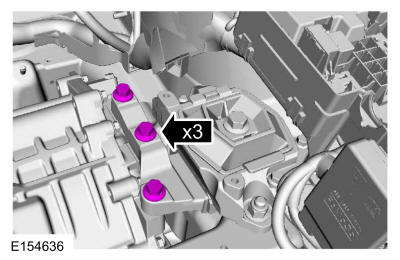

- Torque: 89 lb.in (10 Nm)

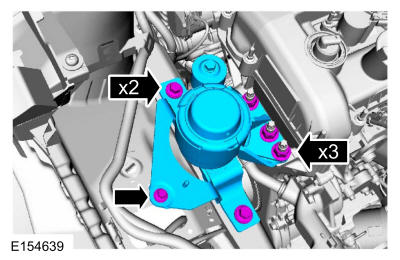

- Torque: 98 lb.ft (133 Nm)
- General equipment: Adjustable Grip Remove Special Service Tool: 300-OTC1585AE Powertrain Lift.

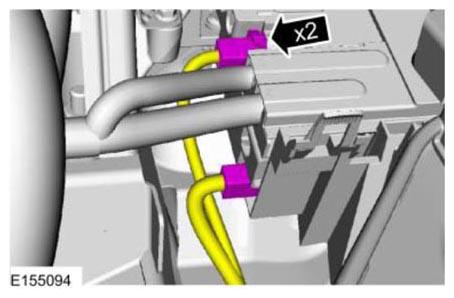

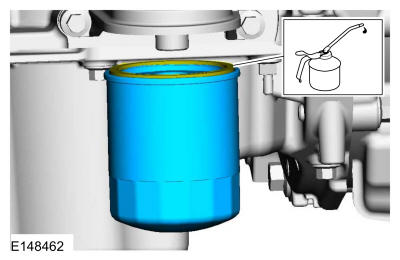

- Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
Torque: 177 lb.in (20 Nm)
- Torque: 35 lb.ft (48 Nm)
- Torque: 35 lb.ft (48 Nm)
-

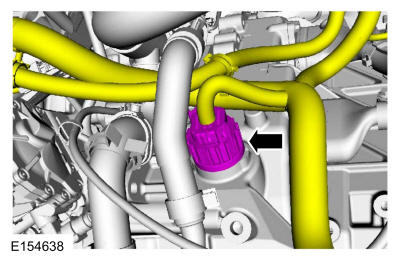

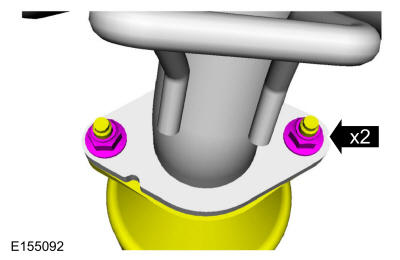

NOTE: Do not excessively bend or twist the exhaust flexible pipe. Failure to follow these instructions may cause damage to the flexible pipe.
- Torque: 35 lb.ft (48 Nm)

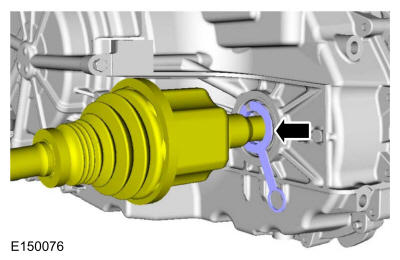

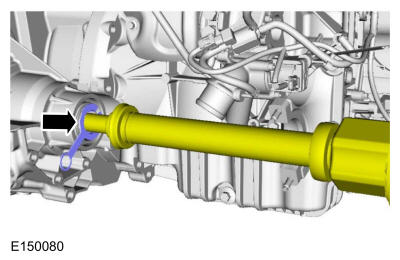

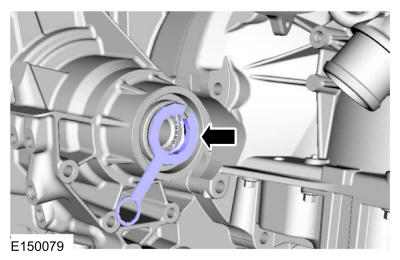

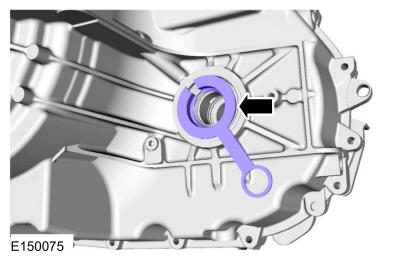

- Install the seal protector.

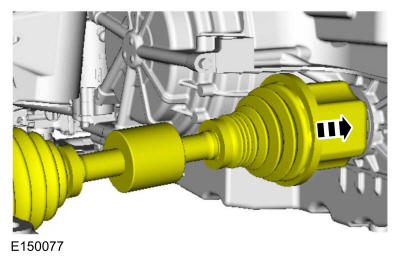

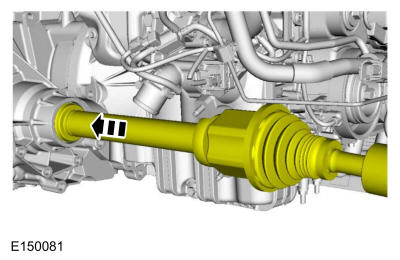

- Using the seal protector, insert the splines of the halfshaft through the halfshaft seal and remove the seal protector.
-

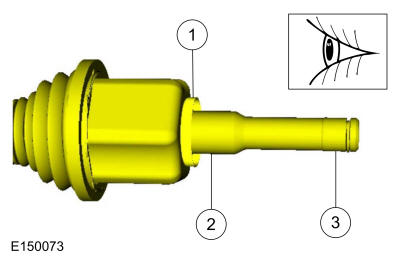

NOTE: When seated correctly, the halfshaft bearing retainer circlip can be felt as it snaps into the differential side gear groove.
- Install the seal protector.
- Using the seal protector, insert the splines of the halfshaft through the halfshaft seal and remove the seal protector.

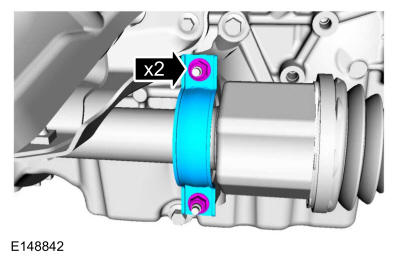

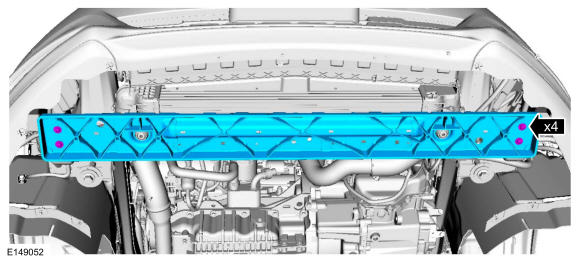

- Torque: 18 lb.ft (24 Nm)
-

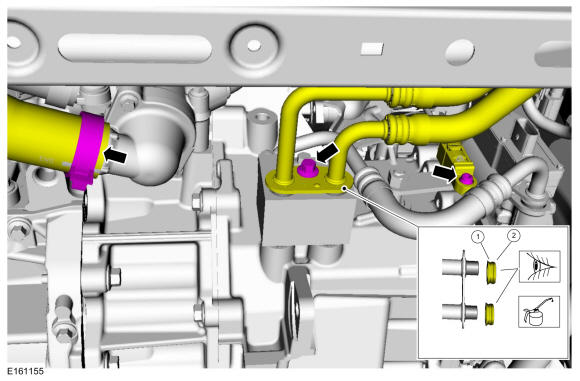

- Backing ring
- Seal Use the General Equipment: Hose Clamp Remover/Installer
Material: Motorcraft ® MERCON ® LV Automatic Transmission Fluid / XT-10-QLVC (MERCON ® LV) (WSS-M2C938-A)
Torque: 18 lb.ft (25 Nm)
- Refer to: Front Subframe .

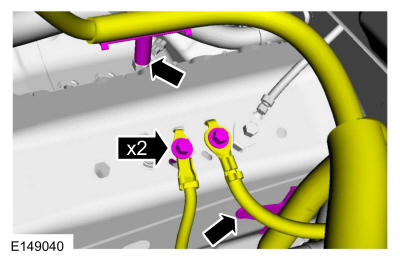

- Torque: 62 lb.in (7 Nm)
- Use the General Equipment: Hose Clamp Remover/Installer

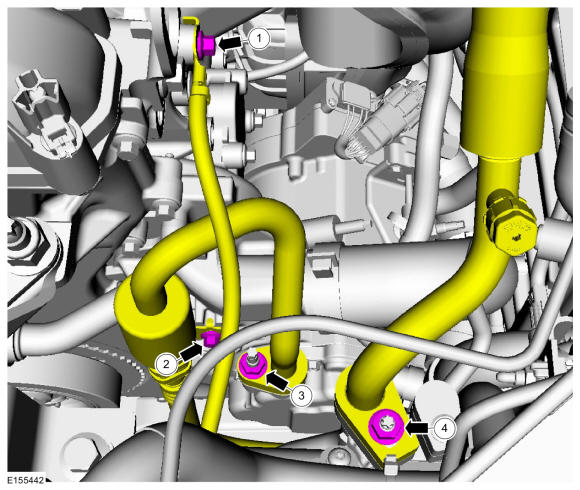

- Torque:
1: 18 lb.ft (25 Nm)
2: 89 lb.in (10 Nm)
3: 133 lb.in (15 Nm)
4: 133 lb.in (15 Nm)

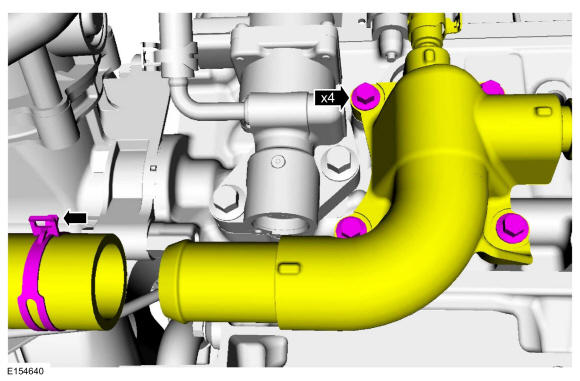

- Use the General Equipment: Hose Clamp Remover/Installer
- Torque: 106 lb.in (12 Nm)
- Refer to: Transmission Control Module (TCM) .
- Torque: 44 lb.in (5 Nm)

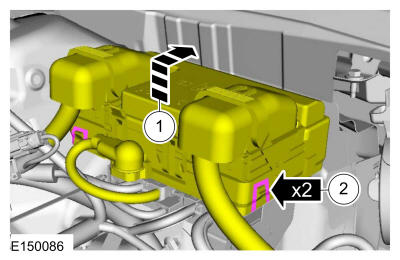

- Install the following items:
- Refer to: Air Cleaner .
- Refer to: Air Cleaner Outlet Pipe .
- Refer to: Degas Bottle .
- Fill the engine with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
-
- Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Cooling System Draining, Filling and Bleeding .
- Refer to: Air Conditioning (A/C) System Recovery, Evacuation And Charging - Vehicles With: R1234Yf Refrigerant or Air Conditioning (A/C) System Recovery, Evacuation And Charging - Vehicles With: R134A Refrigerant .
- Refer to: Battery Disconnect and Connect
- Refer to: Transmission Fluid Level Check .
