Cylinder Head: Assembly
WARNING: This page is about a different variant/trim than selected.
-

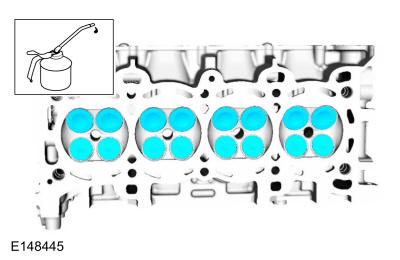

NOTE: If installing the original valves, make sure the valves are installed in the same position from which they were removed. Coat the valve stems with clean engine oil.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
-

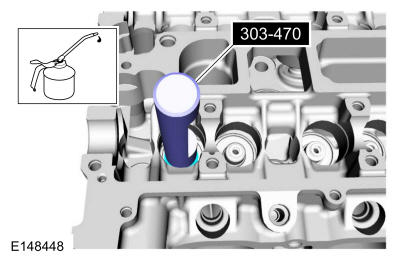

NOTE: Use the protector provided with the replacement kit to prevent damage to the valve seals.
Use Special Service Tool: 303-470 (T94P-6510-CH) Installer, Valve Stem Oil Seal.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)
-
NOTE: Use a small screwdriver and multi-purpose grease to install the valve collets.NOTE: Check the seating of the valve collets after installation.
Install the valve springs, valve spring retainers and the valve collets. Use Special Service Tool: 303-300 (T87C-6565-A) Set, Valve Spring Compressor.303-350 (T89P-6565-A) Compressor, Valve Spring., 303-472 (T94P-6565-AH) Adapter, Valve Spring Compressor.
Material: Motorcraft ® Multi-Purpose Grease Spray / XL-5-A (ESB-M1C93-B)
-
NOTE: Only use hand tools when removing or installing the spark plugs or damage can occur to the cylinder head or spark plug.
Torque: 106 lb.in (12 Nm)

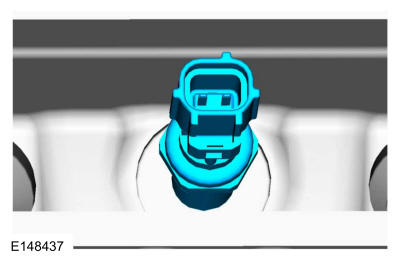

- Torque: 106 lb.in (12 Nm)
- Torque: 41 lb.ft (55 Nm)
- Torque: 177 lb.in (20 Nm)
- Torque: 89 lb.in (10 Nm)
-
NOTE: Rear shown, front similar.
Torque: 35 lb.ft (47 Nm)
