Engine - Hybrid Electric Vehicle (HEV)

WARNING: This page is about a different variant/trim than selected.

Special Tool(s) / General Equipment

Courtesy of FORD MOTOR COMPANY	100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge
Courtesy of FORD MOTOR COMPANY	205-153 (T80T-4000-W) Handle

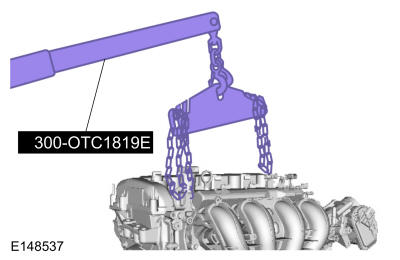

Courtesy of FORD MOTOR COMPANY	300-OTC1819E2, 200# Floor Crane, Fold Away
Courtesy of FORD MOTOR COMPANY	303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal TKIT-2009TC-F
Courtesy of FORD MOTOR COMPANY	303-1247VCT Spark Plug Tube Seal Remover and Installer TKIT-2006UF-FLM TKIT-2006UF-ROW
Courtesy of FORD MOTOR COMPANY	303-1416 Tool, Crank Damper Holding TKIT-2008ET-FLM

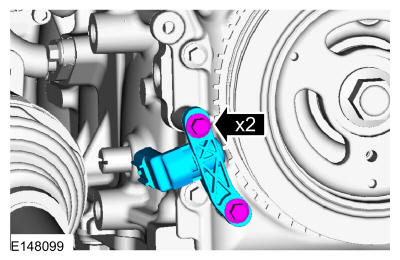

Courtesy of FORD MOTOR COMPANY	303-1521 Alignment Tool, Crankshaft Position Sensor TKIT-2010C-FLM
Courtesy of FORD MOTOR COMPANY	303-328 (T88P-6701-B1) Replacer, Rear Seal TKIT-1988-FLM TKIT-1988-F TKIT-1988-LM
Courtesy of FORD MOTOR COMPANY	303-465 Tool, Camshaft Align Timing TKIT-1994-LMH/MH2 TKIT-1994-FH/FMH/FLMH
Courtesy of FORD MOTOR COMPANY	303-507 Timing Peg, Crankshaft TDC TKIT-2001N-FLM TKIT-2001N-ROW
Feeler Gauge
Round-Ended Steel Rule
Piston Ring Compressor

Materials

Name	Specification
Motorcraft ® Silicone Gasket Remover ZC-30-A	-
Motorcraft ® Metal Surface Prep Wipes ZC-31-B	-
Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil XO-0W20-QSP	WSS-M2C947-A
Motorcraft ® Silicone Gasket and Sealant TA-30	WSE-M4G323-A4
Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

NOTE: Do not loosen or remove the crankshaft pulley bolt without first installing the special tools as instructed in this procedure. The crankshaft pulley and the crankshaft timing sprocket are not keyed to the crankshaft. The crankshaft, the crankshaft sprocket and the pulley are fitted together by friction. For that reason, the crankshaft sprocket is also unfastened if the pulley bolt is loosened. Before any repair requiring loosening or removal of the crankshaft pulley bolt, the crankshaft and camshafts must be locked in place by the special service tools, otherwise severe engine damage can occur.

NOTE: During engine repair procedures, cleanliness is extremely important. All parts must be thoroughly cleaned and any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan, can cause engine failure.

NOTE: If it is necessary to install a new timing chain tensioner, a cast iron tensioner is to be replaced with an aluminum tensioner (6K254). The existing bolts must be discarded and replaced with new bolts (6K282).

NOTE: For additional information, refer to the exploded views in Description and Operation in this article.

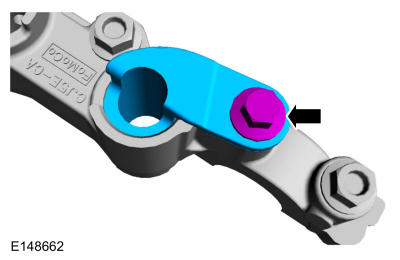

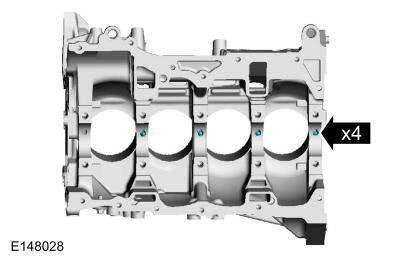

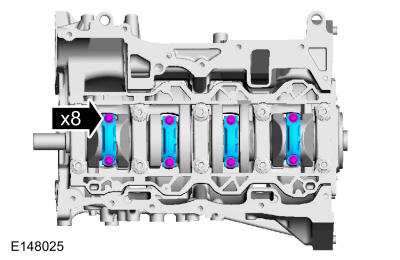

NOTE: If the oil squirters are being reused, they must be installed in the same location as marked during disassembly.

NOTE: The front bulkhead does not have an oil squirter.

Torque: 35 lb.in (4 Nm)

Courtesy of FORD MOTOR COMPANY

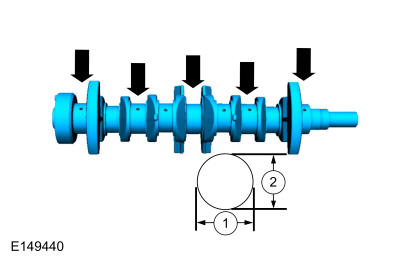

NOTE: Record the smallest diameter for each journal.

Courtesy of FORD MOTOR COMPANY

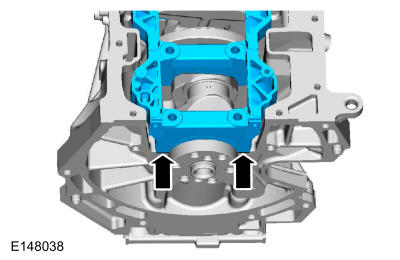

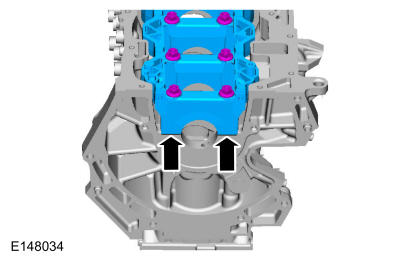

Position the main bearing beam in the engine block with the main bearing beam mounted flush with the rear face of the engine block and install the original main bearing beam bolts finger tight.

Courtesy of FORD MOTOR COMPANY
Torque:
Stage 1: 44 lb.in (5 Nm)

Stage 2: 18 lb.ft (25 Nm)

Stage 3: 90 °

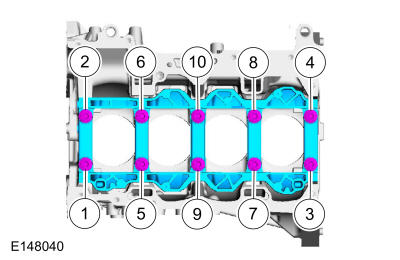

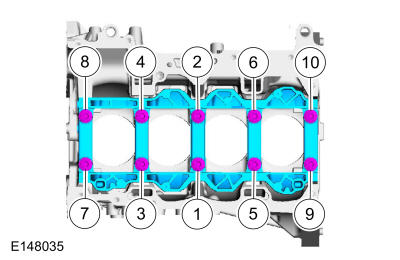

Fig 1: Main bearing Beam Tightening Sequence (Tighten) (1 of 3) (HEV)
Courtesy of FORD MOTOR COMPANY

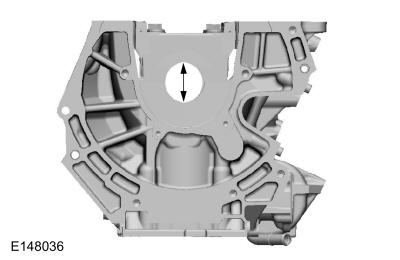

Measure each crankshaft block main bearing bore diameter.

Courtesy of FORD MOTOR COMPANY

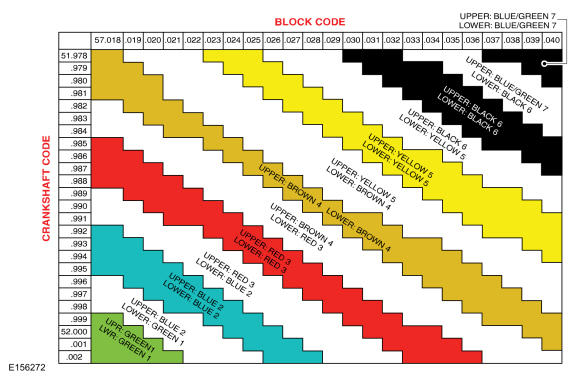

Using the chart, select the crankshaft main bearings.

Courtesy of FORD MOTOR COMPANY
NOTE: Use the original connecting rod cap bolts; installation must keep the same orientation as marked during disassembly or engine damage may occur.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 21 lb.ft (29 Nm)

Stage 3: 90 °

Courtesy of FORD MOTOR COMPANY
NOTE: Record the smallest measurement for each connecting rod.

Remove and discard the bolts after measuring.

Courtesy of FORD MOTOR COMPANY
NOTE: Record the smallest measurement for each connecting rod.

Courtesy of FORD MOTOR COMPANY

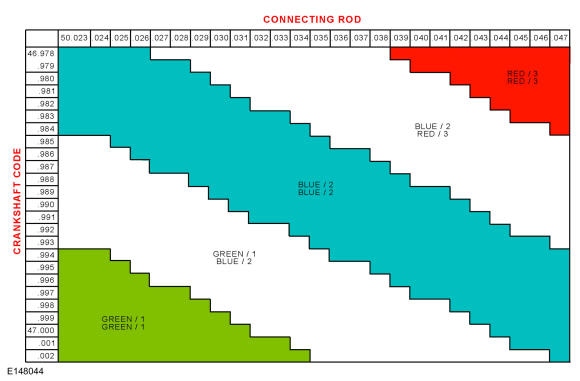

Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.

Courtesy of FORD MOTOR COMPANY
Fig 2: Main Bearing Beam Tightening Sequence (Loosen) (2 of 3) (HEV)
Courtesy of FORD MOTOR COMPANY
NOTE: Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.

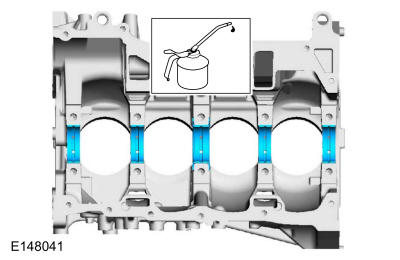

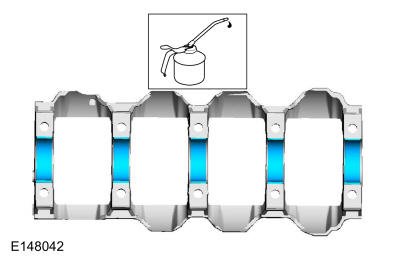

NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

NOTE: The center bulkhead is the thrust bearing.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
NOTE: If reusing the crankshaft main bearings, install them in their original positions and orientation as noted during disassembly.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY

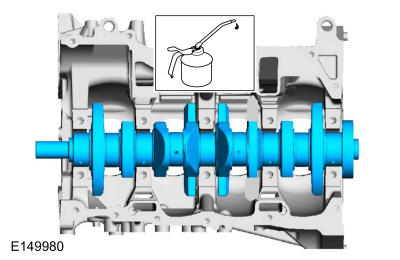

NOTE: Lubricate the journals on the crankshaft with clean engine oil.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
Material Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
Mounted flush.

Courtesy of FORD MOTOR COMPANY
NOTE: Lubricate the main bearing beam bolts threads and under the bolt heads with clean engine oil.

NOTE: Position the crankshaft to the rear of the cylinder block, then position the crankshaft to the front of the cylinder block before tightening the main bearing beam bolts.

Torque:

Stage 1: 44 lb.in (5 Nm)

Stage 2: 18 lb.ft (25 Nm)

Stage 3: 90 °

Fig 3: Main Bearing Beam Tightening Sequence (Tighten) (3 of 3) (HEV)
Courtesy of FORD MOTOR COMPANY

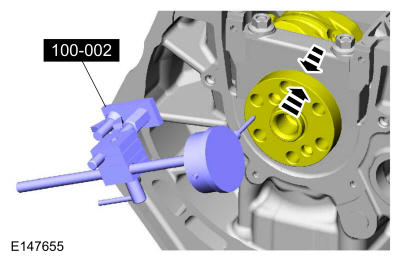

- Position the crankshaft to the rear of the cylinder block.
- Zero the Dial Indicator Gauge with Holding Fixture. Use Special Service Tool: 100-002 (TOOL-4201-C) Holding Fixture with Dial Indicator Gauge.
- Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- If the crankshaft end play exceeds the specified range, install new parts as necessary.
  Distance

  : 0.01-0.02in (.22-.45mm)
Courtesy of FORD MOTOR COMPANY
NOTE: If reusing the connecting rod bearings, install them in their original positions and orientation as noted during disassembly.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

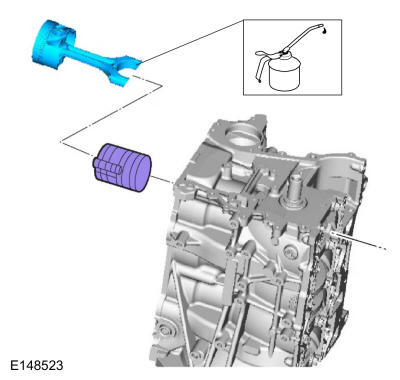

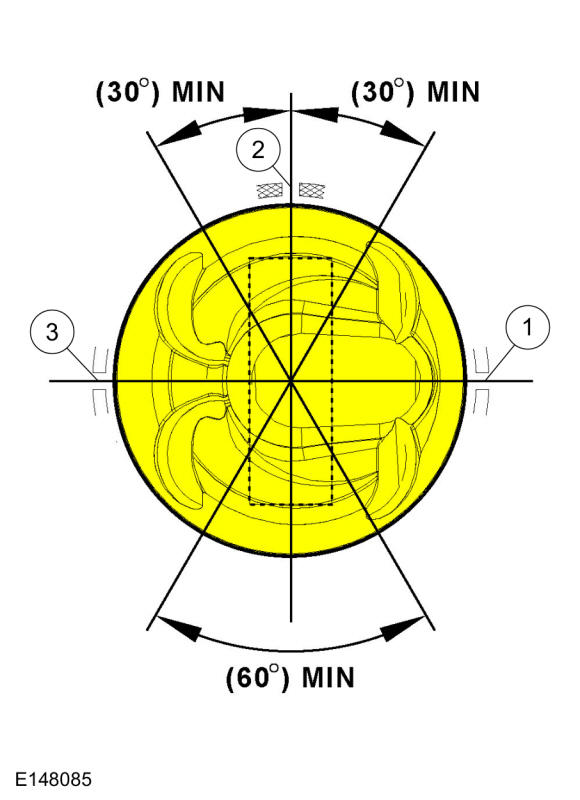

NOTE: Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.

NOTE: Make sure the piston arrow on top is facing toward the front of the engine.

Use the General Equipment: Piston Ring Compressor

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY

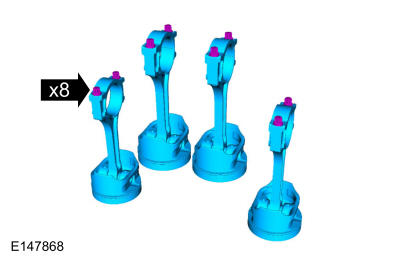

NOTE: The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.

NOTE: Install connecting rod caps and bolts on the connecting rods for cylinders 1 and 4 first and tighten. Then rotate crankshaft 180 degrees and install connecting rod caps and bolts on connecting rods for cylinders 2 and 3 and tighten.

NOTE: After installation of each connecting rod cap, rotate the crankshaft to verify smooth operation.

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 21 lb.ft (29 Nm)

Stage 3: 90 °

Courtesy of FORD MOTOR COMPANY

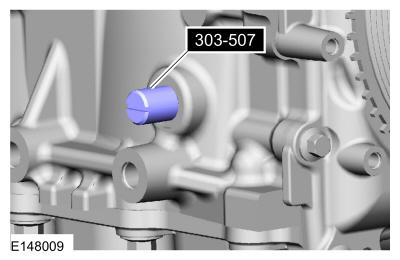

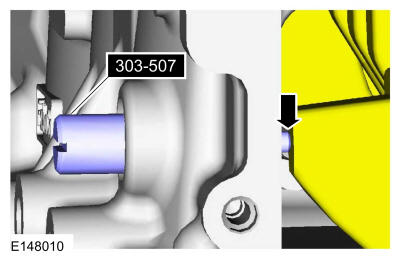

- Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
- Rotate the crankshaft slowly clockwise until the crankshaft balance weight is up against the TDC Timing Peg. The engine is now at TDC and must remain at the TDC position until the timing drive components and crankshaft pulley are installed.
Courtesy of FORD MOTOR COMPANY

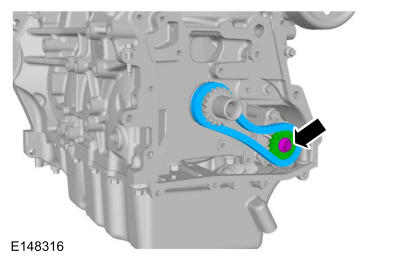

Prime the oil pump. Add 2 tablespoons of clean engine oil to the oil pump and rotate the oil pump by hand.
NOTE: Clean the oil pump and cylinder block mating surfaces.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

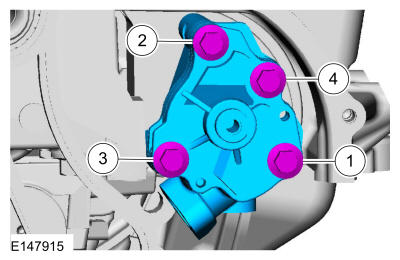

Torque:

Stage 1: 89 lb.in (10 Nm)

Stage 2: 177 lb.in (20 Nm)

Fig 4: Oil Pump Tightening Sequence (HEV)
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

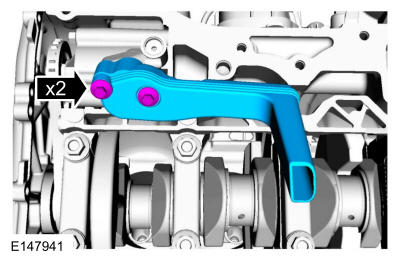

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: Early build engines are equipped with a diamond washers on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

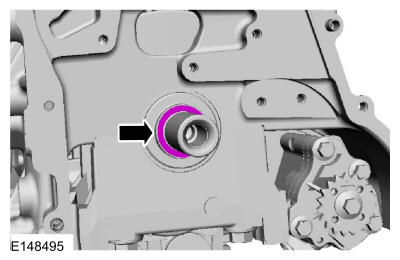

If equipped, install the diamond washer onto the crankshaft.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

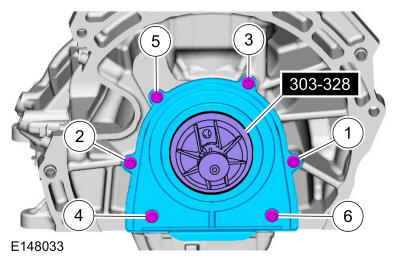

Use Special Service Tool: 303-328 (T88P-6701-B1) Replacer, Rear Seal.
Torque: 89 lb.in (10 Nm)

Courtesy of
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

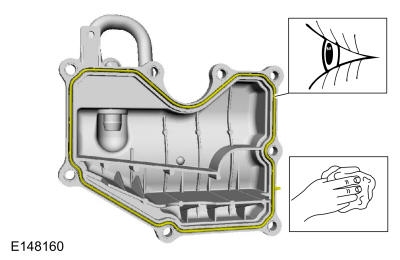

Clean and inspect all mating surfaces of the engine and oil pan.

Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

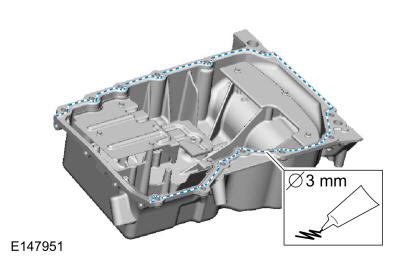

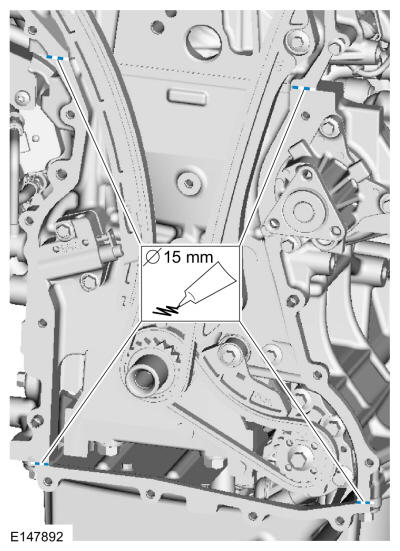

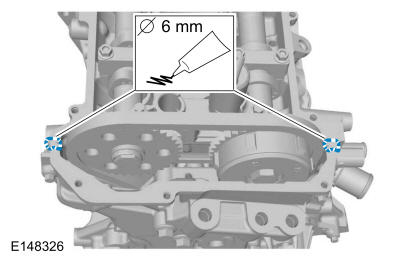

NOTE: If the oil pan is not secured within 10 minutes of sealant application, the sealant must be removed and the sealing area cleaned with metal surface prep. Allow to dry until there is no sign of wetness, or 10 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Finger-tight.

Courtesy of FORD MOTOR COMPANY

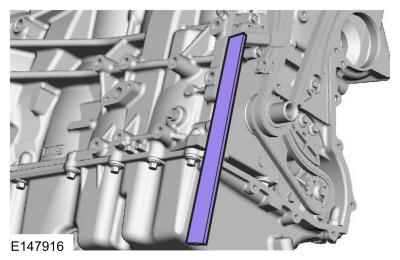

Use the General Equipment: Round-Ended Steel Rule

Courtesy of FORD MOTOR COMPANY

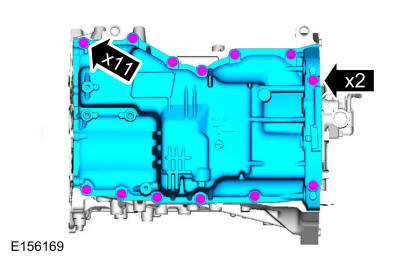

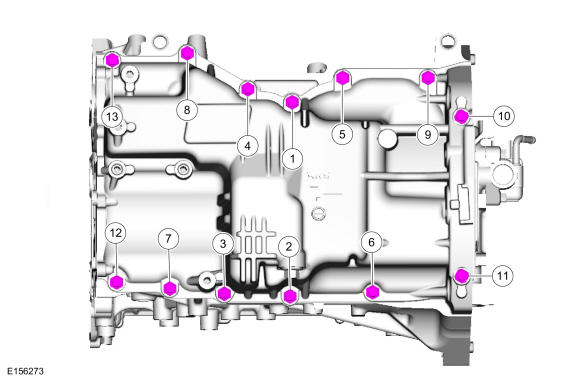

Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY

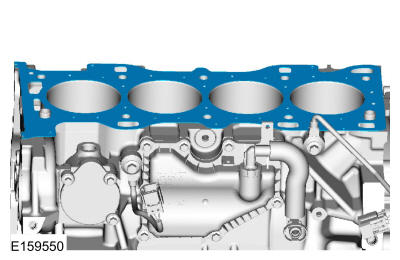

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Clean the cylinder head-to-cylinder block mating surface of both the cylinder head and the cylinder block.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

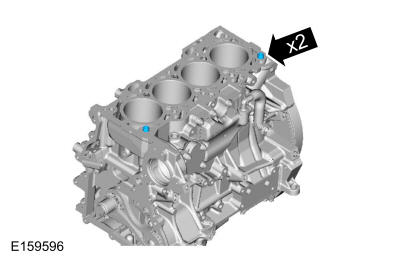

NOTE: Dowels must be fully seated in the cylinder block.

Courtesy of FORD MOTOR COMPANY

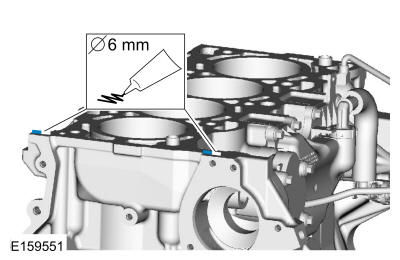

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
NOTE: The cylinder head bolts are torque-to-yield and must not be reused. New cylinder head bolts must be installed.

NOTE: Lubricate the bolts with clean engine oil prior to installation.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 133 lb.in (15 Nm)

Stage 3: 33 lb.ft (45 Nm)

Stage 4: 90 °

Stage 5: 90 °

Courtesy of FORD MOTOR COMPANY
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
NOTE: If any new parts are being installed (cylinder head, valves, tappets, camshafts) it is necessary to check the valve clearance.

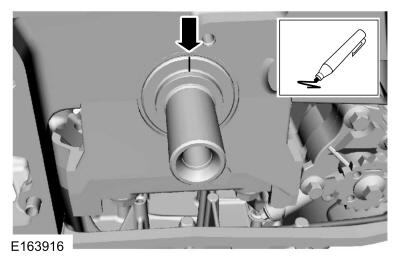

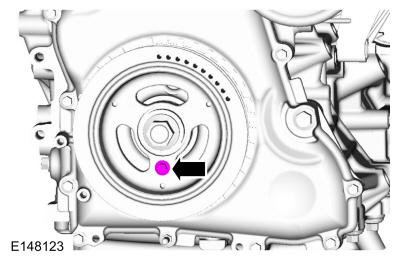

Place a paint mark on the crankshaft at the 12 o'clock position.

Courtesy of FORD MOTOR COMPANY
- Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
Courtesy of FORD MOTOR COMPANY
NOTE: Rotating the crankshaft will position all of the pistons below the deck of the cylinder block and allow the camshafts to be installed and the valve clearance checked without the possibility of damage to the valves or pistons.

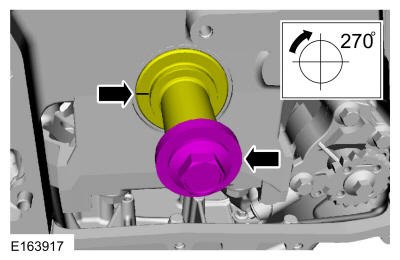

Using the crankshaft bolt and washer, rotate the crankshaft clockwise 270 degrees until the paint mark is at the 9 o'clock position.

Courtesy of FORD MOTOR COMPANY

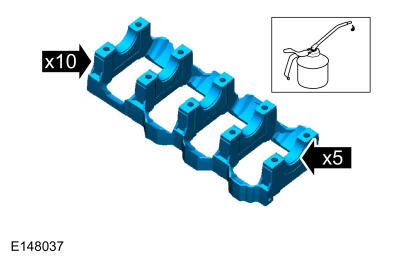

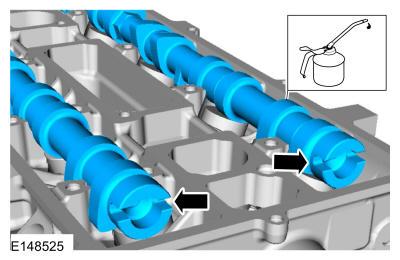

NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the disassembly procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position, can cause severe damage to the valves and pistons.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY

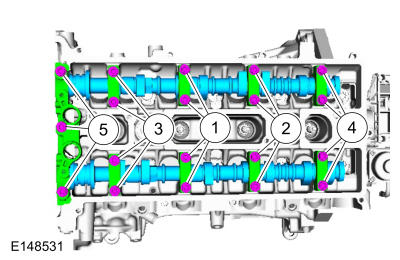

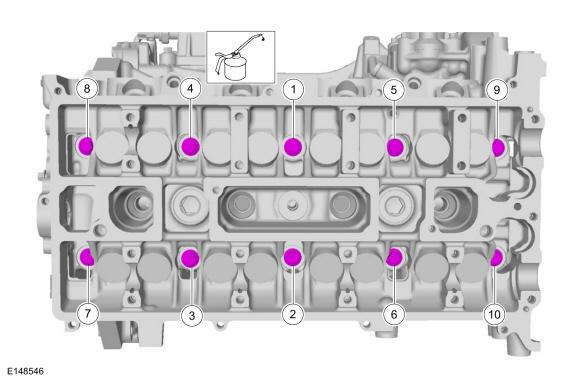

Tighten the camshaft bearing cap bolts one at a time until finger-tight
Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY
1. Using the flats of the camshaft, rotate the camshaft to place the cam lobe at base circle, with the lobe pointed away from the tappet.

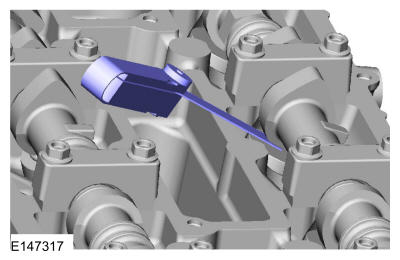

2. Use a feeler gauge to measure the clearance of each valve and record its location. Use the General Equipment: Feeler Gauge
3. Repeat to measure all of the lobe/tappet clearances.
Courtesy of FORD MOTOR COMPANY
NOTE: The number on the valve tappet only reflects the digits that follow the decimal. For example, a tappet with the number 0.650 has the thickness of 3.650 mm.

NOTE: Select tappets using this formula: tappet thickness = measured clearance + the existing tappet thickness - nominal clearance.

NOTE: The nominal clearance is:
- intake: 0.25 mm (0.0095 in).
- exhaust: 0.36 mm (0.0142 in).
NOTE: The acceptable clearances after being fully installed are:
- intake: 0.19-0.31 mm (0.007-0.012 in).
- exhaust: 0.30-0.42 mm (0.012-0.017 in).
Select the closest tappet size to the ideal tappet thickness available and mark the installation location.
NOTE: Failure to follow the camshaft loosening procedure can result in damage to the camshafts.

NOTE: Mark the location and orientation of each camshaft bearing cap.

Loosen the camshaft bearing cap bolts, in sequence, one turn at a time until all tension is released from the camshaft bearing caps.

Courtesy of FORD MOTOR COMPANY
- Install Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.
Courtesy of FORD MOTOR COMPANY

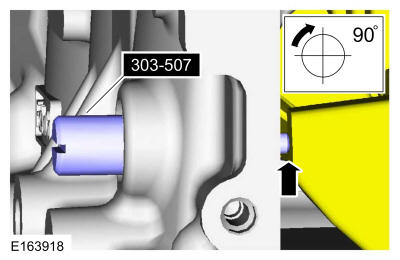

NOTE: Rotating the crankshaft will position the engine at TDC and allow you to install the camshafts in the same position as noted during the disassembly.

Rotate the crankshaft clockwise 90 degrees so the crankshaft contacts the Timing Peg, Crankshaft TDC 303-507.

Courtesy of FORD MOTOR COMPANY

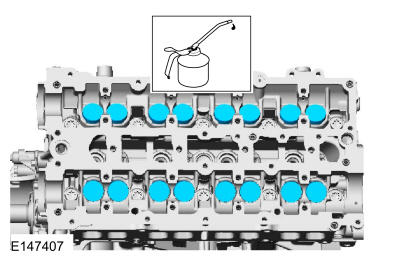

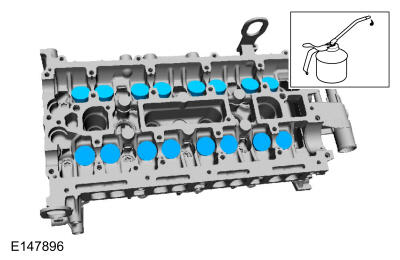

If necessary, replace any tappets with the correct tappets selected during the valve clearance check.
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Install the camshafts with the alignment slots in the camshafts lined up so the Camshaft Alignment Plate can be installed without rotating the camshafts. Make sure the lobes on the No. 1 cylinder are in the same position as noted in the disassembly procedure. Rotating the camshafts when the timing chain is removed, or installing the camshafts 180 degrees out of position, can cause severe damage to the valves and pistons.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY

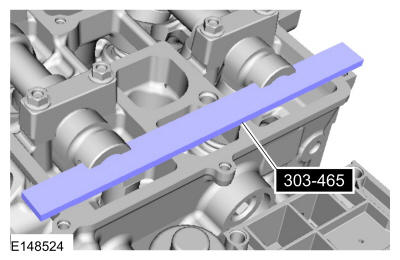

NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

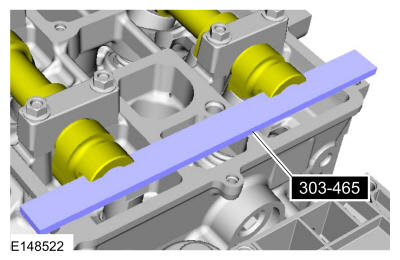

Install Special Service Tool: 303-465 Tool, Camshaft Align Timing.

Courtesy of FORD MOTOR COMPANY
Tighten the camshaft bearing cap bolts one at a time until finger-tight
Torque:

Stage 1: 62 lb.in (7 Nm)

Stage 2: 142 lb.in (16 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 97 lb.in (11 Nm)

Courtesy of FORD MOTOR COMPANY

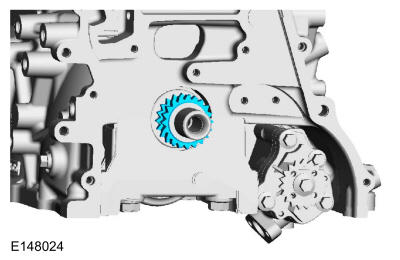

NOTE: Before installation, clean and inspect the diamond washer for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: The crankshaft sprocket flange must be facing away from the engine block.

Install a diamond washer on both sides of the crankshaft sprocket.

Courtesy of FORD MOTOR COMPANY

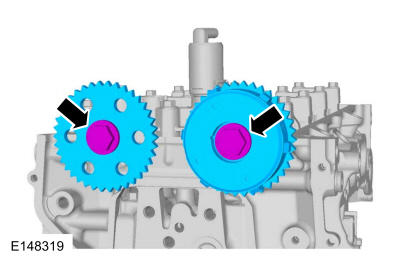

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

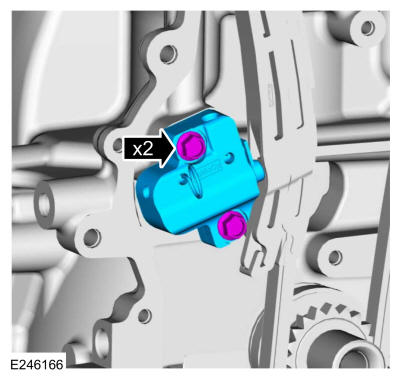

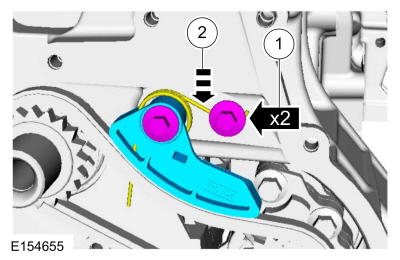

- Torque: 89 lb.in (10 Nm)
- Hook the tensioner spring around the shoulder bolt.
Courtesy of FORD MOTOR COMPANY

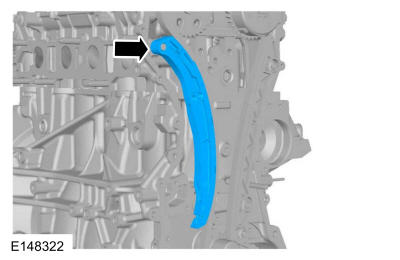

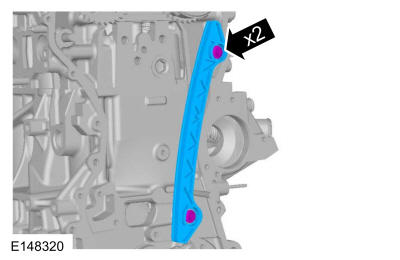

NOTE: Do not tighten the bolts at this time.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

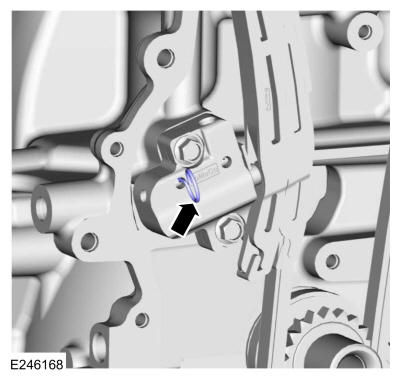

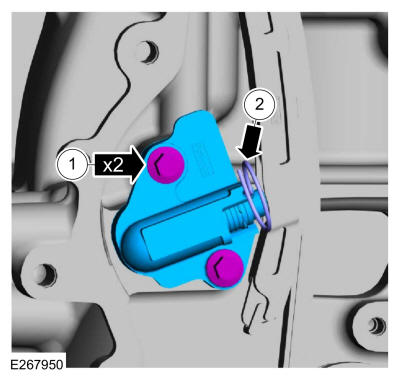

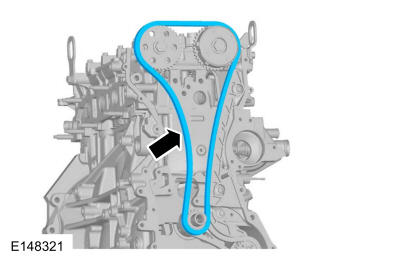

NOTE: If equipped with aluminum timing chain tensioner.

NOTE: If the timing chain tensioner plunger is not pinned in the compressed position, follow the next step.

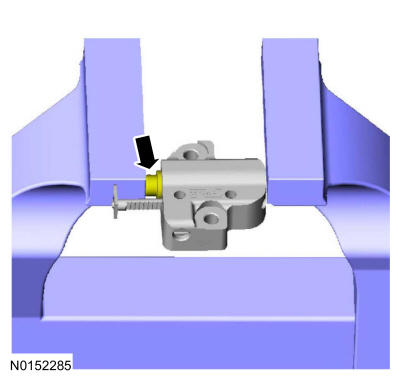

Reset the timing chain tensioner.

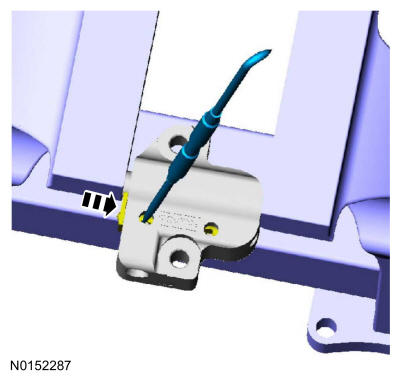

1. Position the timing chain tensioner in a soft-jawed vise.

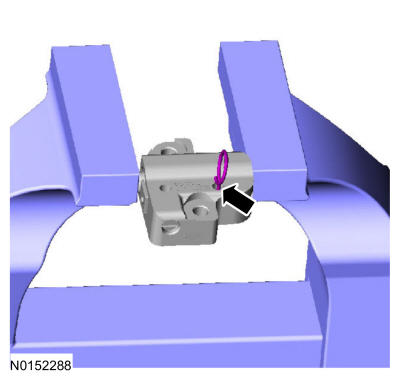

2. Spread the ends of the ratchet wire clip apart.
3. Using the soft-jawed vise, compress the plunger to the reset position.
4. Install a locking pin in the 2 holes of the timing chain tensioner body to hold the plunger in place.
Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with aluminum timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.
1. Install the timing chain tensioner and the bolts.
  Torque: 89 lb.in (10 Nm)
2. Remove the locking pin.
Courtesy of FORD MOTOR COMPANY

NOTE: If equipped with cast iron timing chain tensioner.

NOTE: If the timing chain tensioner plunger and ratchet assembly are not pinned in the compressed position, follow the next 4 steps.
NOTE: Do not compress the ratchet assembly. This will damage the ratchet assembly.

Using the edge of a vise, compress the timing chain tensioner plunger.

Courtesy of FORD MOTOR COMPANY
Using a small pick, push back and hold the ratchet mechanism.

Courtesy of FORD MOTOR COMPANY
While holding the ratchet mechanism, push the ratchet arm back into the tensioner housing.

Courtesy of FORD MOTOR COMPANY
Install a locking pin into the hole in the tensioner housing to hold the ratchet assembly and the plunger in during installation.

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

NOTE: Do not remove the locking pin until the tensioner bolts are tightened.

Install the timing chain tensioner and the bolts.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped with cast iron timing chain tensioner.

Remove the locking pin.

Courtesy of FORD MOTOR COMPANY

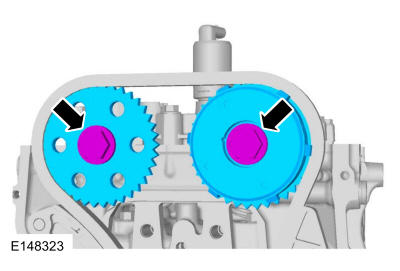

NOTE: The Camshaft Alignment Plate is for camshaft alignment only. Using this tool to prevent engine rotation can result in engine damage.

NOTE: Use the flats on the camshafts to prevent camshaft rotation.

Torque:

Stage 1: 30 lb.ft (40 Nm)

Stage 2: 60 °

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges, which make leak paths. Use a plastic scraping tool to remove traces of sealant.

Clean and inspect the mounting surfaces of the engine and the front cover.

Material: Motorcraft ® Silicone Gasket Remover / ZC-30-A

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B

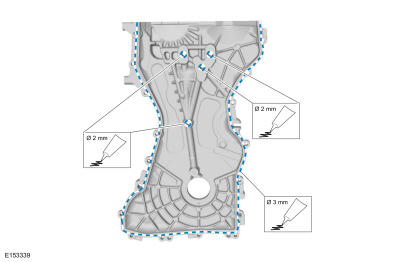

NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft ® Metal Surface Prep.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY
NOTE: The engine front cover must be secured within 10 minutes of Silicone Gasket and Sealant application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with Motorcraft ® Metal Surface Prep.

Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

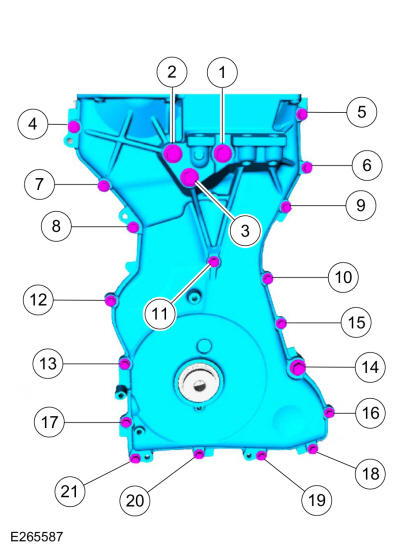

Torque:
Bolts 1 - 3: 35 lb.ft (48 Nm)

Bolts 4 - 13: 89 lb.in (10 Nm)

Bolt 14: 35 lb.ft (48 Nm)

Bolts 15 - 21: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

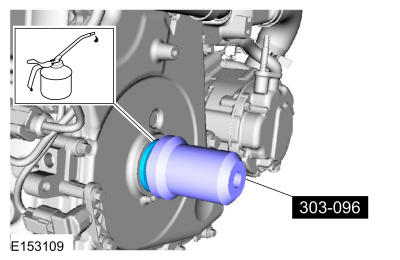

NOTE: Remove the through-bolt from the Camshaft Front Oil Seal Installer.

Use Special Service Tool: 303-096 (T74P-6150-A) Installer, Camshaft Front Oil Seal.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
NOTE: If equipped, the diamond washer should be cleaned and inspected for any damage. If damage is evident, replace the diamond washer. If no damage, the diamond washer is to be reused. If the diamond washer is not installed, engine damage may occur.

NOTE: Early build engines are equipped with a diamond washers on each side of the crankshaft sprocket. Late build engines have a laser etched crankshaft sprocket and do NOT require diamond washers. If an early build engine requires crankshaft sprocket replacement, discard the diamond washers and the sprocket and install a new laser etched sprocket (service part). Diamond washers should NEVER be installed with the laser etched sprocket.

If equipped, install the diamond washer onto the crankshaft.

Courtesy of FORD MOTOR COMPANY
Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
NOTE: Do not install the crankshaft pulley bolt at this time.

Courtesy of FORD MOTOR COMPANY

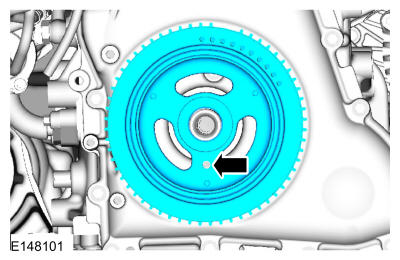

NOTE: Only hand-tighten the 6 mm x 18 mm bolt or damage to the front cover can occur.

NOTE: This step will correctly align the crankshaft pulley to the crankshaft.

General Equipment: M6 Bolt.

Courtesy of FORD MOTOR COMPANY

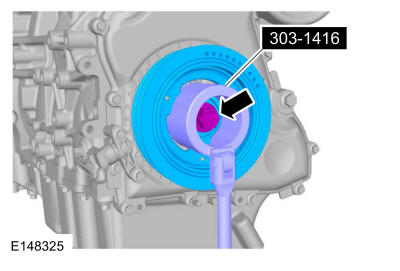

NOTE: The crankshaft must remain in the TDC position during installation of the pulley bolt or damage to the engine can occur. Therefore, the crankshaft pulley must be held in place with the Crankshaft Damper Holding Tool and the bolt should be installed using hand tools only.

NOTE: Install a new crankshaft pulley bolt.

Use Special Service Tool: 303-1416 Tool, Crank Damper Holding.

Torque:

Stage 1: 74 lb.ft (100 Nm)

Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY
Do not tighten the bolts at this time.

Courtesy of FORD MOTOR COMPANY

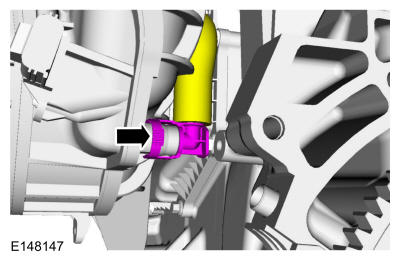

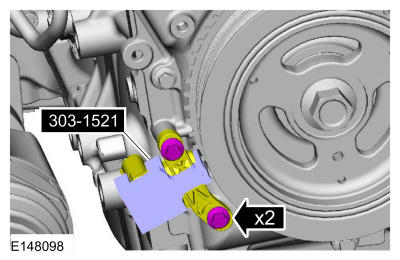

Install the Special Tool onto the CKP sensor and the tooth of the crankshaft pulley trigger wheel. Use Special Service Tool: 303-1521 Alignment Tool, Crankshaft Position Sensor.
Torque: 62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY
Remove.

Courtesy of FORD MOTOR COMPANY

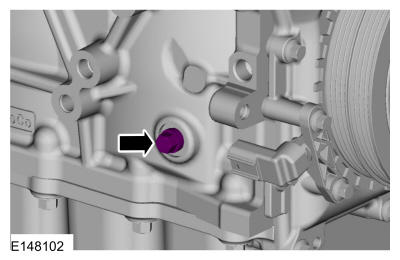

Remove Special Service Tool: 303-507 Timing Peg, Crankshaft TDC.

Courtesy of FORD MOTOR COMPANY
Torque: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
Remove Special Service Tool: 303-465 Tool, Camshaft Align Timing.

Courtesy of FORD MOTOR COMPANY
NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths.

Clean the valve cover gasket surfaces.

Material: Motorcraft ® Metal Surface Prep Wipes / ZC-31-B
NOTE: Installation of a new VCT solenoid seal is required if a damaged seal was removed during disassembly of the engine.

Use Special Service Tool: 303-1247 VCT Spark Plug Tube Seal Remover and Installer.205-153 (T80T-4000-W) Handle.

Courtesy of FORD MOTOR COMPANY

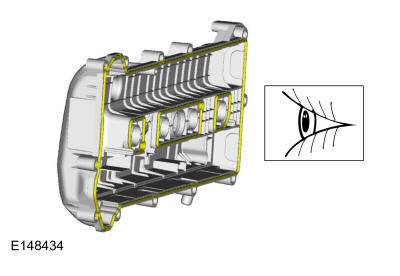

NOTE: Inspect and if necessary, install new valve cover gaskets.

Courtesy of FORD MOTOR COMPANY
Material: Motorcraft ® Silicone Gasket and Sealant / TA-30 (WSE-M4G323-A4)

Courtesy of FORD MOTOR COMPANY

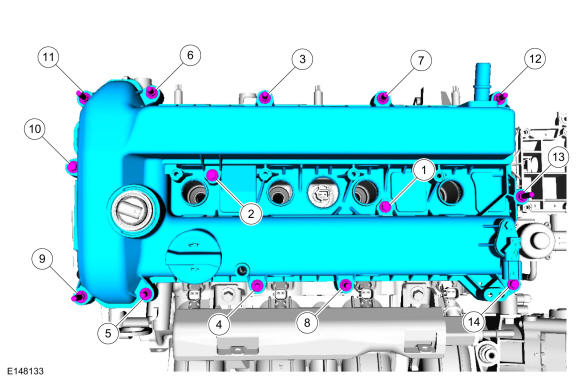

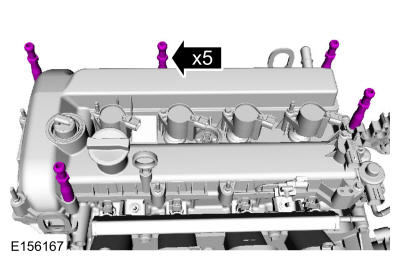

NOTE: The valve cover must be secured within 10 minutes of silicone gasket application. If the valve cover is not secured within 10 minutes, the sealant must be removed and the sealing area cleaned with metal surface cleaner.

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

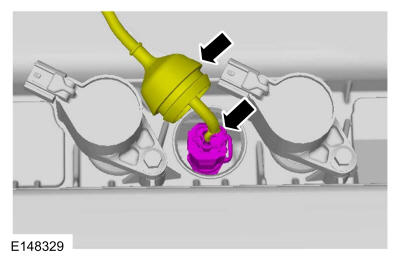

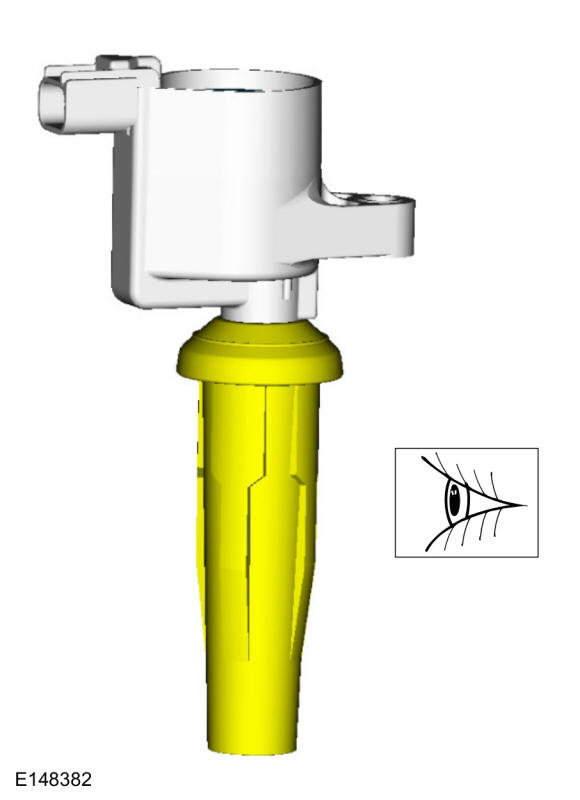

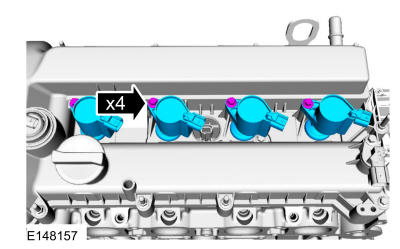

Apply dielectric compound to the inside of the coil-on-plug boots.
Material: Motorcraft ® Silicone Brake Caliper Grease and Dielectric Compound / XG-3-A (ESE-M1C171-A)

Torque: 71 lb.in (8 Nm)

Courtesy of FORD MOTOR COMPANY

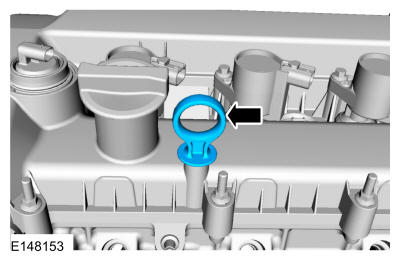

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

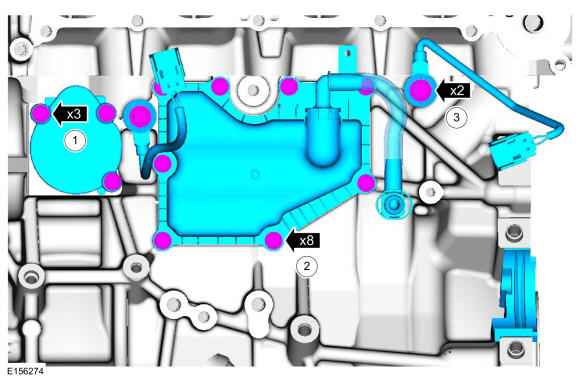

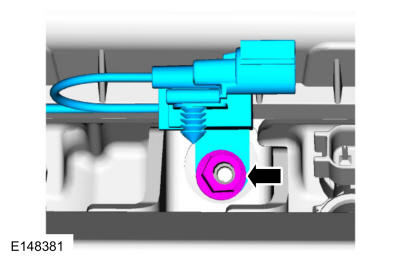

NOTE: The front KS must be installed in the 6 o'clock position and the rear KS must be installed in the 12 o'clock position. The KS must not touch the crankcase vent oil separator.

Torque:

1: 80 lb.in (9 Nm)

2: 89 lb.in (10 Nm)

3: 177 lb.in (20 Nm)

Courtesy of FORD MOTOR COMPANY
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

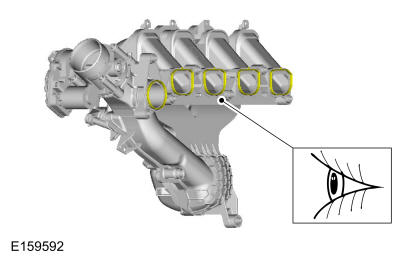

NOTE: Visually inspect the intake manifold gaskets for nicks, cuts and abrasions. If these conditions are not present, the gaskets may be re-used.

Courtesy of FORD MOTOR COMPANY

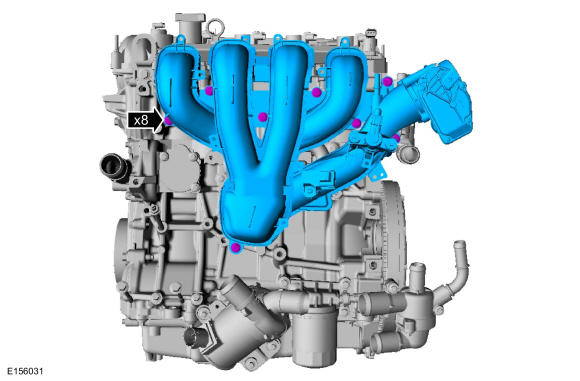

Torque: 159 lb.in (18 Nm)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

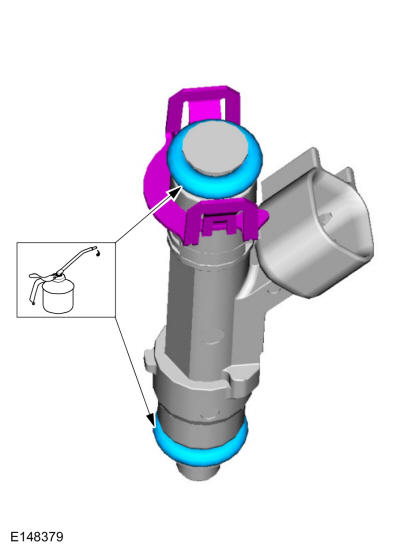

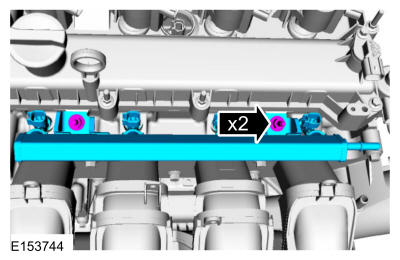

NOTE: Use O-ring seals that are made of special fuel-resistant material. Use of ordinary O-rings can cause the fuel system to leak. Do not reuse the O-ring seals.

Material: Motorcraft ® SAE 0W-20 Synthetic Blend Motor Oil / XO-0W20-QSP (WSS-M2C947-A)

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Torque: 17 lb.ft (23 Nm)

Courtesy of FORD MOTOR COMPANY

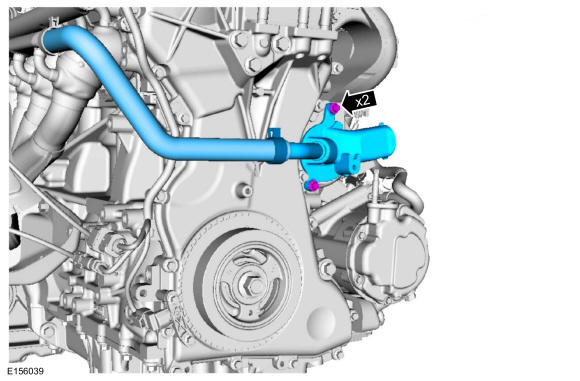

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

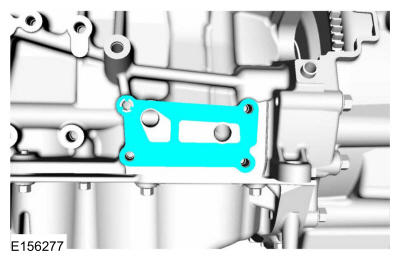

Courtesy of FORD MOTOR COMPANY

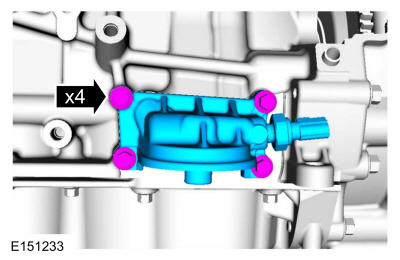

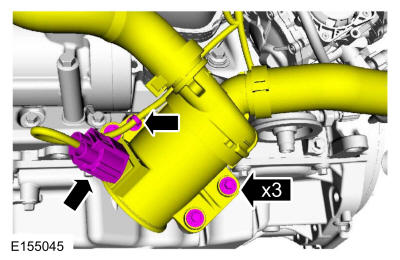

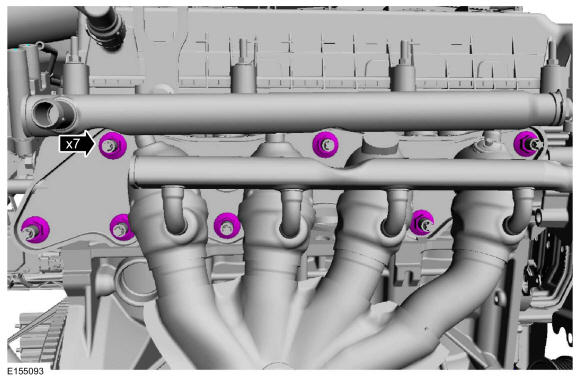

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

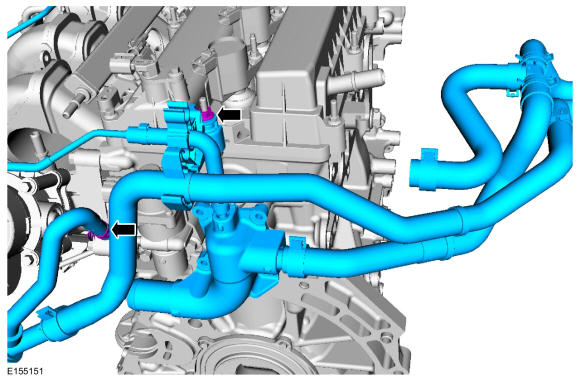

Torque: 80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

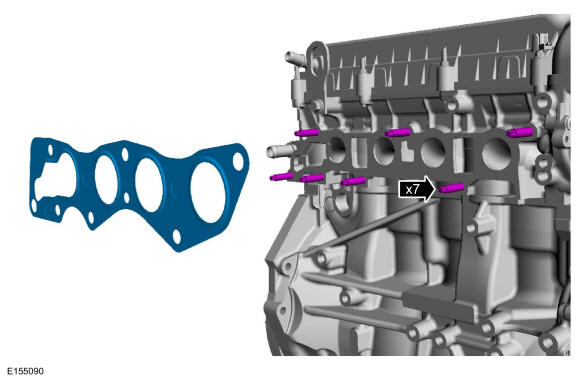

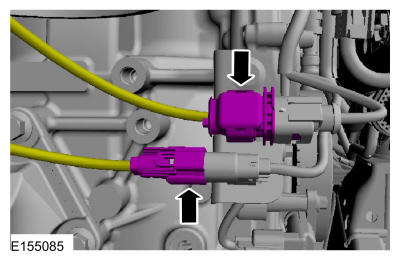

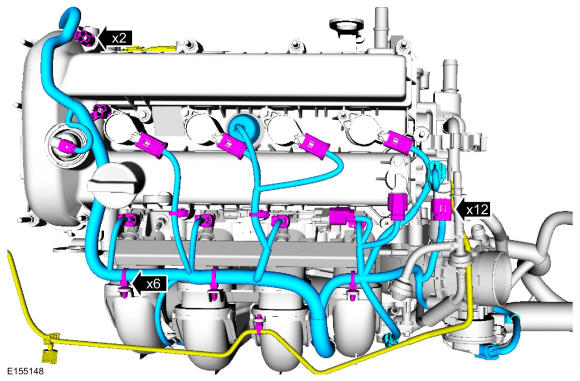

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Torque: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

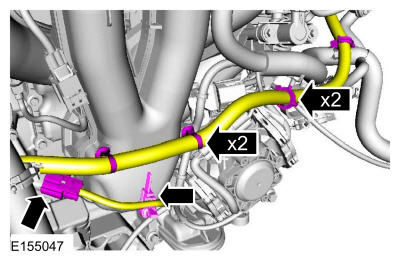

Courtesy of FORD MOTOR COMPANY

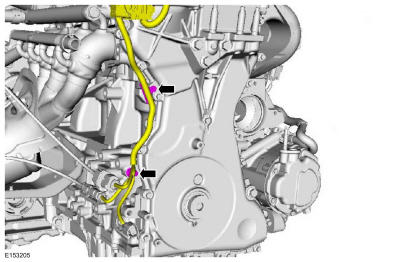

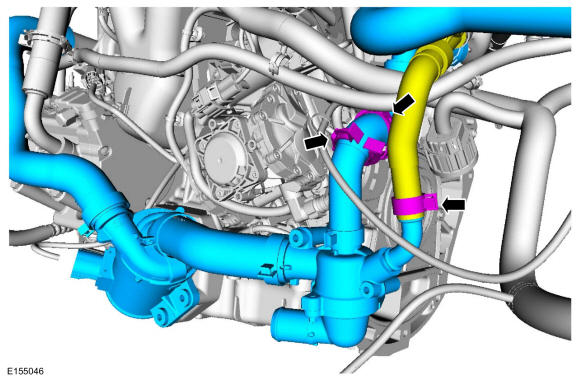

Courtesy of FORD MOTOR COMPANY

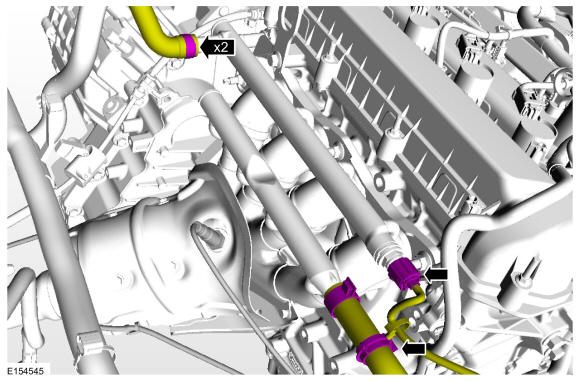

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

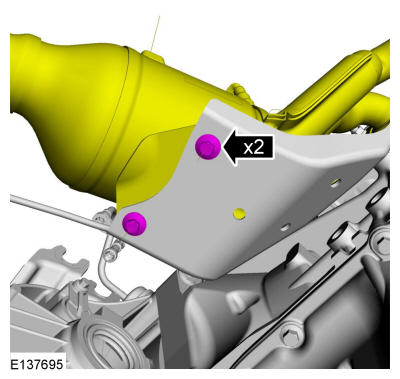

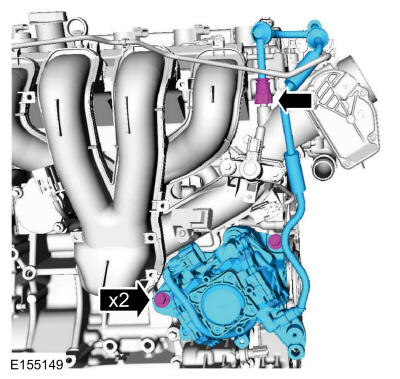

Torque: 89 lb.in (10 Nm)

Courtesy of FORD MOTOR COMPANY

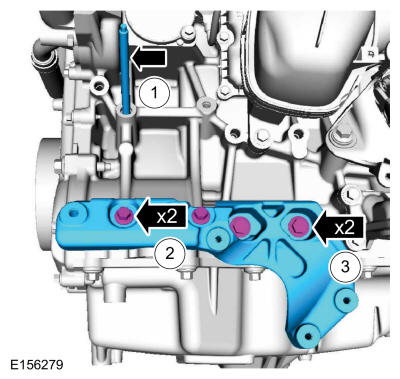

Torque:
1: 71 lb.in (8 Nm)

2: 19 lb.ft (26 Nm)

3: 35 lb.ft (48 Nm)

Courtesy of FORD MOTOR COMPANY

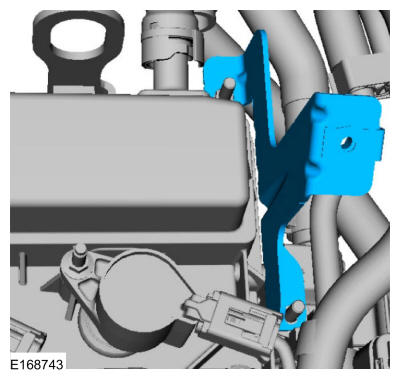

Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

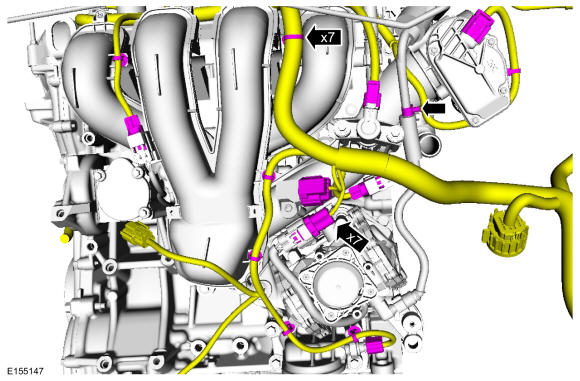

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
Torque:
Stage 1: 93 lb.in (10.5 Nm)

Stage 2: 90 °

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

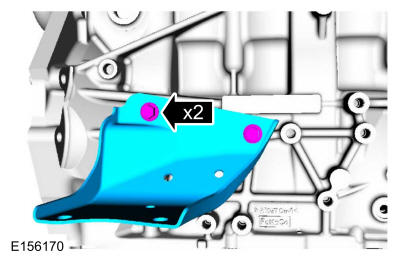

Torque 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 150 lb.in (17 Nm)

Courtesy of FORD MOTOR COMPANY

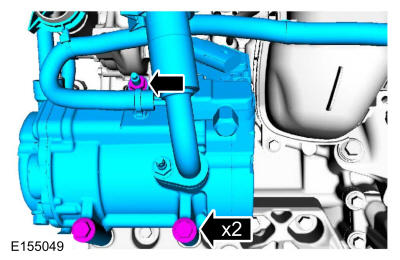

Torque: 41 lb.ft (55 Nm)

Courtesy of FORD MOTOR COMPANY
Torque: 18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

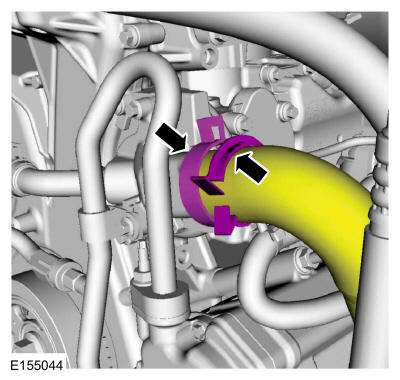

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY

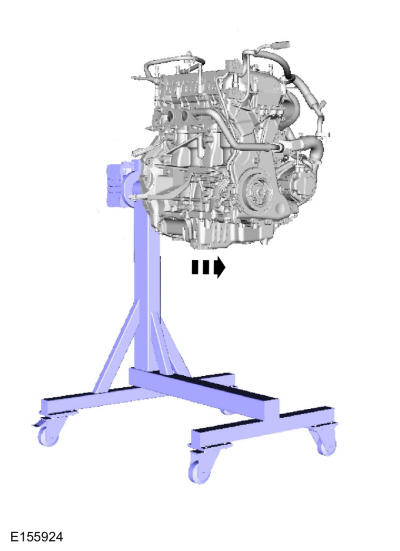

Install Special Service Tool: 300-OTC1819E 2, 200# Floor Crane, Fold Away.

Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
NOTE: Use a universal pulley holder (such as an OTC 4754, or equivalent).

Install the flywheel and new bolts.
- Using a universal pulley holder, tighten the new crankshaft pulley bolts in sequence shown.
  Torque:

  Stage 1: 37 lb.ft (50 Nm)

  Stage 2: 59 lb.ft (80 Nm)

  Stage 3: 83 lb.ft (112 Nm)
Courtesy of FORD MOTOR COMPANY
Install the damper and the bolts.
- Using a universal pulley holder, tighten 2 turns at a time in sequence shown.
  Torque: 21 lb.ft (29 Nm)

Courtesy of FORD MOTOR COMPANY
