Section 125 (ENGINE EMISSION CONTROL SYSTEM - 2.0L DURATEC - HYBRID/ENERGI (103kW/140PS) (UA))
>>
Description And Operation
>>
Engine Emission Control - Component Location
>>
2.0L Duratec - Hybrid
2.0L Duratec - Hybrid
WARNING:
This page is about a different variant/trim than selected.
Courtesy of FORD MOTOR COMPANY

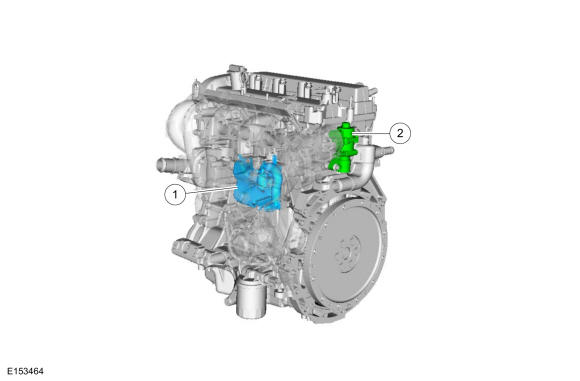

Item
Description
1
Crankcase vent oil separator
2
EGR valve
Courtesy of FORD MOTOR COMPANY
