Roof Opening Panel
Roof Opening Panel

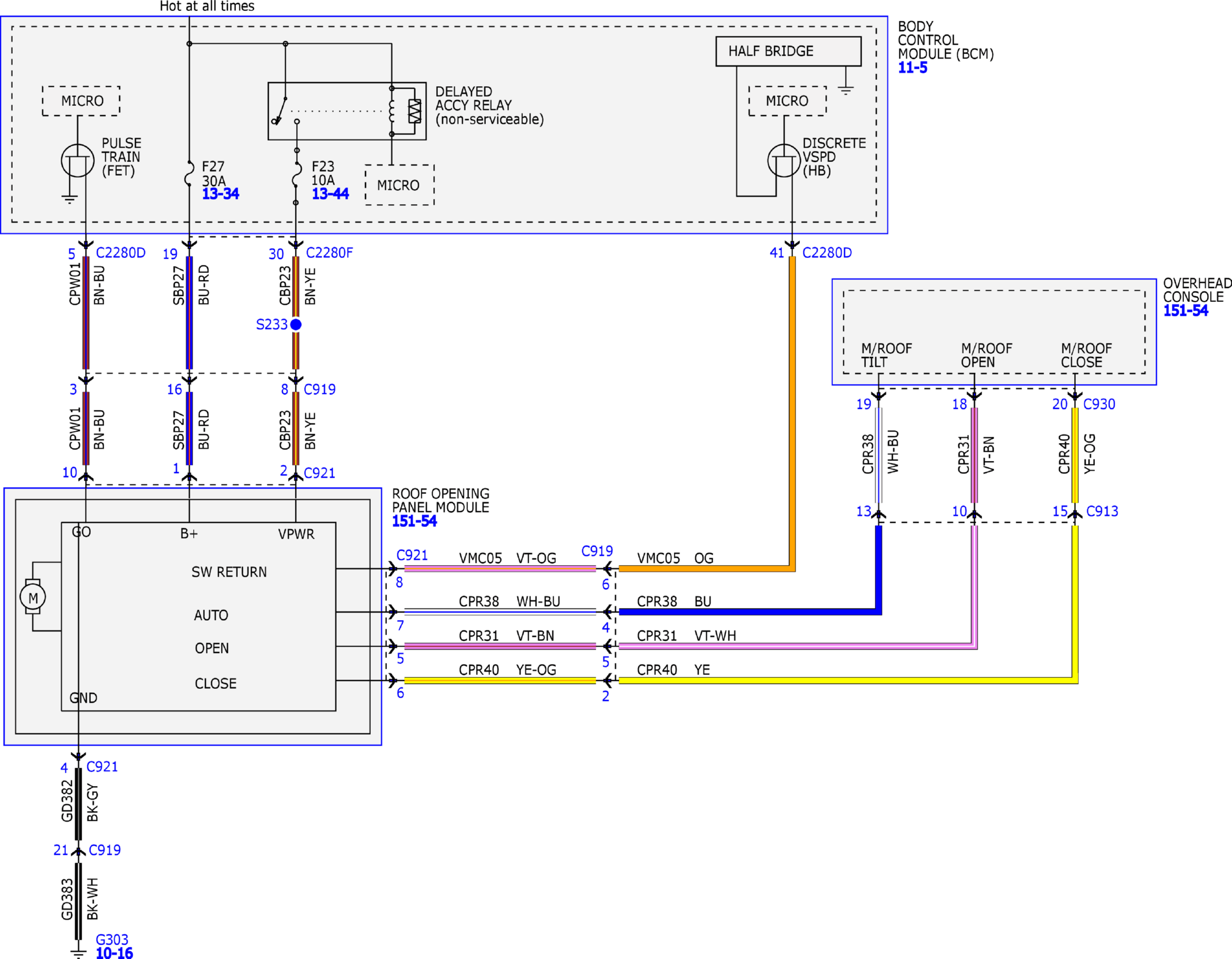

Fig 1: Roof Opening Panel Wiring Diagram
Courtesy of FORD MOTOR COMPANY
Courtesy of FORD MOTOR COMPANY
