Instrument Cluster

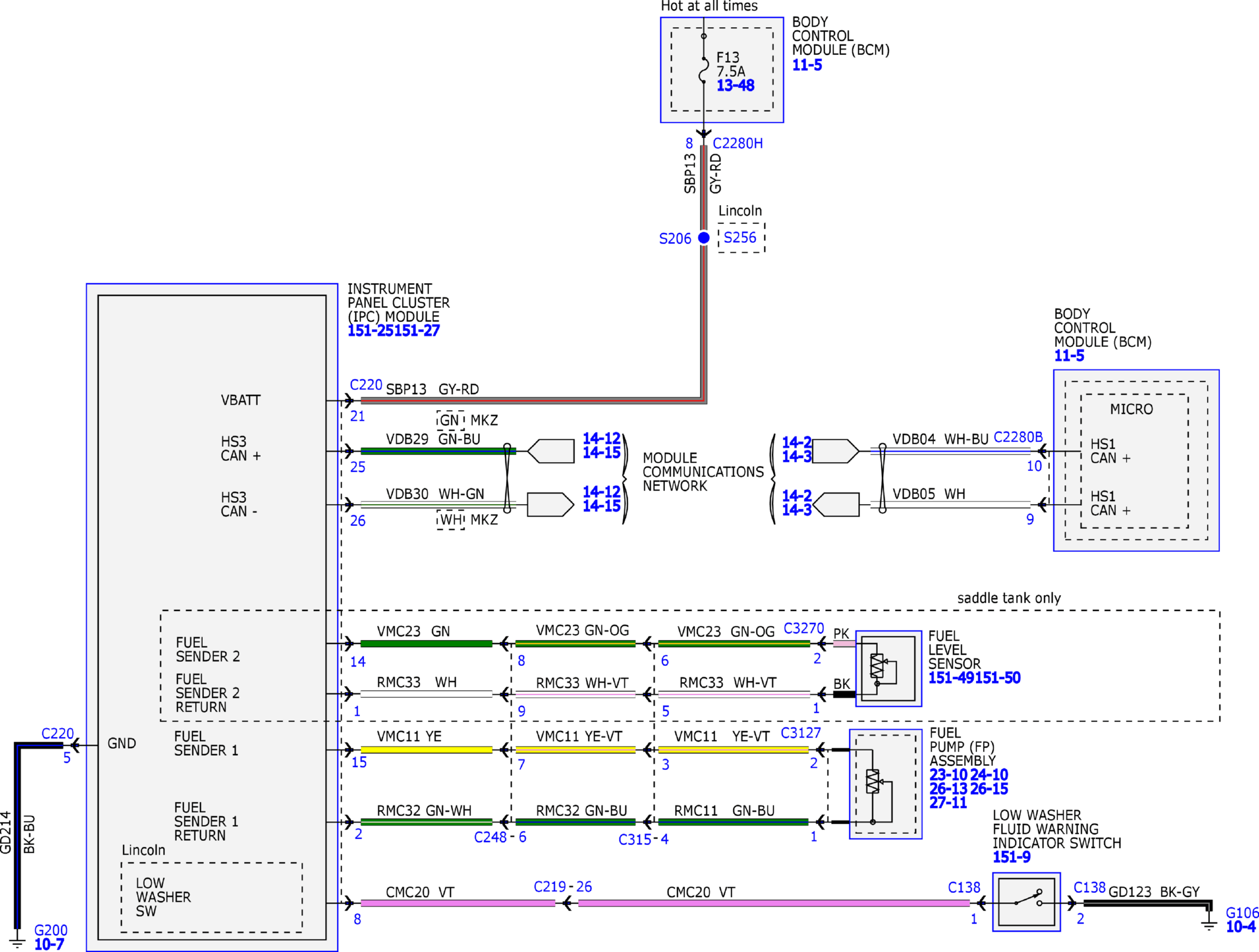

Fig 1: Instrument Cluster Wiring Diagram (1 Of 4)
GFDW79873Courtesy of FORD MOTOR COMPANY

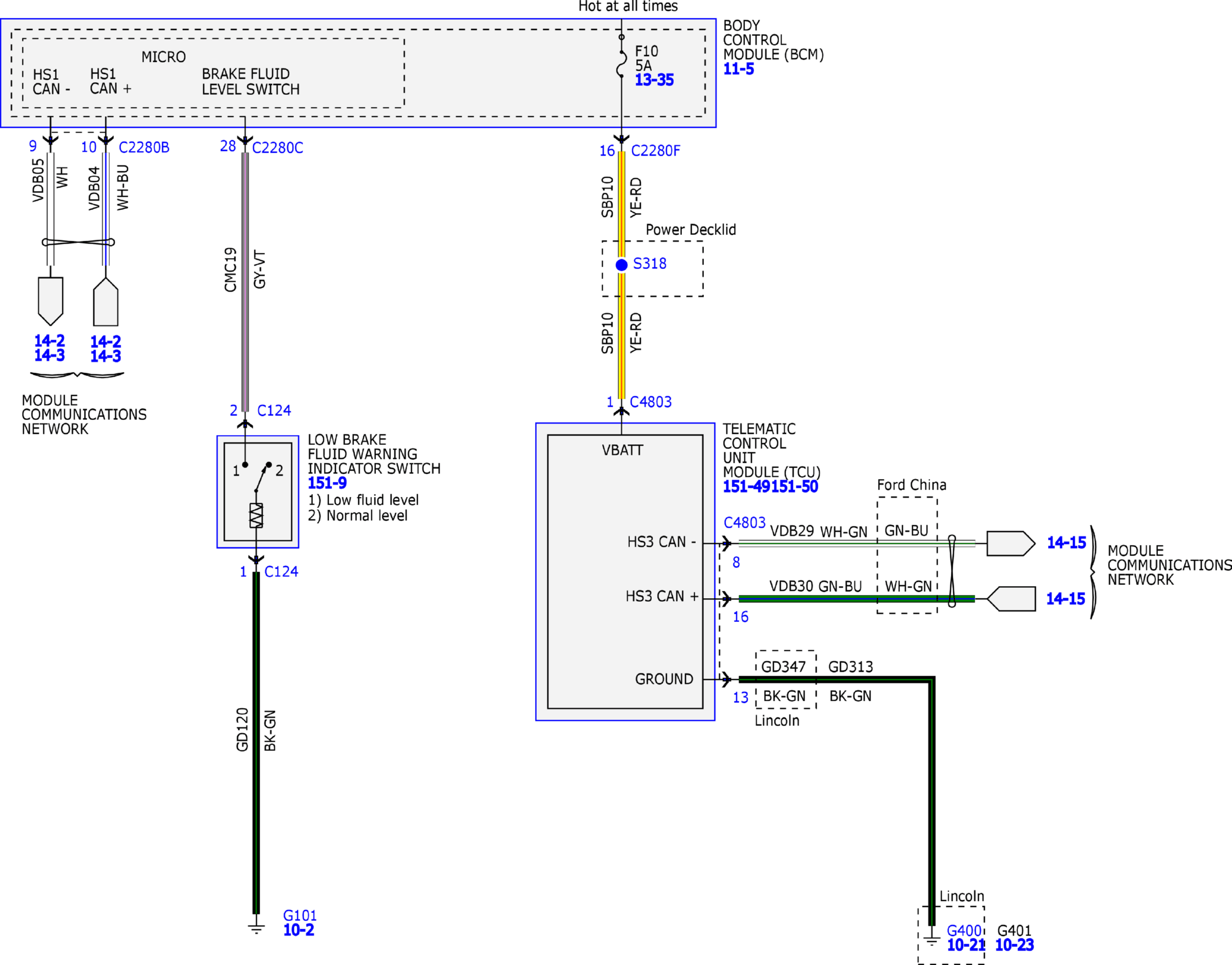

Fig 2: Instrument Cluster Wiring Diagram (2 Of 4)
GFDW79874Courtesy of FORD MOTOR COMPANY

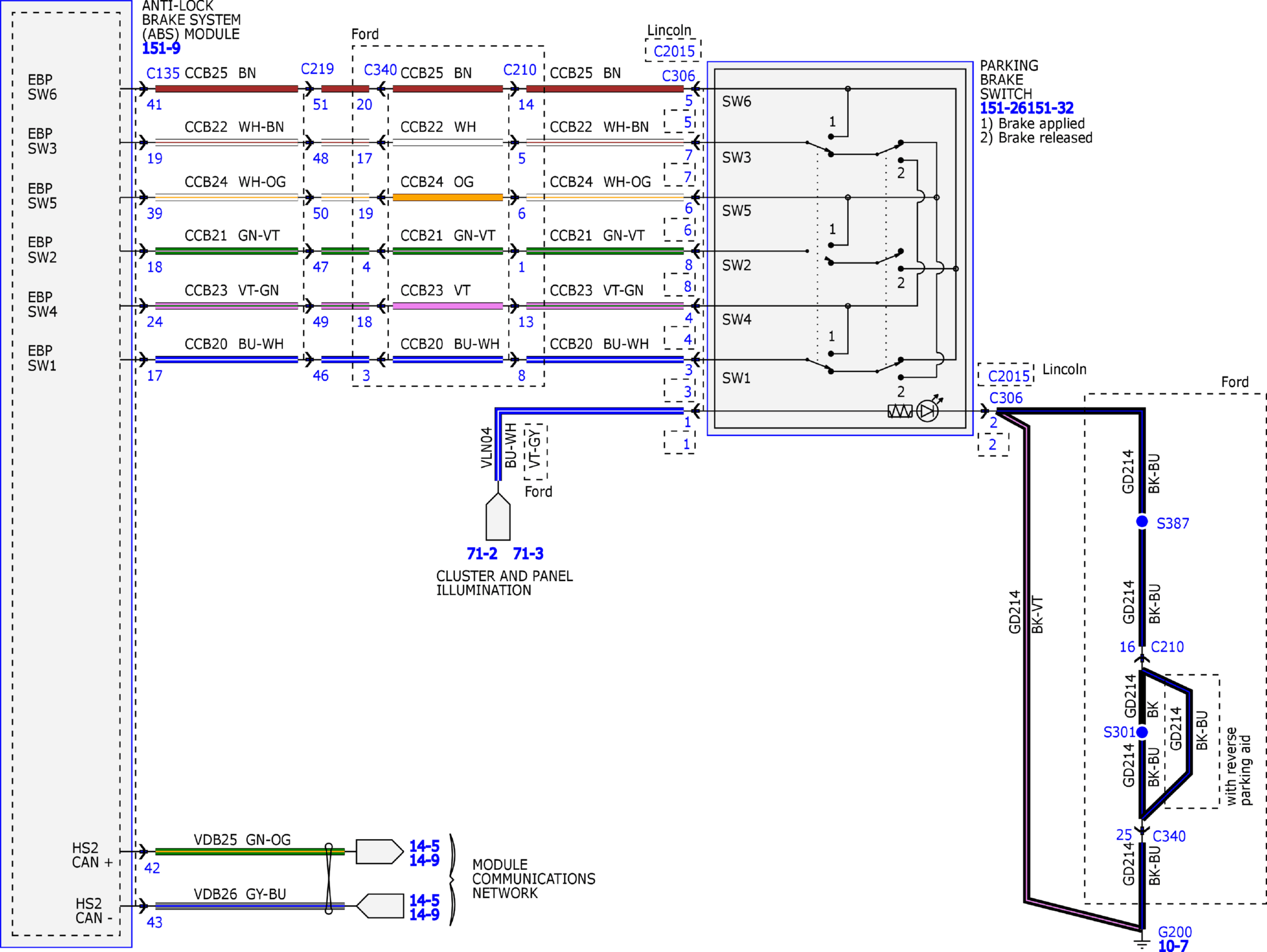

Fig 3: Instrument Cluster Wiring Diagram (3 Of 4)
GFDW79875Courtesy of FORD MOTOR COMPANY

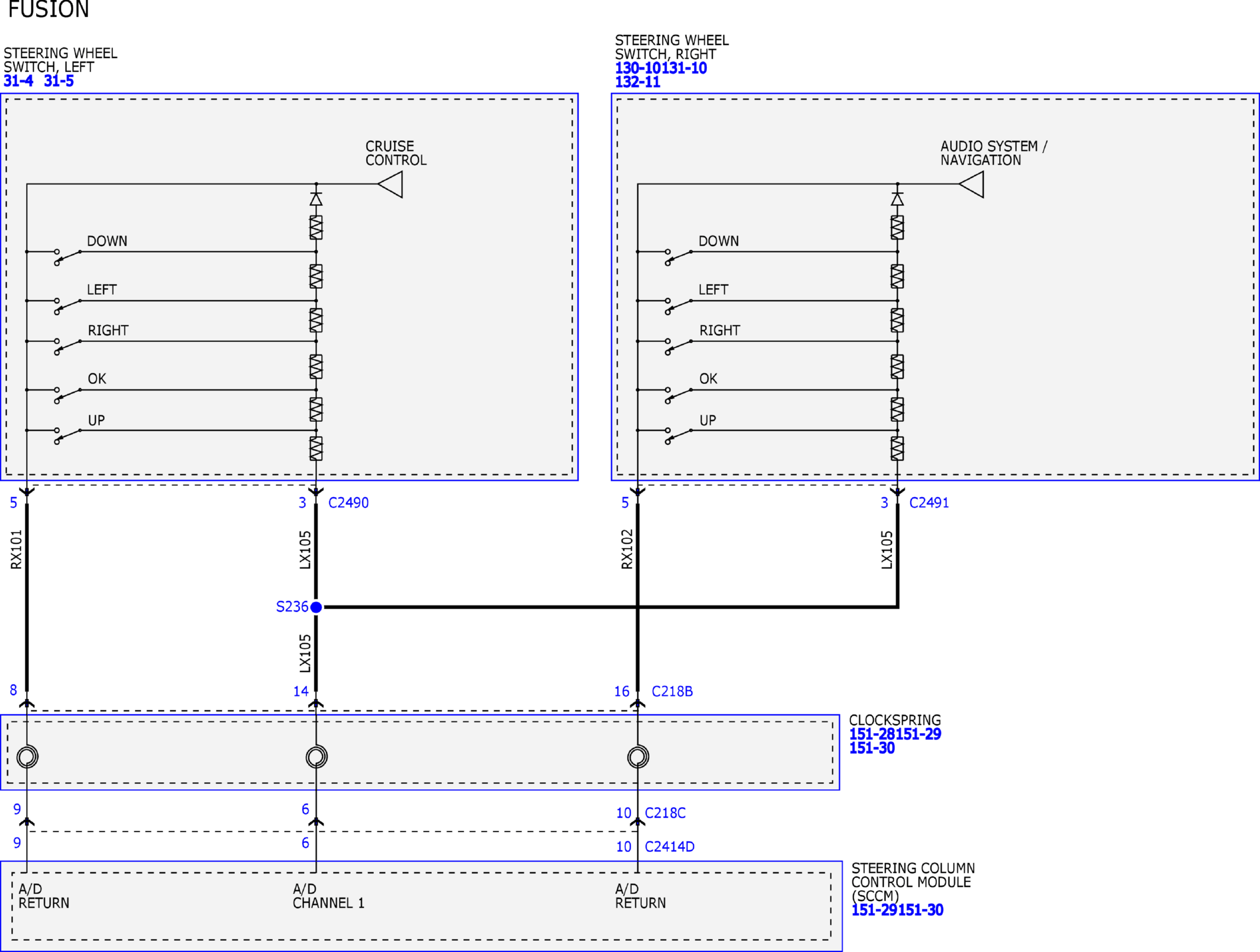

Fig 4: Instrument Cluster Wiring Diagram (4 Of 4)
GFDW79876Courtesy of FORD MOTOR COMPANY
