OEM Wiring Diagram Symbols - Fusion (Except Hybrid): Symbols

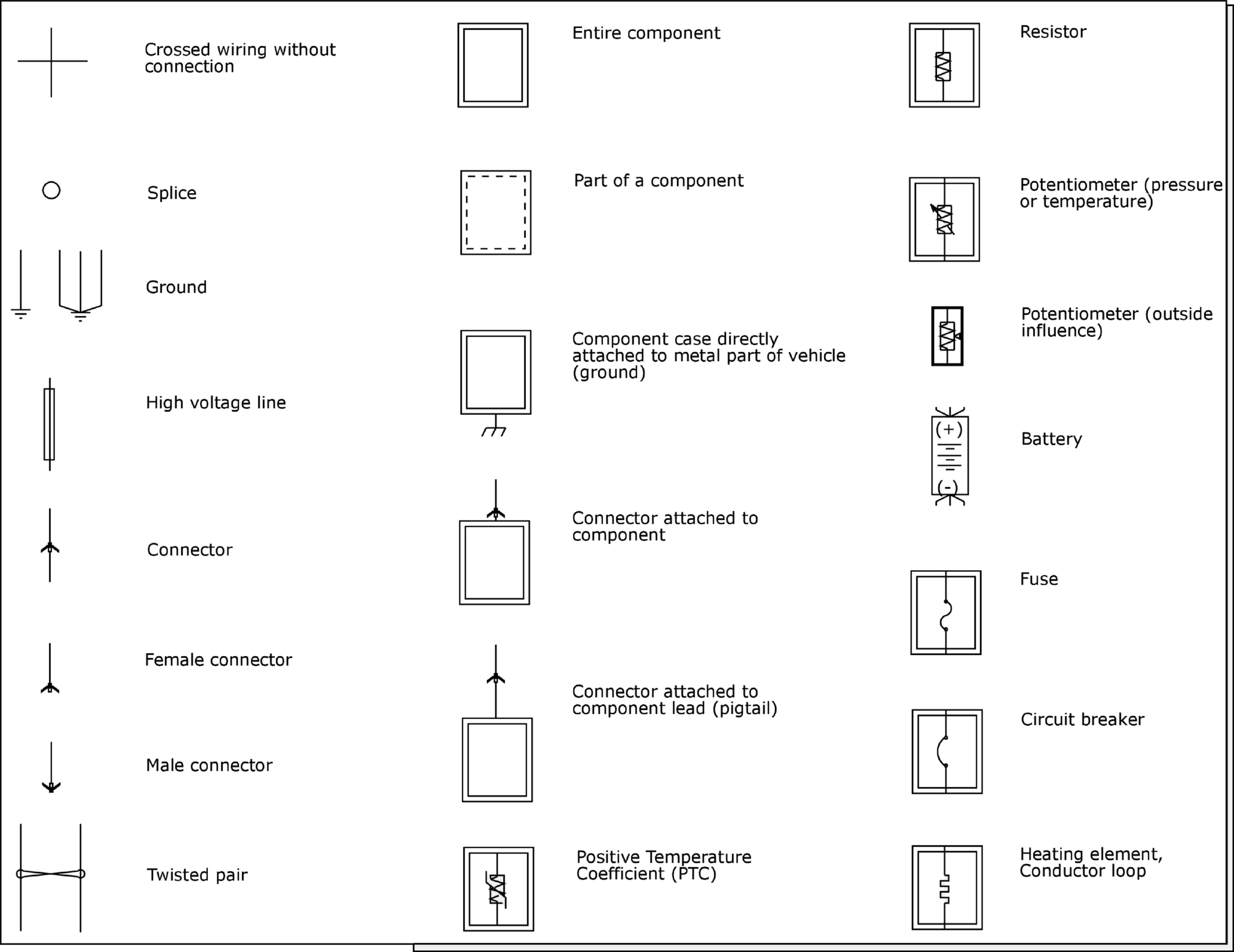

GFDW80104Courtesy of FORD MOTOR COMPANY

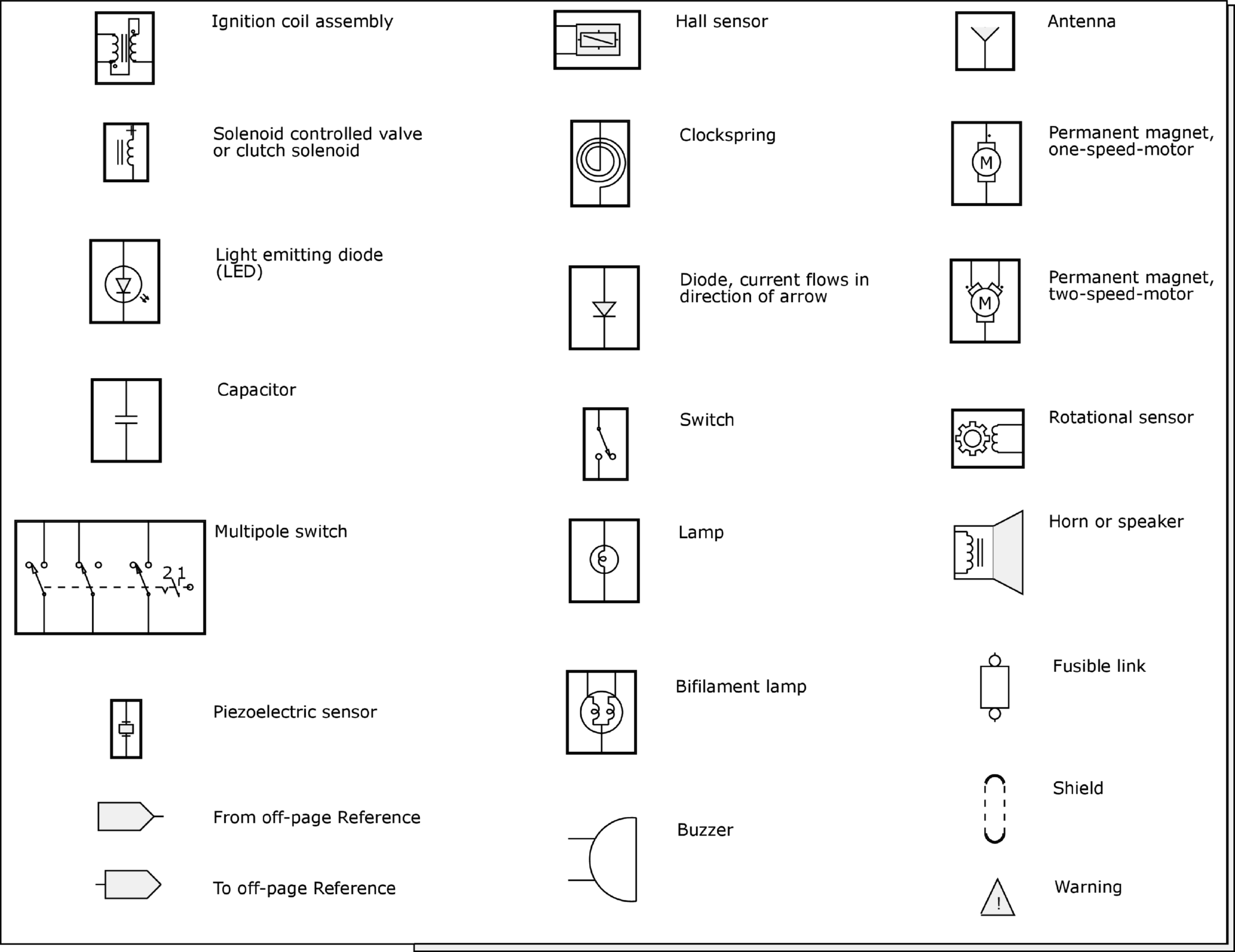

GFDW80105Courtesy of FORD MOTOR COMPANY

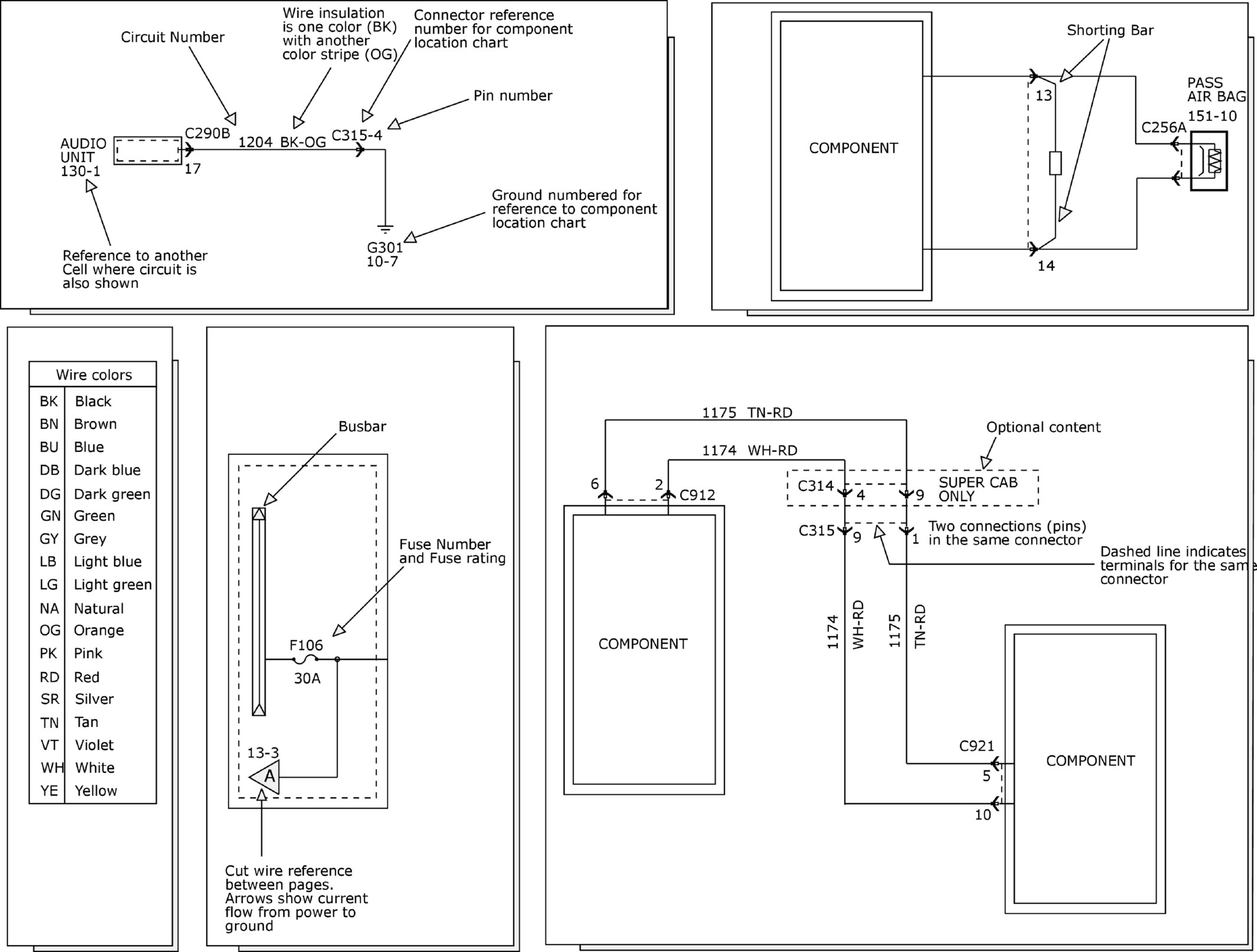

GFDW80106Courtesy of FORD MOTOR COMPANY

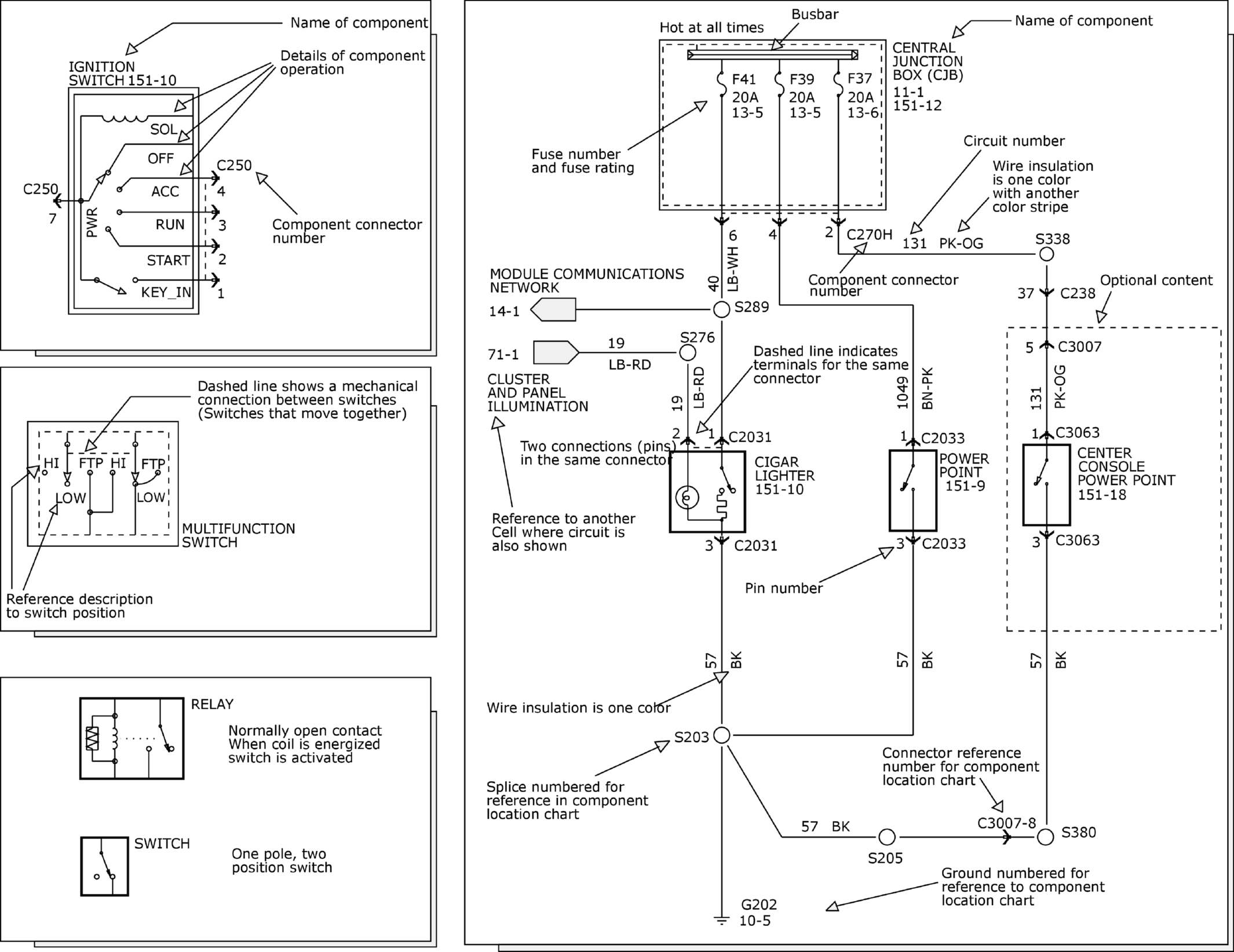

GFDW80107Courtesy of FORD MOTOR COMPANY

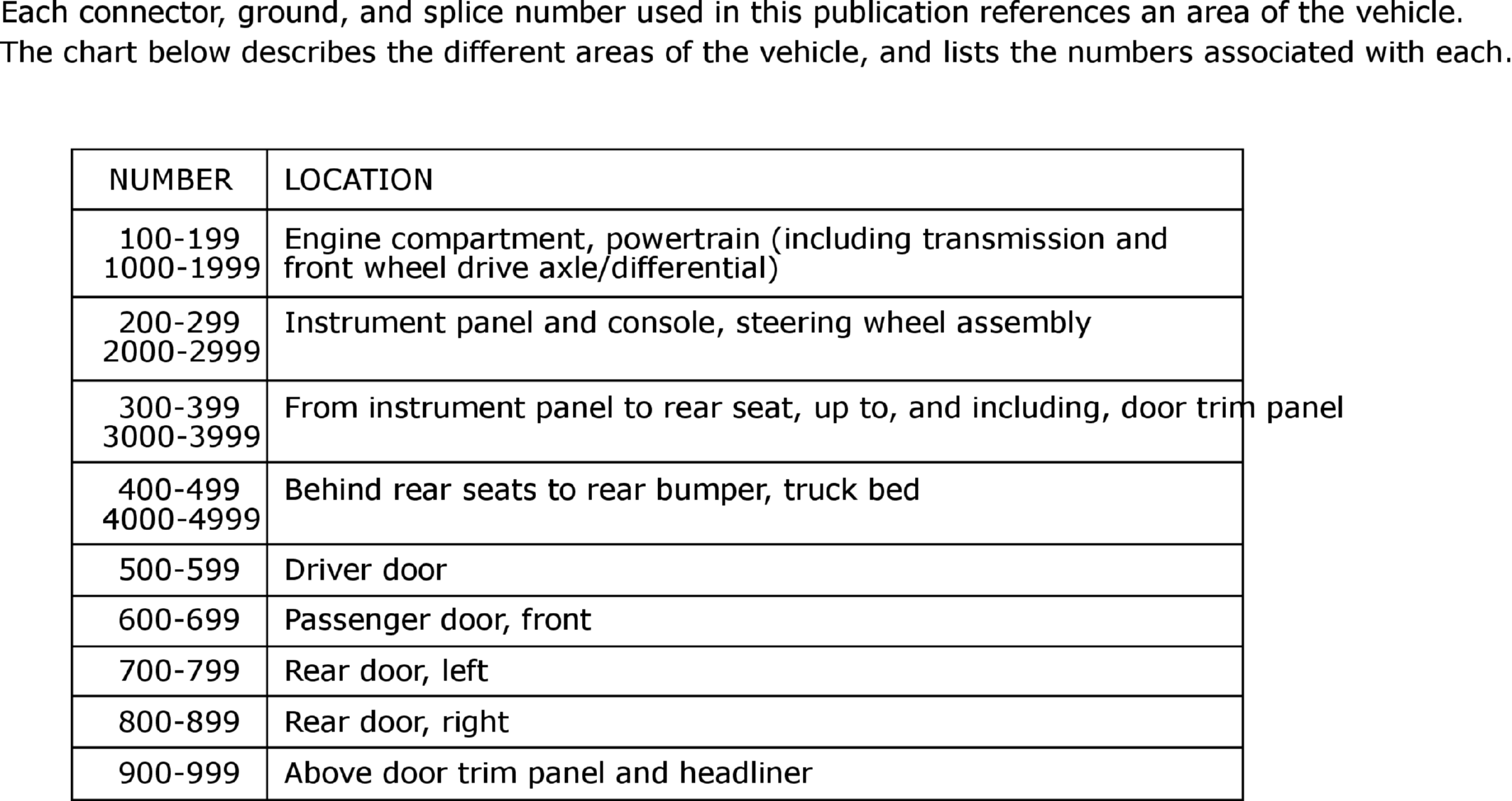

GFDW80108Courtesy of FORD MOTOR COMPANY
