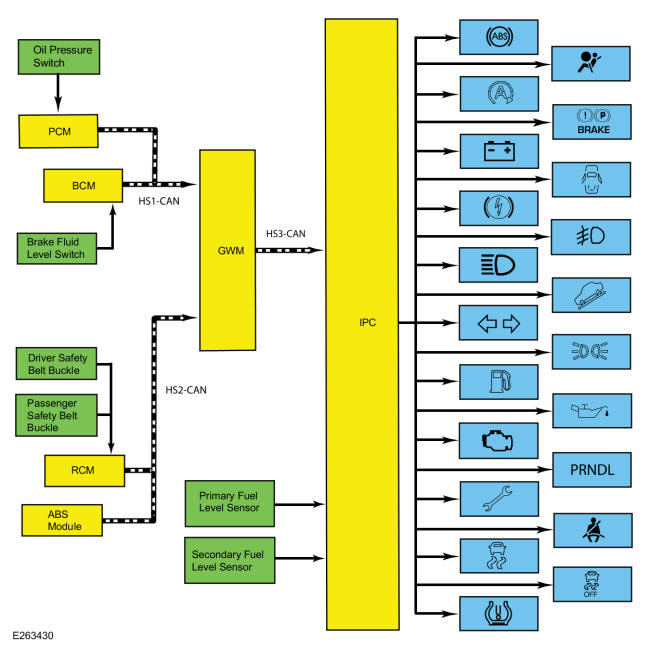

Home >> Ford >> 2018 >> Fusion S >> Repair and Diagnosis >> Electrical >> Gauges >> Information Center - Instrumentation, Message Center And Warning Chimes -- Fusion (Except Hybrid) >> Description And Operation >> Instrument Panel Cluster (IPC) - System Operation and Component Description >> System Operation >> System Diagram - Indicators
