Removal And Installation: Hood: Removal

NOTE: Removal steps in this procedure may contain installation details.
  1. Open hood.
    GFD196140Courtesy of FORD MOTOR COMPANY

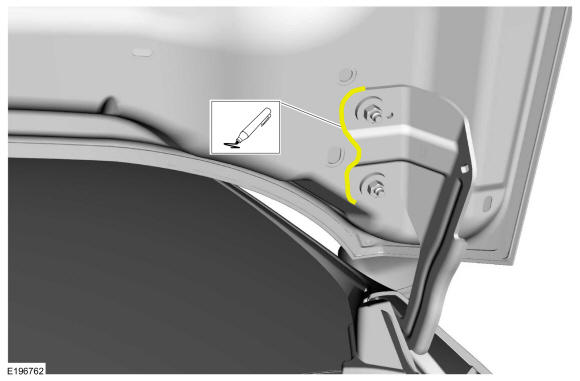

  2. On both sides.

    Index-mark the hood hinge location to aid in hood installation.

    GFD196141Courtesy of FORD MOTOR COMPANY

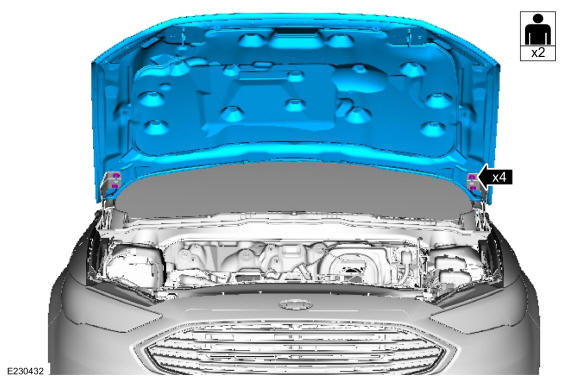

    3. NOTE: An assistant is necessary for the support and removal of the hood.
  3. Remove the nuts and the hood.

    Torque: 18 lb.ft (25 Nm)

    GFD196142Courtesy of FORD MOTOR COMPANY
    4. NOTE: This step is only necessary when installing a new component.

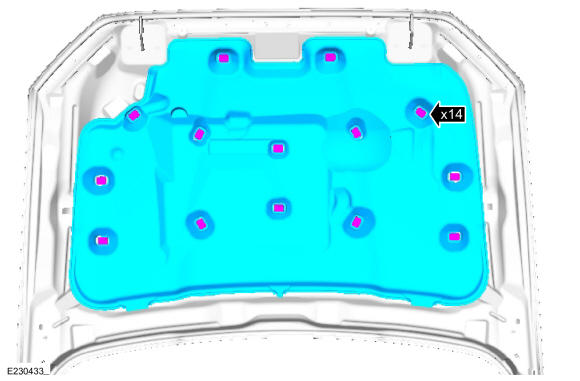

  4. Remove the pin-type retainers and the hood insulation.
    GFD196143Courtesy of FORD MOTOR COMPANY
    5. NOTE: This step is only necessary when installing a new component.

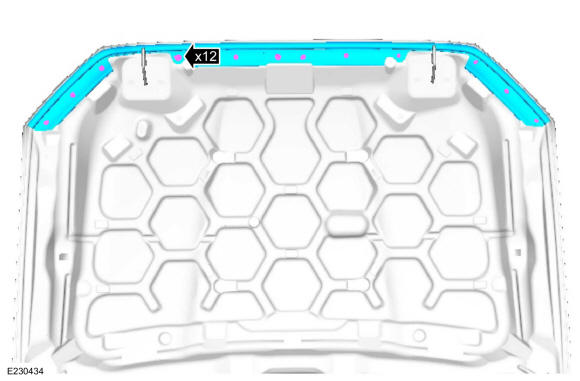

  5. Remove the pin-type retainers and the hood pad assembly.
GFD196144Courtesy of FORD MOTOR COMPANY
