Fender Splash Shield: Removal

NOTE: LH (left-hand) displayed, RH (right-hand) similar.
  1. Remove the wheel and tire.

    Refer to: Wheel and Tire .

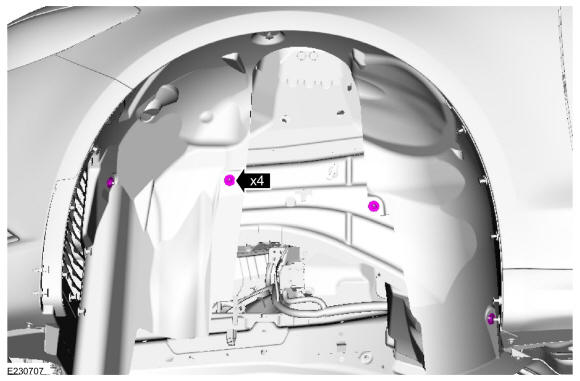

  2. Remove the nuts.
    GFD196134Courtesy of FORD MOTOR COMPANY

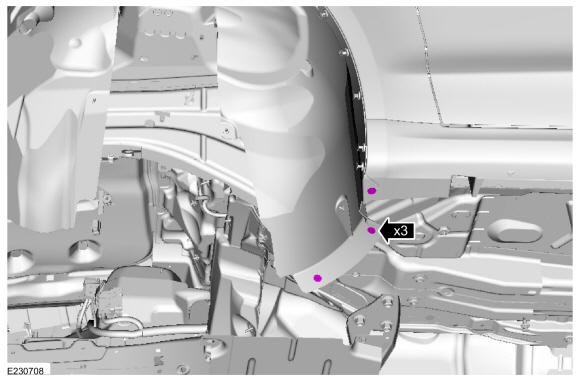

  3. Remove the screws.
    GFD196135Courtesy of FORD MOTOR COMPANY

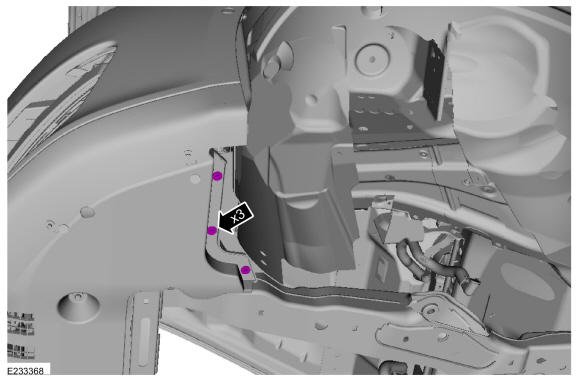

  4. Remove the screws.
    GFD196136Courtesy of FORD MOTOR COMPANY

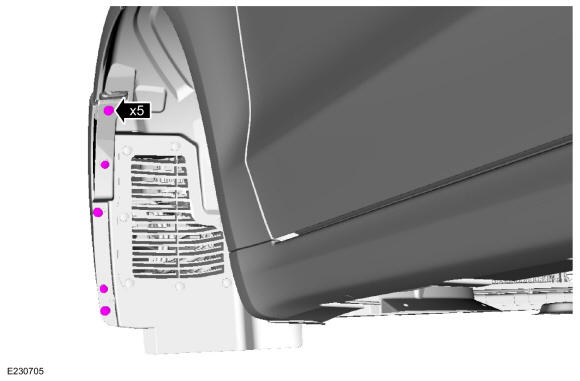

  5. Remove the screws.
    GFD196137Courtesy of FORD MOTOR COMPANY

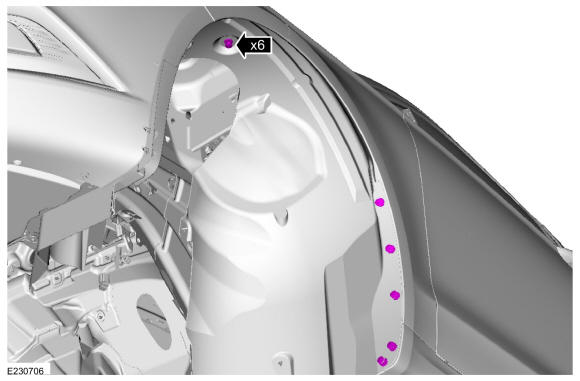

  6. Remove the pin-type retainers.
    GFD196138Courtesy of FORD MOTOR COMPANY

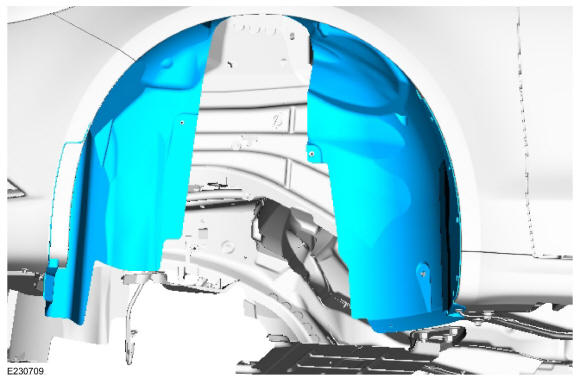

  7. Remove the fender splash shield.
GFD196139Courtesy of FORD MOTOR COMPANY
