Engine Undershield

  1. Remove the screws, grommets and the engine front undershield.
    GFD190251Courtesy of FORD MOTOR COMPANY

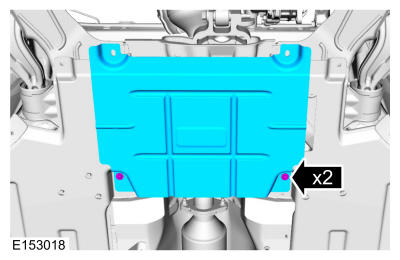

  2. Remove the screws and the engine undershield.
GFD190252Courtesy of FORD MOTOR COMPANY
