Cowl Panel Grille: Removal

  1. Remove the windshield wiper pivot arms. Refer to: Windshield Wiper Pivot Arm .
  2. On both sides.

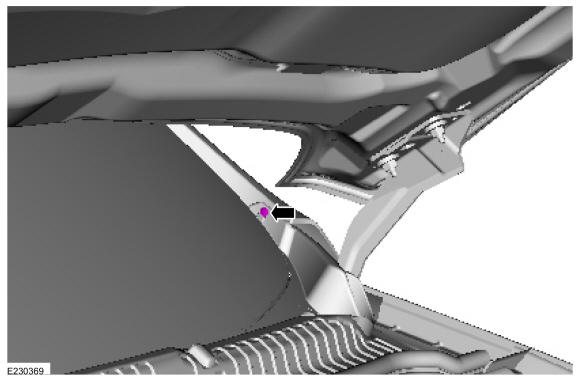

    Remove the pin-type retainer.

    GFD196121Courtesy of FORD MOTOR COMPANY

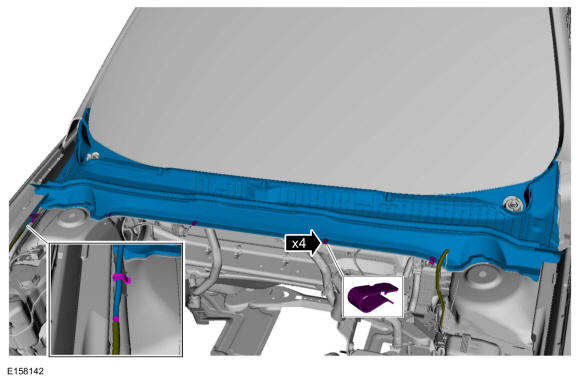

    • Detach the windshield washer hose coupling and the retainer.
    • Remove the clips and the cowl panel grille.
GFD196122Courtesy of FORD MOTOR COMPANY
