Rear Suspension Height Sensor: Removal
NOTE:
Removal steps in this procedure may contain installation details.
- With the vehicle in NEUTRAL, position it on a hoist. Refer to: Jacking and Lifting - Overview .
-

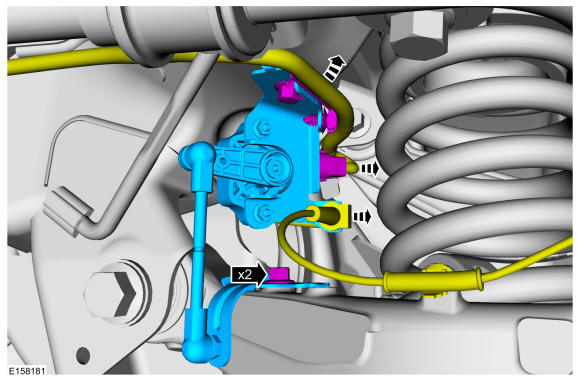

NOTE: RH height sensor assembly displayed, LH similar.
- Disconnect the rear suspension height sensor electrical connector.
- Remove the rear suspension height sensor arm bracket-to-lower arm bolt.
Torque: 177 lb.in (20 Nm)
- Remove the rear suspension height sensor bracket bolt and remove the sensor.
Torque: 177 lb.in (20 Nm)
