Removal And Installation: Radiator: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Remove the cooling fan and shroud. Refer to: Cooling Fan Motor and Shroud .
- Depress the tab and disconnect the coolant tube.

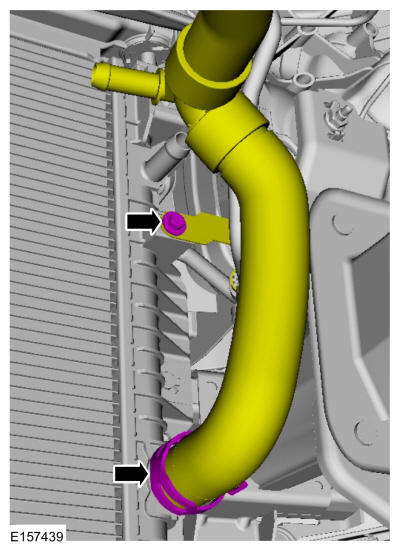

- Remove the bolt, release the clamp and disconnect the lower radiator hose.
Torque: 62 lb.in (7 Nm)

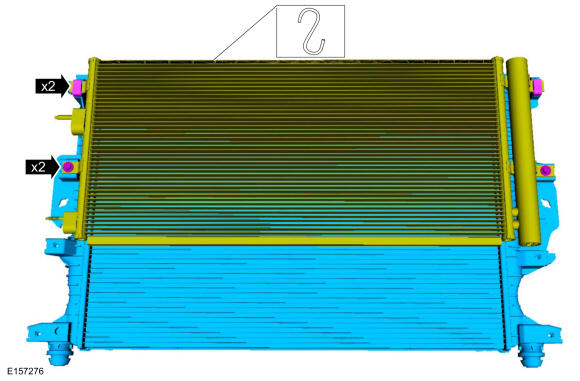

- Support the A/C (air conditioning) condenser, remove the bolts and the radiator from the vehicle.
Torque: 53 lb.in (6 Nm)

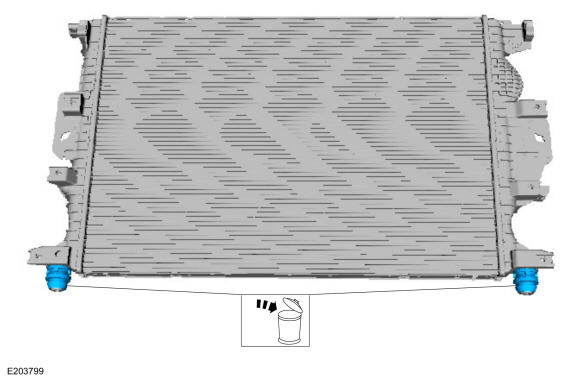

- Remove and discard the radiator lower isolators.
