Cooling Fan Motor and Shroud: Removal
WARNING: This page is about a different variant/trim than selected.
NOTE:
Removal steps in this procedure may contain installation details.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .
- Remove the air cleaner. Refer to: Air Cleaner .

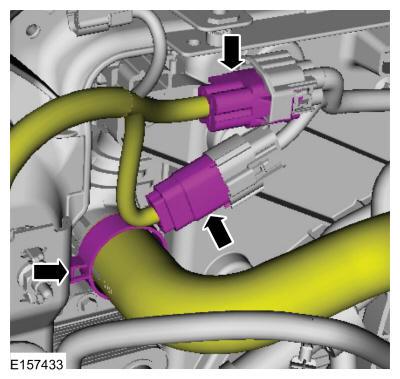

- Release the clamp and disconnect the upper radiator hose and the electrical connectors.
Use the General Equipment: Hose Clamp Remover/Installer

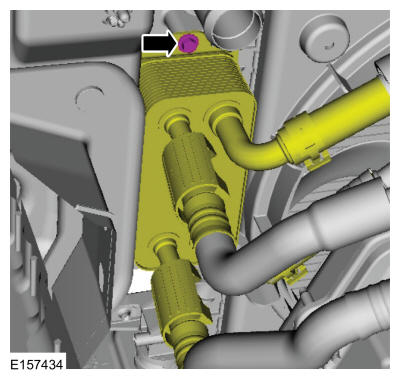

- Remove the bolt and position aside the transmission oil cooler.
Torque: 44 lb.in (5 Nm)

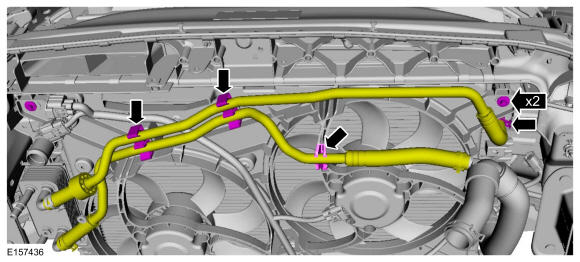

- Release the clamp and disconnect the coolant hose. Remove the bolts and detach the hoses from the retainers.
Use the General Equipment: Hose Clamp Remover/Installer
Torque: 53 lb.in (6 Nm)

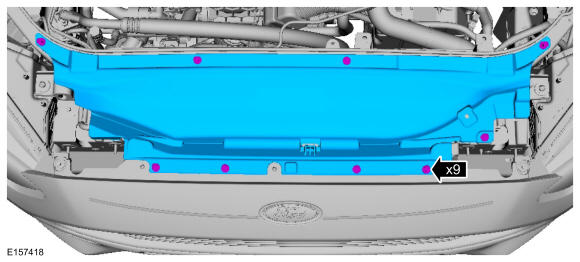

- Remove the pin-type retainers and the radiator sight shield.

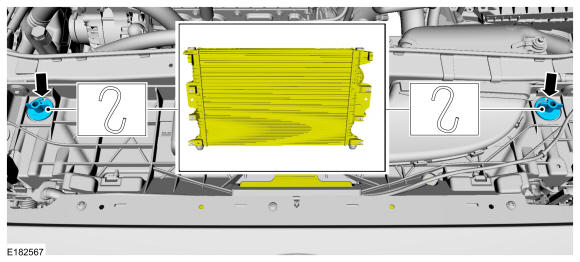

- Support each side of the cooling module. The cooling module must be allowed to drop 1-2 inches to allow clearance for cooling fan removal.

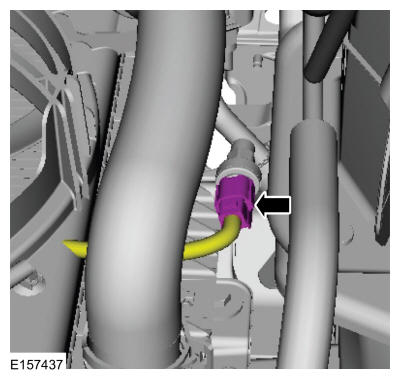

- Disconnect the A/C pressure switch.

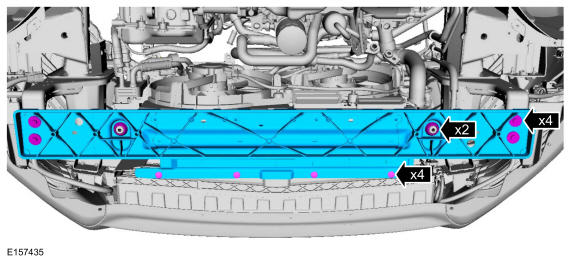

- Remove the retainers and the lower radiator support.
Torque: 18 lb.ft (24 Nm)
-
- Remove the bolt.
Torque: 53 lb.in (6 Nm)

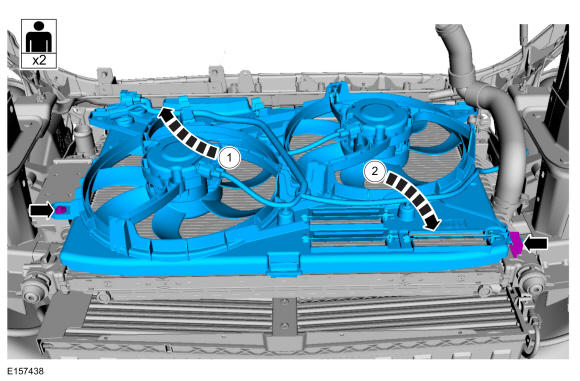

- Raise and remove the cooling fan motor and shroud.
- Remove the bolt.
