Coolant Pump: Removal
WARNING: This page is about a different variant/trim than selected.
-
WARNING: Before beginning any service procedure in this article, refer to Safety Warnings in General Information. Failure to follow this instruction may result in serious personal injury.
Refer to: Engine Cooling System Health and Safety Precautions .
- Drain the cooling system. Refer to: Cooling System Draining, Vacuum Filling and Bleeding .

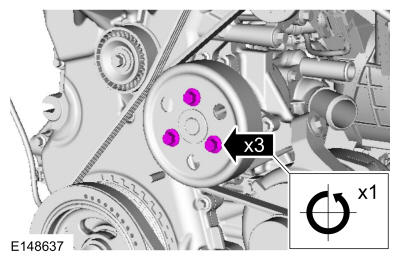

- Loosen the coolant pump pulley bolts.
-
NOTE: Make sure the accessory drive belt is positioned so coolant cannot contaminate the belt.

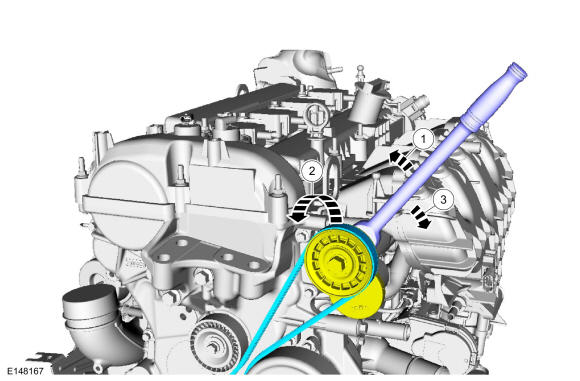

Rotate the accessory drive belt tensioner and remove the accessory drive belt.
-
NOTE: Cover the A/C belt to prevent coolant contamination of the belt.
Completely cover the A/C belt with waterproof plastic.

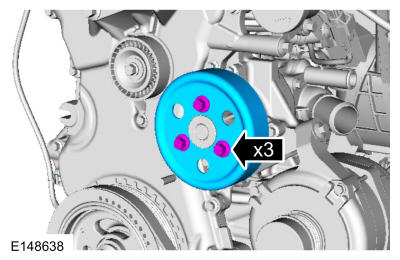

- Remove the bolts and the coolant pump pulley.

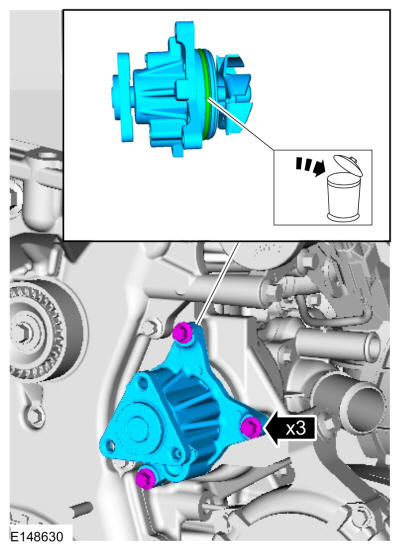

- Remove the bolts and the coolant pump.
