Power Transfer Unit Vent: Installation

WARNING: This page is about a different variant/trim than selected.

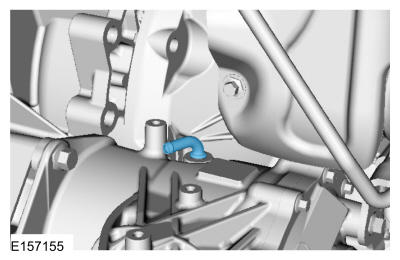

  1. Install a new PTU vent.
    GFD195413Courtesy of FORD MOTOR COMPANY
  2. Connect the PTU vent hose.
    GFD195411Courtesy of FORD MOTOR COMPANY
  3. Install the PTU heat shield and heat shield bolts.

    Torque: 97 lb.in (11 Nm)

    GFD195410Courtesy of FORD MOTOR COMPANY
  4. If equipped. Install the underbody shield.
    GFD195409Courtesy of FORD MOTOR COMPANY
