Intermediate Shaft Seal: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the RH halfshaft. Refer to: Front Halfshaft RH .

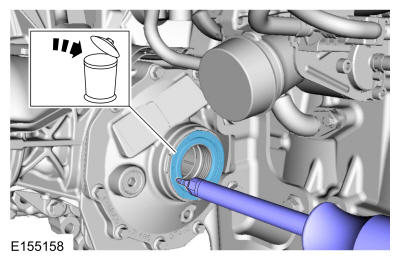

- Using the puller, remove and discard the intermediate shaft seal.
Use the General Equipment: Puller

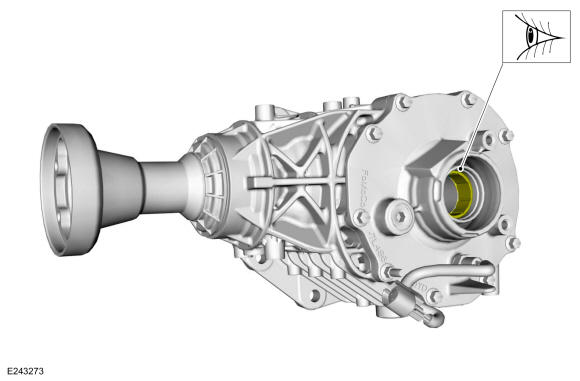

- Inspect the intermediate shaft bushing. Replace if necessary. Refer to: Intermediate Shaft Bushing .
